- Description
- Standard Industrial is 100% Owned, Operated and Manufactured In The U.S.A.
- Built similarly to the DC style press, the DCSS takes yet another step toward providing the most frame strength available on any press on the market. The DCSS has
- enclosed end frames in lieu of the gap therefore allowing the least amount of deflection and the most rigidity. The operator can still however have material or die pass through with windows located in the end frames.
- Built with the same hydraulic system and solid welded construction as the DC, the DCSS gives you another layer of strength for even the most punishing applications. Typically the bed and ram would stay within the frames, but optionally you can order the DCSS with ram and/or bed extensions to extend beyond the frames to give you even more die area.
- The DCSS is also available up to 600 tons and is perfect for center load and off center loads left to right and/or front to back as well as virtually any other press application.
- Self contained hydraulic system with oil cooler and filter
- Full length EIGHT way ram guides
- Solid end frames to provide the most rigid design of any press
- T-slots in the bed and ram
- Windows for material and die pass through
- Two hand control station
- A counterbalance valve for punching and a decompression system for bottoming applications are standard equipment
- Box type ram
- Adjustable shaft packing
- Tonnage Control Completely adjustable open height, stroke and speed change point
- Extremely heavy duty welded frames
- Typical window for model DCSS, shown with air tank for die cushion and an automatic lubrication system (picture above)
- Center/Off-Center/Front to Back and/or Left to Right loading (picture above)
- *For Punching Or Blanking applications De-Rate The Overall Press Tonnage By 1/3
- FOR PRESS APPLICATION AND OPERATION: CLICK HERE
- Manufacturer
- Product Features
- Standard Industrial is 100% Owned, Operated and Manufactured In The U.S.A.
- Built similarly to the DC style press, the DCSS takes yet another step toward providing the most frame strength available on any press on the market. The DCSS has
- enclosed end frames in lieu of the gap therefore allowing the least amount of deflection and the most rigidity. The operator can still however have material or die pass through with windows located in the end frames.
- Built with the same hydraulic system and solid welded construction as the DC, the DCSS gives you another layer of strength for even the most punishing applications. Typically the bed and ram would stay within the frames, but optionally you can order the DCSS with ram and/or bed extensions to extend beyond the frames to give you even more die area.
- The DCSS is also available up to 600 tons and is perfect for center load and off center loads left to right and/or front to back as well as virtually any other press application.
- Self contained hydraulic system with oil cooler and filter
- Full length EIGHT way ram guides
- Solid end frames to provide the most rigid design of any press
- T-slots in the bed and ram
- Windows for material and die pass through
- Two hand control station
- A counterbalance valve for punching and a decompression system for bottoming applications are standard equipment
- Box type ram
- Adjustable shaft packing
- Tonnage Control Completely adjustable open height, stroke and speed change point
- Extremely heavy duty welded frames
- Typical window for model DCSS, shown with air tank for die cushion and an automatic lubrication system (picture above)
- Center/Off-Center/Front to Back and/or Left to Right loading (picture above)
- *For Punching Or Blanking applications De-Rate The Overall Press Tonnage By 1/3
- FOR PRESS APPLICATION AND OPERATION: CLICK HERE
- 5 Year hydraulic and electric parts and limited labor warranty covering every standard component on the press
- (2) T-slots in the bed and (2) in the ram
- All parts on every Standard Industrial machine are available from your local suppliers and/or the factory
- Complete parts manual with all parts on machine listed as well as original manufacturers part number to provide you with easier part replacement
- Complete low pressure (under 3,000 p.s.i.) hydraulic systems with overload protection as well as fan/radiator type oil cooler, continuous filtration and manifold mounted valves to provide you with the least amount of tubing and hoses which mean less maintenance and downtime
- Electric disconnect with magnetic starter-Ready to accept power.
- A Decompression system with adjustable timer used to reduce shock at the end of each ram stroke during a bottoming operation
- Full tonnage throughout the stroke
- A Counterbalance system used to reduce shock to the system during punching applications and for safety to prevent ram free-fall
- Positive single cylinder drive designs for all model presses-Direct hydraulic for model AP, DC and DCSS and hydra-mechanical for model AM
- All presses come standard with a mechanical in-line depth stop and tonnage control
- High speed approach, rapid return and low speed press limits controlled via a positive mechanical depth stop assembly, all fully adjustable
- Shock-less quiet operation
- Lube fittings at all bearing points
- Pilot operated check valve to hold ram in position when ram is stationary
- Full power throughout stroke
- Anti tie down switches to actuate press
- All liquid tight electrical components
- Hydraulic pressure tonnage control to vary tonnage output
- Two hand control station mounted on a portable pedestal for model AP and AM and at the operator station for the model DC and DCSS. Optionally available in varying and multiple locations per your application.
- Precision machining & attention to detail are standard on all presses
- Incredibly simple and versatile hydraulic and electric controls
- Specifications
- Options/Accessories
- Programmable logic controller (PLC) to control the base functions of the press including multiple job storage, stroke length, open height point, tonnage, decompression, ram delay/dwell at bottom of stroke (not under tonnage A mechanical standard to control limits of the press and is also included even with PLC.
- Light curtain safety barrier system provides infra-red beam during operation and shuts machi Base op front of press only-other optional curtains can be quoted per customer specification.
- Interlocking side barriers as physical barriers-can be used in conjunction with light curtains or alone
- Special single color paint
- Dwell under tonnage sustains desired tonnage for a set amount of time - typically used for manufacturers of plastics or fiberglass products
- Custom or special controls per user specifications
- Remote auto cycle for automated operations
- Special machining of bed and/or ram
- Removable bolster plates for bed
- Die cushions for drawing and/or part ejection
- Ejector cylinders for drops or parts
- Scrap chutes or knockouts to remove drops or parts
- Stroke dampers for punching or blanking operations allow more overall dimensions to increase
- Quick change tooling components such as air actuated die lifters and/or power die removal systems-increase productivity by decreasing die change and set-up time
- High speed or special hydraulic systems
- T-slots in bed and ram (2 are standard in bed and ram)
- Automatic lubrication systems to decrease maintenance operations
- Safety gear lock systems with interlocking posts provide even more operator safety (Model AP only)
- Additional open height (NOTE: Does not automatically increase stroke length)
- Additional stroke for Model AP Four column press
(NOTE: Does not automatically increase open height) - Low speed retract allows the ram to return slower than normal
- Pressure ram reversal allows the ram to return when a particular pressure is achieved.
- Ram delay at bottom of stroke (not under tonnage)
- Coil line processing and material feeding equipment
- Custom and standard die sets
- The model AM, DC and DCSS can have longer open heights but are limited to a maximum of 12" stroke as an option
- The model AM is available in longer lengths but not shorter lengths
- W-Technologies stroke dampers allow more punching and blanking capacity without harming hydraulic system
- Custom Freight

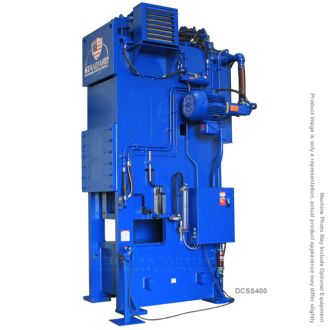

STANDARD INDUSTRIAL 40 - 600 Ton DCSS Straight Side Presses
ITEM: 40 - 600 Ton DCSS Straight Side Presses
MANUFACTURER: STANDARD INDUSTRIAL
MODEL: DCSS SERIES
MODEL# DCSS-40 / DCSS-100 / DCSS-150 / DCSS-200 / DCSS-250 / DCSS-300 / DCSS-400 / DCSS-500 / DCSS-600
Manufacturer:
Standard Industrial
Machine Type
Machine Category:
Presses
Machine Sub-Category:
Straight Side
Metalworking
Pressure:
40+ Tons
STANDARD EQUIPMENT:
MODEL
|
DCSS40
|
DCSS100
|
DCSS150
|
DCSS200
|
DCSS250
|
|
Forming Tons
|
40
|
100
|
150
|
200
|
250
|
|
Pinching Tons
|
26
|
66
|
100
|
130
|
165
|
|
Ram Size
|
15" x 15"
|
16" x 19"
|
16" x 19"
|
20" x 23"
|
22" x 25"
|
|
Bed Size
|
18" x 18"
|
18" x 22"
|
24" x 22"
|
24" x 26"
|
24" x 28"
|
|
Bed Height
|
36"
|
38"
|
||||
Window
|
24"
|
|||||
Bet. Housings
|
20"
|
24"
|
28"
|
30"
|
||
Open Height
|
18"
|
22"
|
23"
|
24"
|
||
Stroke
|
10"
|
12"
|
||||
Closed Height
|
8"
|
12"
|
11"
|
12"
|
||
App. Height
|
114"
|
125"
|
135"
|
150"
|
||
App. Weight (Lbs.)
|
6,000
|
18,000
|
22,000
|
27,000
|
30,000
|
|
Horsepower
|
15
|
25
|
30
|
50
|
||
Approach Speed
|
210
|
180
|
140
|
108
|
235
|
|
Pressing Speed
|
26
|
24
|
25
|
29
|
||
Return Speed
|
310
|
280
|
210
|
160
|
153
|
|
Clear Under Bed
|
Left to Right
|
19"
|
22"
|
25"
|
27"
|
|
Front to Back
|
12"
|
16"
|
MODEL
|
DCSS300
|
DCSS400
|
DCSS500
|
DCSS600
|
|
Forming Tons
|
300
|
400
|
500
|
600
|
|
Pinching Tons
|
200
|
260
|
330
|
400
|
|
Ram Size
|
24" x 29"
|
26" x 35"
|
32" x 37"
|
||
Bed Size
|
24" x 32"
|
30" x 32"
|
32" x 40"
|
||
Bed Height
|
38"
|
41"
|
|||
Window
|
24"
|
||||
Bet. Housings
|
34"
|
40"
|
42"
|
||
Open Height
|
24"
|
26"
|
|||
Stroke
|
12"
|
||||
Closed Height
|
12"
|
14"
|
|||
App. Height
|
160"
|
163"
|
165"
|
180"
|
|
App. Weight (Lbs.)
|
42,000
|
56,000
|
70,000
|
88,000
|
|
Horsepower
|
50
|
60
|
75
|
||
Approach Speed
|
175
|
180
|
146
|
125
|
|
Pressing Speed
|
27
|
22
|
23
|
||
Return Speed
|
140
|
174
|
162
|
100
|
|
Clear Under Bed
|
Left to Right
|
31"
|
36"
|
||
Front to Back
|
14"
|
18"
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – STANDARD Parts & Limited Onsite Labor
