- Standard Industrial is 100% Owned, Operated and Manufactured In The U.S.A.

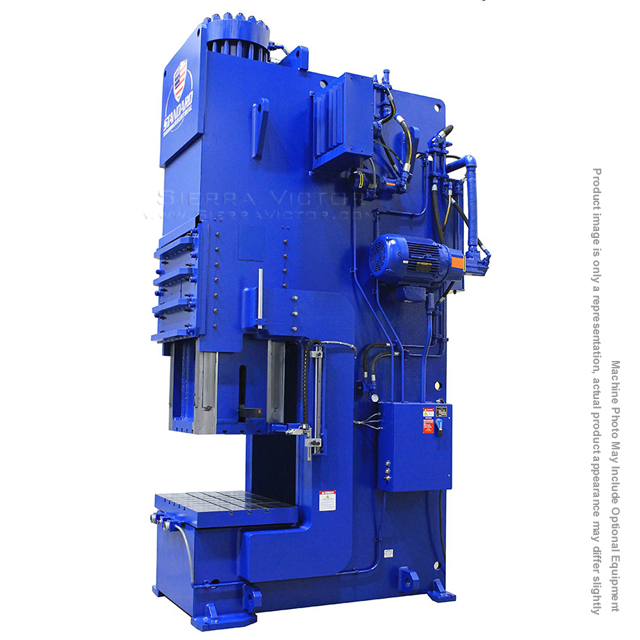

- The model DC is an exceptionally heavy duty C-frame style press that is specifically designed to handle virtually any application. It is perfect for applications requiring off-center and center-loads and un-even and even tonnages across the bed. Available in tonnages from 40 up to 600 tons (larger tonnages available with special quote). It can be used for metalworking, plastics, fabrics and many other materials as well.
- The model DC has an open gap frame and an extremely heavy duty box-guided ram with 8 way gibbing. This combination is the most effective way to guide the ram and provide the precision most facilities require. The ram is powered by a very efficient hydraulic power plant utilizing low pressure (under 3,000 psi) to guarantee long life of the system. This system powers the single machine tool quality cylinder shaft made of turned ground and polished chrome.
- A Hydraulic press of this type offers full tonnage throughout the stroke and 3 ram speeds (fast approach, slow press and fast return). This is useful for a variety of work such as forming, punching, drawing plus any other even tonnage application. With exceptional speeds and bed sizes as well long stroke and open height, you will find the base machine to fit most customer requirements. The model DC comes with (2) 5/8" t-slots machined in the bed and ram and is available with additional slots and/or drilled and tapped holes added for tool mounting. There are a wide variety of options to choose from as well to customize the press to your exact needs.
- 100% made in the USA with our unmatched 5 year parts warranty plus a lifetime of readily available parts all from your local suppliers. You will never have another "orphaned" machine due to an overseas manufacturer who can’t get you parts or a domestic manufacturer with proprietary parts that forces you to buy everything from them. With Standard Industrial you will always be able to get the part you need for the lifetime of the machine from any number of sources available to you.
- Manufacturer
- Product Features
- Standard Industrial is 100% Owned, Operated and Manufactured In The U.S.A.
- The model DC is an exceptionally heavy duty C-frame style press that is specifically designed to handle virtually any application. It is perfect for applications requiring off-center and center-loads and un-even and even tonnages across the bed. Available in tonnages from 40 up to 600 tons (larger tonnages available with special quote). It can be used for metalworking, plastics, fabrics and many other materials as well.
- The model DC has an open gap frame and an extremely heavy duty box-guided ram with 8 way gibbing. This combination is the most effective way to guide the ram and provide the precision most facilities require. The ram is powered by a very efficient hydraulic power plant utilizing low pressure (under 3,000 psi) to guarantee long life of the system. This system powers the single machine tool quality cylinder shaft made of turned ground and polished chrome.
- A Hydraulic press of this type offers full tonnage throughout the stroke and 3 ram speeds (fast approach, slow press and fast return). This is useful for a variety of work such as forming, punching, drawing plus any other even tonnage application. With exceptional speeds and bed sizes as well long stroke and open height, you will find the base machine to fit most customer requirements. The model DC comes with (2) 5/8" t-slots machined in the bed and ram and is available with additional slots and/or drilled and tapped holes added for tool mounting. There are a wide variety of options to choose from as well to customize the press to your exact needs.
- 100% made in the USA with our unmatched 5 year parts warranty plus a lifetime of readily available parts all from your local suppliers. You will never have another "orphaned" machine due to an overseas manufacturer who can’t get you parts or a domestic manufacturer with proprietary parts that forces you to buy everything from them. With Standard Industrial you will always be able to get the part you need for the lifetime of the machine from any number of sources available to you.
- All Components Readily Available From Your Local Suppliers
- Dependable Support from the people who make the machine
- Typical 20-30 Year Lifetime
- Hydraulic Tonnage Control
- Full Tonnage throughout Stroke
- Counterbalance valve for Punching
- Lifetime Unlimited telephone support at no charge
- Magnetic starter with over and under voltage protection with disconnect switch
- JIC type electrical components in NEMA 12 enclosures
- 120 volt control circuit
- Two hand controls for operator safety
- ANSI B11.2 standards
- 230-3-60 or 460-3-60 electrics through 40 h.p., for 50 h.p. and above 460 v. is standard
- All steel, extremely heavy duty construction
- All electrics and hydraulics including oil filter are included as standard
- Simple mechanical limit switches to control open height, speed change point and lower limit actuated by 2 hand palm button control.

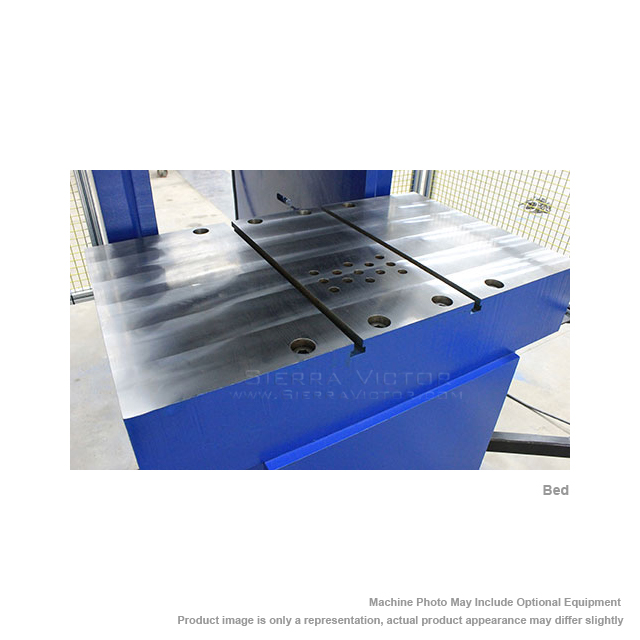

- 3/4"-10 N.C. drilled and tapped holes in the bed are included
- This style press has superior ability to withstand off-center loading both front to back and left to right.
- Self-contained hydraulic system with oil cooler and filter
- Full length EIGHT way ram guides
- T-slots in the bed and ram
- Two hand control station
- A counterbalance valve for punching and a decompression system for bottoming applications are standard equipment on all Standard Industrial presses
- Machine tool quality direct hydraulic cylinder
- Box type ram
- Adjustable shaft packing
- Tonnage control
- Completely adjustable open height, stroke and speed change point
- Extremely heavy duty welded frames
- APPLICATIONS:
- Embossing
- Drawing
- Stamping
- Die Try-out
- Sizing
- Rubber Pad Forming
- Forming
- Swedging
- Trimming
- Punching (Due to the overall weight of the ram and the drive system, when punching or blanking with a four column press, you should limit your overall tonnage to 50% unless stroke dampers are used.)
- Blanking (Due to the overall weight of the ram and the drive system, when punching or blanking with a four column press, you should limit your overall tonnage to 50% unless stroke dampers are used.)
- FOR PRESS APPLICATION AND OPERATION: CLICK HERE
- 5 Year hydraulic and electric parts and limited labor warranty covering every standard component on the press
- (2) T-slots in the bed and (2) in the ram
- All parts on every Standard Industrial machine are available from your local suppliers and/or the factory
- Complete parts manual with all parts on machine listed as well as original manufacturers part number to provide you with easier part replacement
- Complete low pressure (under 3,000 p.s.i.) hydraulic systems with overload protection as well as fan/radiator type oil cooler, continuous filtration and manifold mounted valves to provide you with the least amount of tubing and hoses which mean less maintenance and downtime
- Electric disconnect with magnetic starter-Ready to accept power.
- A Decompression system with adjustable timer used to reduce shock at the end of each ram stroke during a bottoming operation
- Full tonnage throughout the stroke
- A Counterbalance system used to reduce shock to the system during punching applications and for safety to prevent ram free-fall
- Positive single cylinder drive designs for all model presses-Direct hydraulic for model AP, DC and DCSS and hydra-mechanical for model AM
- All presses come standard with a mechanical in-line depth stop and tonnage control
- High speed approach, rapid return and low speed press limits controlled via a positive mechanical depth stop assembly, all fully adjustable
- Shock-less quiet operation
- Lube fittings at all bearing points
- Pilot operated check valve to hold ram in position when ram is stationary
- Full power throughout stroke
- Anti tie down switches to actuate press
- All liquid tight electrical components
- Hydraulic pressure tonnage control to vary tonnage output
- Two hand control station mounted on a portable pedestal for model AP and AM and at the operator station for the model DC and DCSS. Optionally available in varying and multiple locations per your application.
- Precision machining & attention to detail are standard on all presses
- Incredibly simple and versatile hydraulic and electric controls
- Specifications

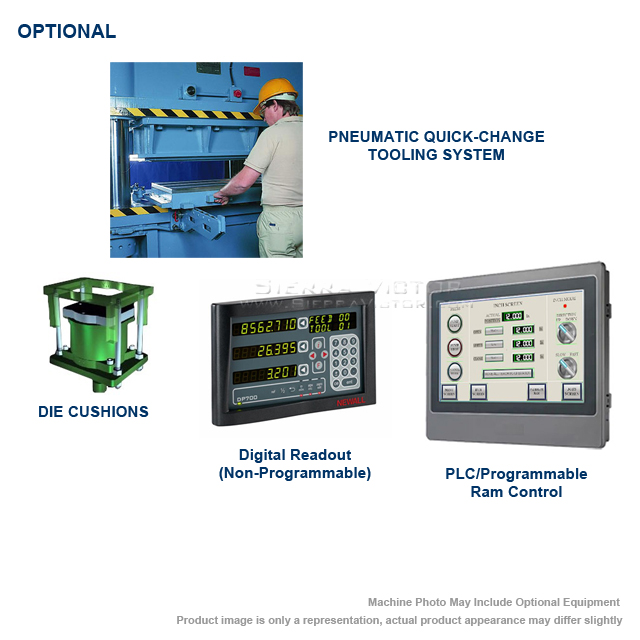

- Options/Accessories
- Optional AUTOMEC CNC Control
- Custom Freight
STANDARD INDUSTRIAL 40 - 600 Ton C-Frame Presses
ITEM: 40 - 600 Ton C-Frame Presses
MANUFACTURER: STANDARD INDUSTRIAL
MODEL: DC SERIES
MODEL# DC-40 / DC-100 / DC-150 / DC-200 / DC-250 / DC-300 / DC-400 / DC-500 / DC-600
Manufacturer:
Standard Industrial
Machine Type
Machine Category:
Presses
Machine Sub-Category:
C-Frame
Metalworking
Pressure:
40+ Tons
STANDARD EQUIPMENT:
MODEL
|
DC40
|
DC100
|

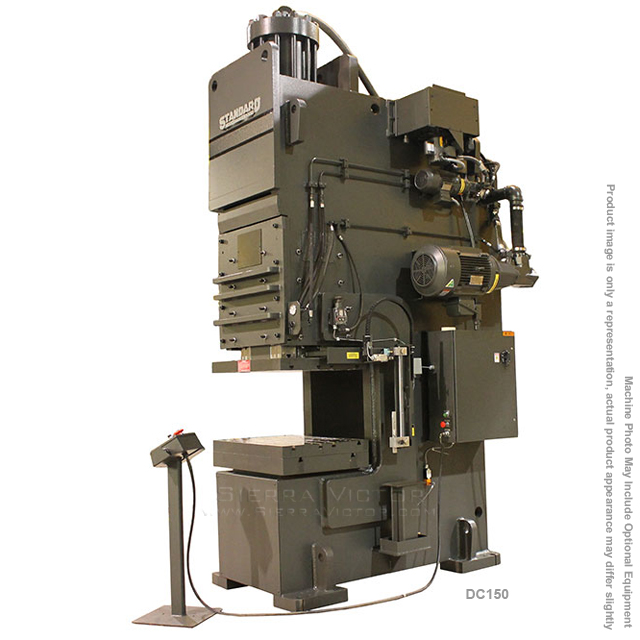

DC150
|
DC200
|
DC250
|
Forming Tons
|
40
|
100
|
150
|
200
|
250
|
Pinching Tons
|
26
|
66
|
100
|
130
|
165
|
Ram Size
|
15" x 15"
|
16" x 19"
|
16" x 19"
|
20" x 23"
|
22" x 25"
|
Bed Size
|
18" x 24"
|
18" x 34"
|
24" x 34"
|
24" x 38"
|
24" x 40"
|
Throat Depth
|
10"
|
13"
|
14"
|
||
Between Housings
|
20"
|
24"
|
28"
|
30"
|
|
Open Height
|
18"
|
22"
|
24"
|
||
Stroke
|
10"
|
12"
|
|||
Closed Height
|
8"
|
12"
|
12"
|
||
App. Weight (Lbs.)
|
6,000
|
18,000
|
22,000
|
27,000
|
30,000
|
Speed Approach-Press-Return
|
210-26-310 in/min
|
180-24-280 in/min
|
140-25-210 in/min
|
108-25-160 in/min
|
235-29-153 in/min
|
MODEL
|

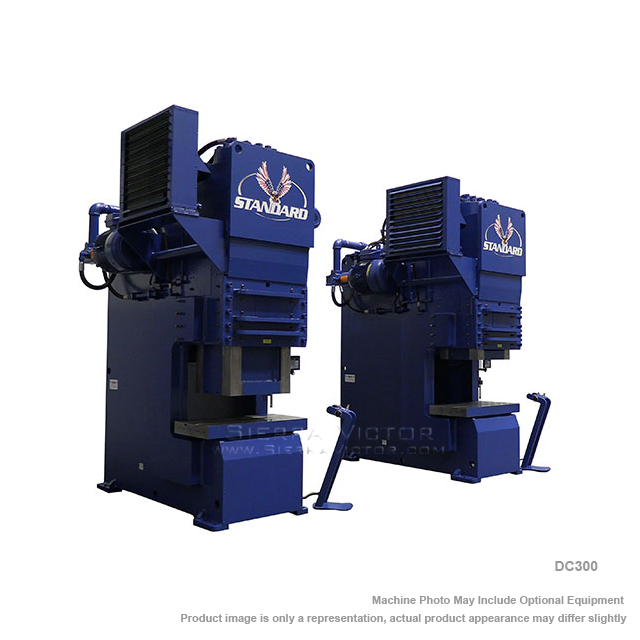

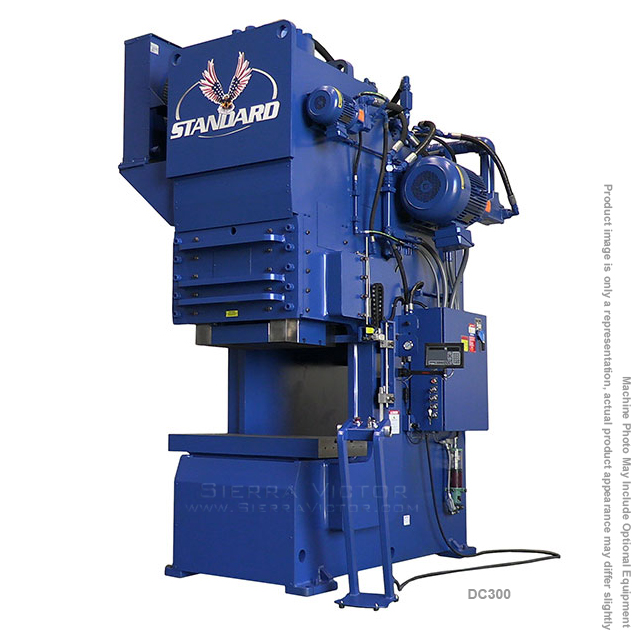

DC300
|

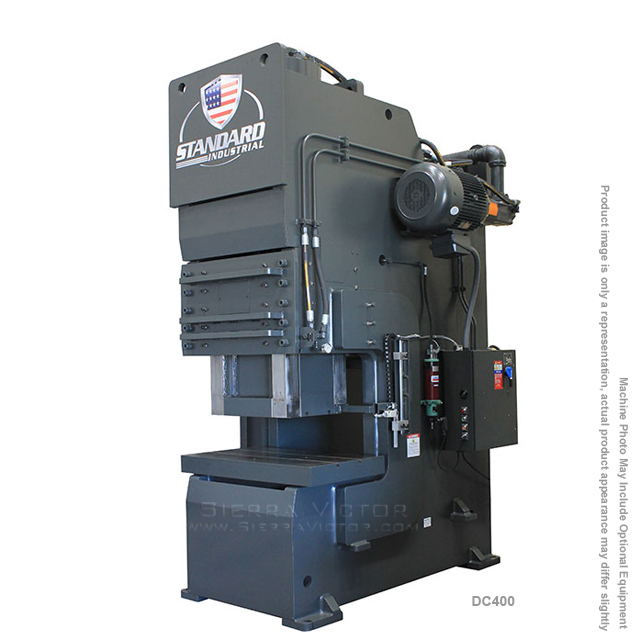

DC400
|
DC500
|
DC600
|
Forming Tons
|
300
|
400
|
500
|
600
|
Pinching Tons
|
200
|
260
|
330
|
400
|
Ram Size
|
24" x 29"
|
26" x 35"
|
32" x 37"
|
|
Bed Size
|
24" x 48"
|
30" x 50"
|
32" x 60"
|
|
Throat Depth
|
14"
|
16"
|
||
Between Housings
|
34"
|
40"
|
42"
|
|
Open Height
|
24"
|
26"
|
||
Stroke
|
12"
|
|||
Closed Height
|
12"
|
14"
|
||
App. Weight (Lbs.)
|
42,000
|
56,000
|
70,000
|
88,000
|
Speed Approach-Press-Return
|
175-27-140 in/min
|
180-22-174 in/min
|
146-22-162 in/min
|
125-23-100 in/min
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – STANDARD Parts & Limited Onsite Labor
