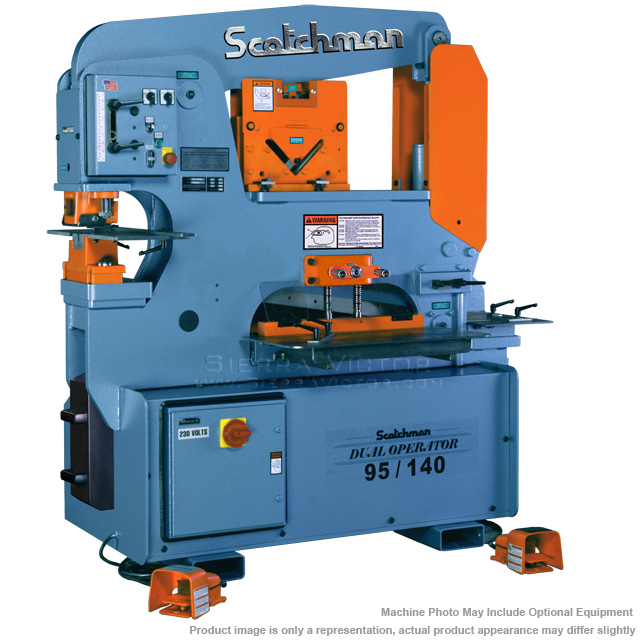

SCOTCHMAN 95 Ton Dual Operator Hydraulic Ironworker DO 95/140-24M

• Scotchman offers several American-made Dual Operator Ironworker Models ranging from 70 to 150 tons of punching power. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. The Tool Table Design and the wide variety of optional tools available give the Scotchman Dual Operator Ironworker Machines more versatility and flexibility than any other ironworker machine on the market.
• The two main features that set Scotchman’s Dual Operator Ironworkers apart from others are:
  • 1) On all non-Scotchman dual operator models, the punch station must be used as one of the two functions. On the Scotchman, the punch can be used as one if needed, but it is not required.
  • 2) The Scotchman dual operators are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity.
• The Scotchman DO 95/140/24M dual operator ironworker has four built-in features including a 95-ton punch (1-3/16” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 8”, 3/8” x 24”) and a rectangle notcher. Combining these features with the large tool table for quick change of optional tooling plus the best in the business, 3-year parts warranty makes DO 95/140/24M hydraulic ironworker an industry leader.
• Dual Operator, 5 Stations
• Dual Operator allows for Two Operators to Work at the Same Time at Full Capacity
• 95 Ton Punch Station (1-3/16" in 1")
• Keyed Punch Ram for Safety
• 9" Throat Depth
• Punch Gauging Table with Fence and Scale
• Die Holder Complete with 2" Die Insert
• Punch Nut with Wrench & Stripper
• Adjustable Swing-Away Stripper
• One Round Punch & Die: Max. Dia. 1-1/4"
• Punch Jog Control
• Two Adjustable Electric Stroke Controls with Scale
• Two Electric Remote Foot Pedals
• Two 2-Stage Hydraulic Pumps
• Two Valves
• Angle Shear Capacity 6" x 6" x 1/2" at 90°
• Rectangle Notcher 3" x 4" x 1/2"
• Notcher Table with Guides
• 140 Ton, 24" Flat Bar Shear with Sabre Blade (1" x 8", 3/8" x 24")
• Shear Table with Miter Fence
• Tool Table Work Area
• Slug Receptacles
• Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
• 230/460 Volt /3 Phase Electrics (must specify voltage)
• All Guards Necessary to Comply with ANSI B 11-5 Standards
• Forklift Accommodations
• Made in the USA
