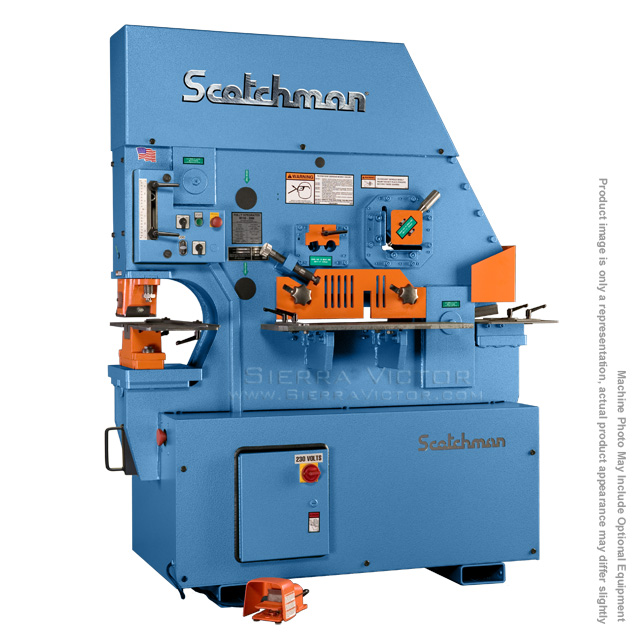

- Have you ever heard the phrase “Sleeping Giant”? Scotchman Industries’ “Sleeping Giant” is our fully-integrated, FI 8510-20M hydraulic ironworker. Pound for pound, ton for ton, and dollar for dollar, there is nothing on the market that compares to this ironworker machine.
- This machine has five built-in work stations that include: 85 tons of punching capacity (1-1/16” in 1” 65,000 tensile mild steel), 20” wide flat bar shear (capable of shearing 1” x 12” and 3/4” x 20”), 6” x 6” x 1/2” crop off angle shear, round and square, solid rod shear and a 3” x 5” x 1/2” rectangle notcher.
- The FI 8510-20M hydraulic ironworker is 100% American-made and backed by Scotchman’s, best in the business, 3-year parts warranty.
- Single Operator, 5 Stations
- 85 Ton Punch Station (1-1/16" in 1")
- Keyed Punch Ram for Safety
- 10" Throat Depth
- Punch Gauging Table with Fence & Scale
- Die Holder Complete with 2" Die Insert
- Punch Nut with Wrench
- Adjustable Swing-Away Stripper
- One Round Punch & Die: Max. Dia. 1-1/4"
- Punch Jog Control
- Adjustable Electric Stroke Control with Scale
- Electric Remote Foot Pedal
- 6" x 6" x 1/2" Slug-less Angle Shear
- 20" Flat Bar Shear (1" x 12", 3/4" x 20")
- Shear Table with Miter Fence
- Rod Shear Capacity 1-1/2" Round, 1-1/4" Square
- Slug Receptacles
- Rectangle Notcher Capacity 3" x 5" x 1/2"
- Notcher Table with Scale and Guide
- Two-Stage Hydraulic Pump
- Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
- 230/460 Volt /3 Phase Electrics (must specify voltage)
- All Guards Necessary to Comply with ANSI B 11-5 Standards
- Forklift Accommodations
- Made in the USA
- Manufacturer
- Specifications
- Options/Accessories
- Pipe Notcher
- 90 degree V-Notcher
- Tube Shear
- Picket Tool
- 48" Back Gauge
- 12" & 24" Brake (*Back Gauge sold separately.)
- Urethane Stripper
- 6" x 6" Die Holder
- Offset Die Holder
- Rod Shear
- Unequal Leg Angle Blades
- Hydraulic Hold Down
- Brake Table with Scale and Squaring Arm. 12" and 24" Brakes.
Brake Length Gauge with Scale 12" & 24" Brakes - Unistrut Shear
- Multi-Loc Punch Gauging Table 36" and 85" Extensions Available
- 24" x 5' Conveyor with Angle Iron Support attached to FI8510/20M
- Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies - Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies - Punch Table Extension
- Weld Coupon Bender
- Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies - LED Light. Available on punch station and shear station.
- Custom Freight
SCOTCHMAN 85 Ton Hydraulic Ironworker FI 8510-20M
ITEM: 85 Ton Hydraulic Ironworker
MANUFACTURER: SCOTCHMAN
MODEL: FI-8510-20M
Manufacturer:
Scotchman
Machine Type
Machine Category:
Ironworkers
Power Source:
Hydraulic
Metalworking
Pressure:
80+ Tons
Rated on |
65,000 PSI Tensile |
|
Punching Capacity |
85 ton 1-1/16" in 1" |
|
Special Tooling |
4" Max. Dia. |
|
Throat Depth |
10" |
|
Flat Bar Shear |
20" Length 1" x 12" 3/4" x 20" |
|
Angle Shear 90° |
6" x 6" x 1/2" |
|
Angle Shear 45° |
4" x 4" x 1/2" |
|
Brake 12" |
85 Ton |
|
Brake 24" |
85 Ton |
|
Open End Brake |
Max. 1/4" x 5" Flat or Angle Iron |
|
Pipe Notcher Schedule 40 I.D. |
3/4" 1" 1-1/4" 1-1/2" 2" |
|
Rectangle Notcher 90° V. Notcher |
3" x 5" x 1/2" 3" x 3" x 1/2" |
|
90° V. Notcher |
6" x 6" x 5/16" |
|
Channel Shear |
2" to 6" Adj. |
|
Strut Shear |
Samples Required |
|
Rod Shear |
Round Rod |
1-1/2" |
Square Rod |
1-1/4" |
|
Square Tube Shear |
1/2" to 2" 12 ga. |
|
Picket Tool |
1/2" 3/4" 1" 16 gauge |
|
Offset Die Holder |
Max. 40 ton |
|
Strokes Per Minute in Light Material |
1/4" Stroke [Punch Station] |
|
Strokes Per Minute in Heavy Material |
3/4" Stroke [Punch Station] |
|
Hydraulics |
2,600 psi |
|
Motors Standard |
5 hp 3 ph 230/460 208/380/575 |
|
Motors Optional |
5 hp 1 ph, 230v |
|
Dimensions |
L-67" x W-30" x H-77" |
|
Shipping Weight |
4,554 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
CALL FOR PRICE:
