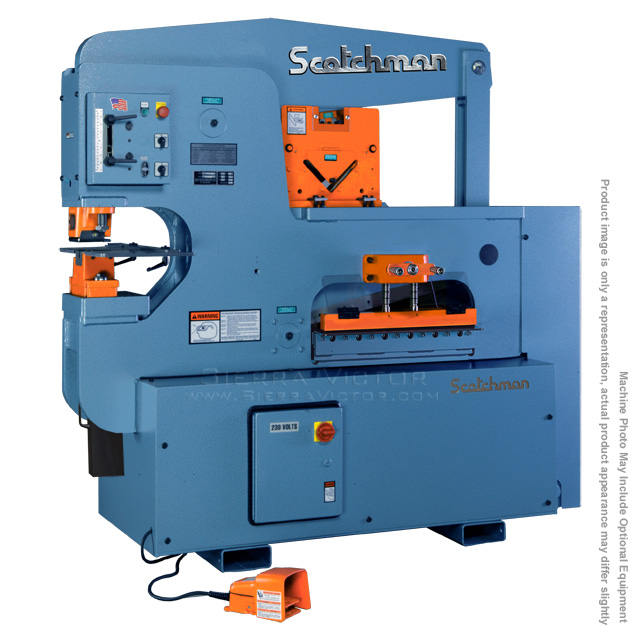

SCOTCHMAN 120 Ton Hydraulic Ironworker 12012-24M

• Are you looking for an ironworker machine that can punch and shear 1” thick, 65,000 tensile plate? Scotchman’s 12012-24M is the machine for the job. The Scotchman 12012-24M hydraulic ironworker can punch a 1-1/2” hole through 1” plate, its 24” wide flat bar shear can shear 1” x 12” and 1/2” x 24” base plate and this machine is supplied with a 6” x 6” x 1/2” angle shear. The tool table design is a bonus feature that allows the operator to quickly and easily mount optional tooling making this ironworker adaptable to your specific job. The Scotchman 12012-24M is American-made and backed by our best-in-the-business 3-year parts warranty.
• Single Operator, 4 Stations
• 120 Ton Punch Station (1-1/2" in 1")
• Keyed Punch Ram for Safety
• 12" Throat Depth
• Punch Gauging Table with Fence and Scale
• Die Holder Complete with 2" Die Insert
• Punch Nut with Wrench & Stripper
• One Round Punch & Die: Max. Dia. 1-1/4"
• Punch Jog Control
• Adjustable Electric Stroke Control with Scale
• Electric Remote Foot Pedal
• Angle Shear Capacity 6" x 6" x 1/2" at 90°
• 24" Flat Bar Shear with 4-Way Reversible Blade (1" x 12", 1/2" x 24")
• Shear Table with Miter Fence
• Tool Table Work Area
• Slug Receptacle
• Two-Stage Hydraulic Pump
• Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
• 230/460 volt /3 Phase Electrics (must specify voltage)
• All Guards Necessary to Comply with ANSI B 11-5 Standards
• Forklift Accommodations
• Made in the USA
