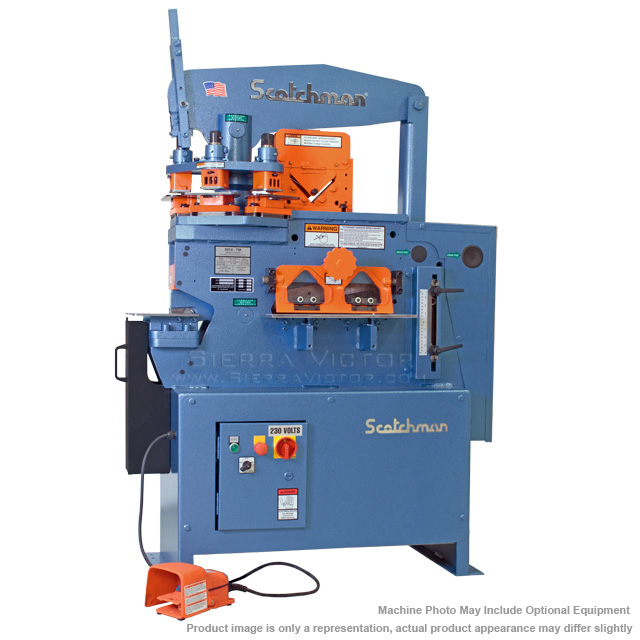

- The 5014-ET from Scotchman Industries is the world’s first and only 50-ton hydraulic ironworker with a 3-station turret. The innovative revolving turret accepts up to three different punch sizes that can be changed in seconds reducing set-up time and increasing productivity making the Scotchman 5014-ET ironworker the most versatile and efficient ironworker on the market. This hydraulic ironworker features 50 tons of pressure and has the ability to punch a 13/16″ hole in a 3/4″ plate and comes standard with an angle shear, 14” flat bar shear, and rectangle notcher. The 5014-ET ironworker is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty.
- Single Operator, 7 Stations
- 50 Ton Punch Station with 3-Station Revolving Turret (1-1/4" in 1/2" and 13/16" in 3/4")
- Keyed Punch Ram for Safety
- 4" Throat Depth
- Three 2" Die Holders, Three Punch Nuts with Wrench and Three Strippers
- One Round Punch & Die: Max. Dia. 1"
- Adjustable Electric Stroke Control with Scale
- Electric Remote Foot Pedal
- Angle Shear 4" x 4" x 3/8" at 90° and 2" x 2" x 3/8" at 45°
- 14" Flat Bar Shear with 4-Way Reversible Blade (3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14")
- Rectangular Notcher, 2-1/2" x 3" x 5/16" , 2-1/2" x 2-3/4" x 3/8"
- Tool Table Work Area
- Slug Receptacle
- Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
- 230/460 volt /3 Phase Electrics (must specify voltage)
- All Guards Necessary to Comply with ANSI B 11-5 Standards
- Forklift Accommodations
- Made in the USA
- Manufacturer
- Specifications
- Options/Accessories
- 6" Brake
- 8" Brake
- 12" Brake
- Open End Brake
- Pipe Notcher
- 90 degree V-Notcher
- Rod Shear
- Tube Shear
- Picket Tool
- Punch Gauging Table with Fence & Scale
- 48" Back Gauge
- Shear Table with Miter Fence
- 4" Angle Miter Guide
- Laser Light
- Brake Table with Scale and Squaring Arm, 12" Brake Only
Brake Length Gauge with Scale (sold separately) - 8" & 12" Brakes - Unistrut Shear
- 14" x 5' Conveyor with Angle Iron Support attached to 5014-TM
- Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies - Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies - Tool Table Extension includes Punch & Die Drawer (50-ton)
*Punches & Dies sold separately. - Weld Coupon Bender
- LED Light
- Snap Ring Removal Tool
- Jog Control
- Custom Freight
SCOTCHMAN 50 Ton Hydraulic Ironworker with 3-Station Turret 5014-ET
ITEM: 50 Ton Hydraulic Ironworker
MANUFACTURER: SCOTCHMAN
MODEL: 5014-ET
Manufacturer:
Scotchman
Machine Type
Machine Category:
Ironworkers
Power Source:
Hydraulic
Metalworking
Pressure:
50+ Tons
Rated on |
65,000 PSI Tensile |
|
Punching Capacity |
50 ton 1-1/4" in 1/2" 13/16" in 3/4" |
|
Special Tooling |
2-1/4" Max. Dia. |
|
Throat Depth |
4" |
|
Flat Bar Shear |
14" Length 3/4" x 4" 1/2" x 8" 3/8" x 10" 1/4" x 14" |
|
Opt. Saber Blade |
1/2" x 10" 3/8" x 12" |
|
Angle Shear 90° |
4" x 4" x 3/8" |
|
Angle Shear 45° |
2" x 2" x 3/8" |
|
Brake 8" |
25 ton |
|
Brake 12" |
25 ton |
|
Open End Brake |
Max. 1/4" x 3" Flat or Angle Iron |
|
Pipe Notcher |
3/4" 1" 1-1/4" 1-1/2" 2" |
|
Rectangle Notcher |
2-1/2" x 3" x 5/16" 2-1/2" x 2-3/4" x 3/8" |
|
90° V. Notcher |
6" x 6" x 1/8" 3" x 3" x 1/4" |
|
Unistrut Shear |
Samples Required |
|
Rod Shear |
Round Rod (Max.) |
1/4" to 1" 5 Cavity 7/16", 9/16" 5/8", 3/4", 1" |
Square Rod (Max.) |
1/4" to 3/4" 1 Cavity 3/4" |
|
Square Tube Shear |
1/2" to 1" 12 ga. |
|
Picket Tool |
1/2" 3/4" 1" 16 gauge |
|
Strokes Per Minute in Light Material [Punch Station] |
1/4" stroke |
|
Strokes Per Minute in Heavy Material [Punch Station] |
3/4" stroke |
|
Hydraulics |
2350 psi |
|
Motors Standard |
3 hp 3 ph 230/460 208/380/575 |
|
Motors Optional |
5 hp 1 ph , 220v |
|
Dimensions |
L-48" x W-23" x H-70" |
|
Shipping Weight |
1,580 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
