- Description
- This is a production class Dual Drum Sander that is loaded with features. A 10HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.
- 10HP motor for plenty of power
- Independently adjustable rear drum for fine tuning
- Hard durometer rubber coating on steel drums provide flat, smooth finish
- Two-speed gearbox for wide range of sanding projects
- Full size cast iron table for solid support
- Forward/reverse poly conveyor belt grips stock evenly
- Dual dust ports with directional baffles for more efficient dust removal
- 460V operation requires an additional 460V magnetic switch, part DDS237-322B (CALL FOR PRICE)
- Two speed gearbox
- Dual 4" dust ports
- Sandpaper installed on drums
- Tool kit
- Manufacturer
- Specifications

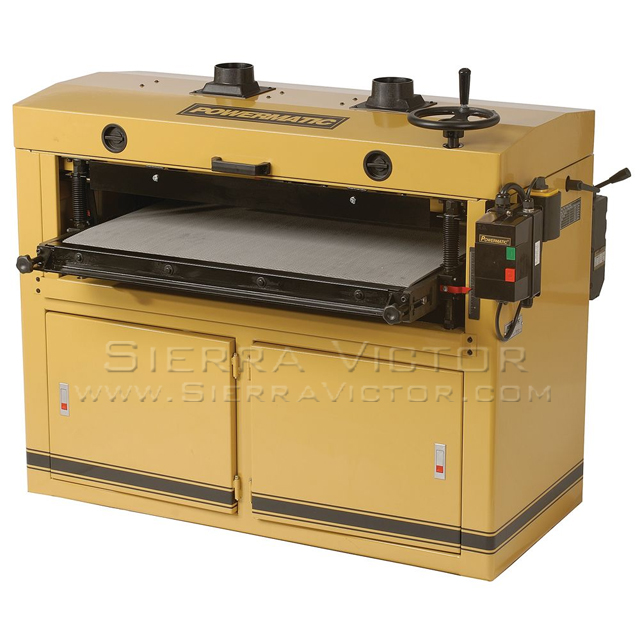

POWERMATIC DDS-237 10HP 3PH 230/460V Drum Sander PM9-1791321
STANDARD EQUIPMENT:
ITEM: 37" Drum Sander
MANUFACTURER: POWERMATIC
MODEL: DDS-237
PART# PM9-1791321
Manufacturer:
Powermatic
Machine Type
Machine Category:
Sanders
Machine Sub-Category:
Drum
Material Type:
Wood
STOCK#
|
PM9-1791321
|
MODEL
|
DDS-237
|
Drum Length (In.)
|
37
|
Number of Sanding Drums
|
2
|
Drum Speed (RPM)
|
1,700
|
Drum Diameter (In.)
|
6
|
Conveyor Motor (HP)
|
1/4
|
Conveyor Speed (FPM)
|
8 & 12
|
Maximum Board Thickness (In.)
|
5-1/4
|
Maximum Board Width (In.)
|
37
|
Minimum Board Length (In.)
|
9
|
Minimum Board Thickness (In.)
|
1/32
|
Dust Collection Minimum CFM Required (CFM)
|
1,200
|
Dust Port Outside Diameter (In.)
|
two @ 4"
|
Motor Power (HP)
|
10
|
Motor Phase
|
3
|
Motor Voltage (V.)
|
230/460
|
Prewired Voltage (V.)
|
230
|
Recommended Circuit Size (Amps.)
|
35/20
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)
