- Description

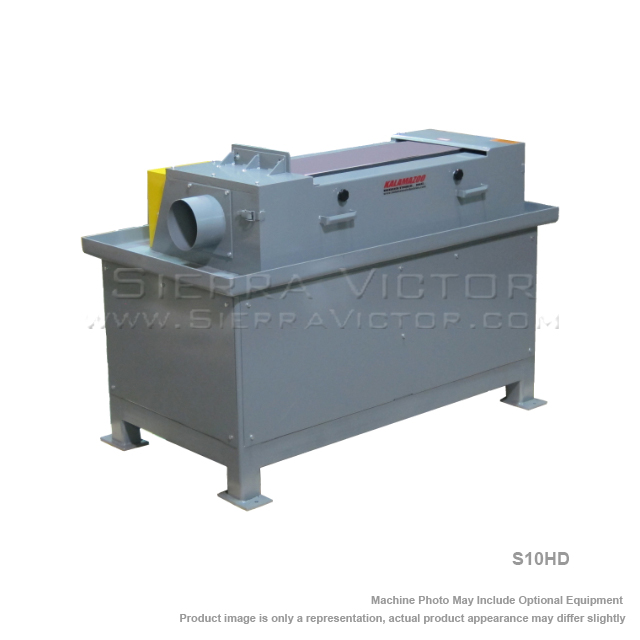

- The S10HD 10 x 90 inch dry industrial horizontal belt sander is a robust tool designed for high-performance sanding of materials up to 10 inches wide. Featuring a wide belt design, it enables operators to oscillate parts during sanding, facilitating a more efficient process. The unique right-to-left motion not only enhances material finish but also contributes to prolonging the life of the sanding belt and platen. With a powerful 10HP motor and magnetic controls, this American-made sander is suitable for industrial applications, offering precision and durability in horizontal dry sanding.
- This Kalamazoo sander is your ultimate companion, compatible with all belt types. Whether you seek a coarse or fine finish, the S10HD adapts to your needs, providing unparalleled flexibility in achieving diverse surface finishes.
- Magnetic controls with jog switch
- On/off push buttons
- 24V at on/off push button switches
- Steel reversible and steel 10" x 29" platen
- Steelwork rest
- Air belt tension. Constant air pressure is required. The air pressure needs to be set between 40 to 50 psi
- Heavy-duty steel stand
- 6" vacuum port attachment
- Driven by twin v-belts and pulley system
- Sealed ball bearings
- One knob belt tracking
- Engineered for Versatility and Durability:
- The S10HD Horizontal Sander is not just a tool; it’s a versatile solution for a spectrum of tasks, including:
- Beveling
- Deburring
- Squaring-up ends
- Rounding flat corners
- Flattening surfaces
- Surface clean-up
- Flash removal
- Manufacturer
- Specifications
- Custom Freight

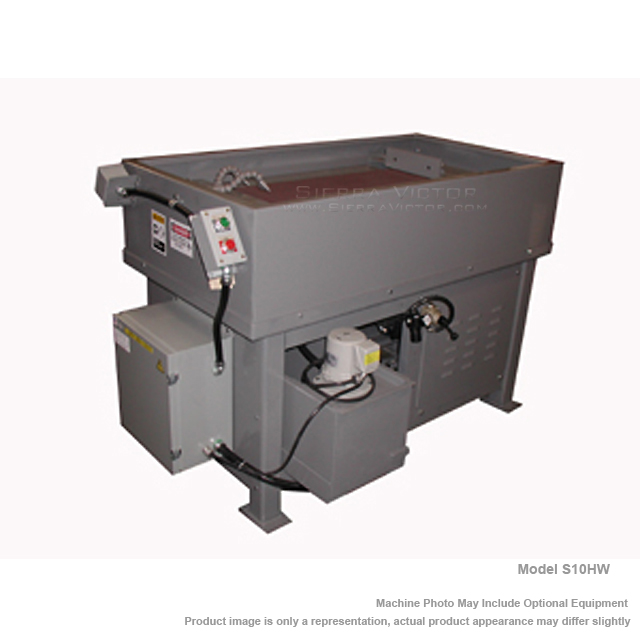

KALAMAZOO 10" x 90" Dry and Wet Horizontal Belt Sanders S10HD, S10HW - MADE IN USA!
ITEM: 10" x 90" Dry & Wet Horizontal Wide Belt Sanders
MANUFACTURER: KALAMAZOO
MODEL: S10HD / S10HW
Manufacturer:
Kalamazoo Industries
Grinder/Sander Size:
10"+
Machine Type
Machine Category:
Sanders
Machine Sub-Category:
Wide Belt
Position:
Horizontal
MODEL
|
S10HD
|
S10HW |
Type |
Dry |
Wet |
Belt Size |
10 x 90 in. |
|
Motor |
10HP, 3PH, 230V or 460V motor |
|
Amp draws |
220V 24 amps and 440V 12.5 amps |
|
Belt Speed |
3500 SFPM |
|
Working Surface |
10 x 28 in. |
|
Air pressure required |
40 to 50 psi |
|
Steel Platen |
10 x 29 in. |
|
Shipping Weight |
1,400 lbs. |
|
Shipping Dimensions |
L 65 x W 65 x H 60 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
