- Description
- The S10W 10 x 90 inch wet polishing sander is an industrial machine with a powerful 10HP motor that polishes surfaces quickly and evenly for inspection. Other sander features include steel construction, air belt tension, and a coolant system.
- Magnetic controls
- 24 volts at the on/off switch
- Sanding belt jog selector switch
- Steel 10 gal tank & coolant pump coolant with splash bar
- 10" x 29" reversible and replaceable steel platen
- Work Surface-10" x 28"
- Replaceable cast iron work table with fixture slot. The table tilts 45 degrees down and 15 degrees up
- Air Tension on the sanding belt (40 -50 PSI required)
- V-belt driven
- THIS WET SANDER IS DESIGNED TO DO THE FOLLOWING:
- Bevel
- Deburr
- Square up ends
- Round Flat Corners
- Flattening
- Polishing
- Clean up work for material sampling
- Production sanding
- Smoothing
- Manufacturer
- Specifications
- Options/Accessories
- KWB109050 10" x 90" 50 grit aluminum oxide sanding belt
- KWB109080 10" x 90" 80 grit aluminum oxide sanding belt
- KWB1090100 10" x 90" 100 grit aluminum oxide sanding belt
- Variable frequency drive
- Custom Freight

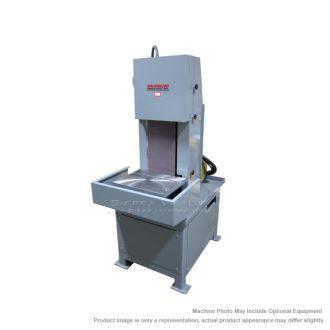

KALAMAZOO S10W 10 x 90 Inch Heavy Duty Wet Vertical Industrial Sander
ITEM: 10" x 90" Wet Vertical Wide Belt Sander
MANUFACTURER: KALAMAZOO
MODEL: S10W
Manufacturer:
Kalamazoo Industries
Grinder/Sander Size:
10"+
Machine Type
Machine Category:
Sanders
Machine Sub-Category:
Wide Belt
Position:
Vertical
MODEL
|
S10W
|
Type |
Wet |
Belt size |
10 x 90 in. |
Motor |
10HP 3PH 230V or 460V motor (specify) |
Amp draws |
Motor: 230V 24 amps and 460V 12 amps Pump: 230V .9 amps and 260V .52 amps |
Belt Speed |
3,500 SFPM |
Steel platen |
10 x 29 in. |
Work Surface |
10 x 28 in. |
Work Table Tilt |
45° down and 15° up |
Belt tension |
Air tension (40 to 50 psi required) |
Shipping Dimensions |
L 48 x W 53 x H 80 in. |
Total Shipping Weight |
1,600 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
