- Description
- The Hurricane 2030A-CTS band saw allows programmable miter cuts up to 60ᵒ in one direction. A touch screen control is mounted in a swing-away console for settings, operational functions, and diagnostics. The control allows manual, semi-automatic or automatic cutting. A chip auger and Cut Watcher are included.

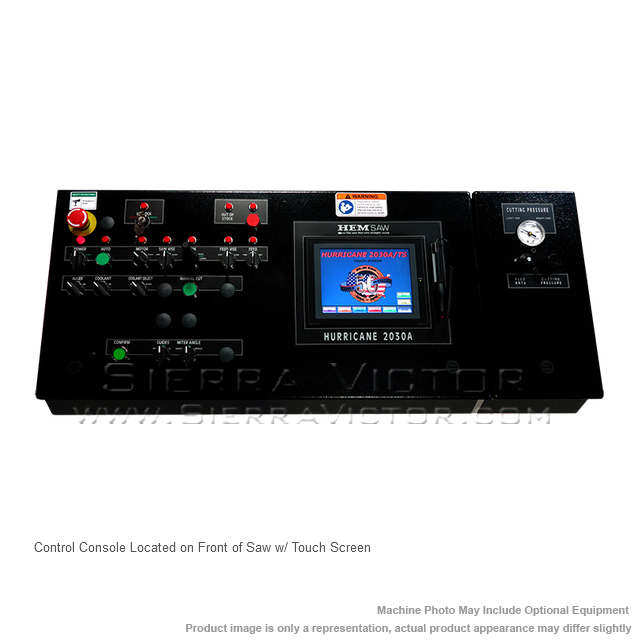

- Control Console w/ 8" Touch Screen
- Computer Controlled Feed System
- 24" Solid Discharge Table
- Vises - Full Stroking
- Adjustable Clamping Force
- Powered Programmable Miter w/ Angle Readout
- Carbide Blade Guides
- Guide Arm - Powered
- Passive "Cut Watcher" System
- Variable Blade Speed w/ Readout on Touch Screen
- Powered Blade Tension
- Adjustable Feed Rate
- Adjustable Cutting Pressure
- Chip/Swarf Removal System - Chip Auger
- Coolant System - Flood w/ Wash-Down Hose
- Blade Brush
- Broken Blade Function
- Out-of-Stock Function
- Blade Change Interlock
- Safety Guards
- 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
- Manufacturer
- Specifications
- Options/Accessories
- Top Clamp - Full Capacity Main & Feed Vise
- Discharge Plate Kit
- Laser Light System
- Spray Mist Lubrication
- Cold Weather Package
- Hydraulic Tank Heater
- 5' Idle Roller Stock Table
- 10' Idle Roller Stock Table
- Custom Freight
HE&M 30 inch Horizontal Miter Bandsaw HURRICANE 2030A-CTS
STANDARD EQUIPMENT:
ITEM: 30" Horizontal Miter Bandsaw
MANUFACTURER: HE&M
MODEL: HURRICANE SERIES
PART# HURRICANE 2030A-CTS
Manufacturer:
HE&M
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Miter
Position:
Horizontal
Metalworking
Saw Capacity:
30"+
Capacity |
Capacity |
30" W x 20" H |
Square Capacity |
20" (Square) |
|
Round Capacity |
20" (Diameter) |
|
Bar-feed |
0-34" (Stroke Hydraulic Cylinder – Multiple Index) |
|
Blade |
20’6" x 1.5" x .050" |
|
Operation |
Automatic |
|
Power Source |
Hydraulic |
|
Hydraulic Motor |
5 HP |
|
| Motor |
10 HP |
|
Electrical Motor Requirement |
220V/440V/3PH |
|
Bundle Cut |
Yes |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
