We Are an Authorized HE&M Distributor in the Following States: FL, GA, NC, SC, VA
- Description
- The H90A-C includes a 24” bar-feed, allows multiple indexes, and the ability to create and save up to 99 jobs. Each job includes a job number, part length, and quantity and it runs consecutive job numbers in sequence. The H90A-C produces fast accurate cuts on small solids and shapes.

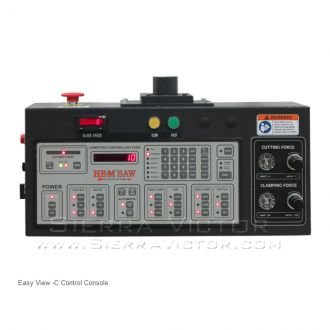

- Easy View Console - All Function Control
- Computer Controlled Feed System
- 24" Solid Discharge Table - Bolts to Saw
- Vise - Adjustable Main & Feed
- Adjustable Clamping Force
- 2 Hold Down Fixtures
- Guide Arm - Manual Adjustment
- Passive "Cut Watcher" System
- Variable Blade Speed w/ LED Readout
- Carbide Blade Guides
- Manual Blade Tension
- Adjustable Feed Rate
- Adjustable Cutting Pressure
- Coolant System - Flood w/ Wash-Down Hose
- Vertical Alignment Bar on Bar-Feed
- Blade Brush
- Broken Blade Function
- Out-of-Stock Function
- Safety Guards
- 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
- 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
- Manufacturer
- Specifications
- Options/Accessories
- Vise - 3rd on Feed
- Interlocking Vise Jaws
- Top Clamp - Reduced Capacity Feed Vise
- Top Clamp - Reduced Capacity Main Vise
- Light Clamping Pressure
- Spray Mist Lubrication
- 5' Idle Roller Stock Table
- 10' Idle Roller Stock Table
- Single-Phase Voltage
- Custom Freight

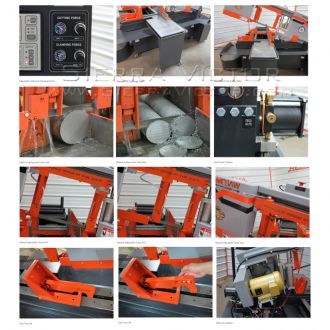

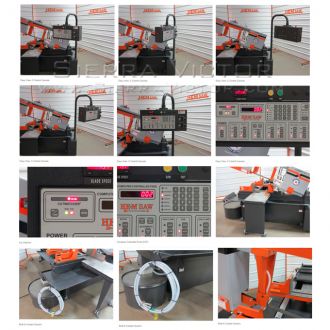

HE&M 12.75 inch Horizontal Pivot Bandsaw H90A-C - MADE IN USA!
ITEM: 12.75" Horizontal Pivot Bandsaw
MANUFACTURER: HE&M
MODEL: H90 SERIES
PART# H90A-C
Manufacturer:
HE&M
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Pivot
Position:
Horizontal
Metalworking
Saw Capacity:
12"+
Capacity |
Rectangular |
0-12.75" W x 0-12.75" H |
Square |
0-12" (Square) |
|
Round |
0-12.75" (Diameter) |
|
Bar-feed |
0-24" (Stroke Air - Multiple Index) |
|
Motor |
3 HP |
|
Hydraulic Motor |
N/A |
|
Electrical Motor Requirement |
220V/3PH or 440V/3PH (This is Not a Dual Voltage Machine) |
|
Minimum Air Requirement |
85 PSI, 4-6 CFM (Equipped w/ Air Filter/Lubricator) |
|
Operation Type |
Automatic |
|
Power Source |
Air |
|
Blade Type |
Bandsaw |
|
Blade Size |
12' 10" L x 1" H x .035" |
|
Cantilever |
— |
|
Bandsaw Blade Speed |
N/A |
|
Bundle Cut? |
Yes |
|
Weight |
N/A |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
