- Description
- ISO 9001 certified
- Heavy Duty cast iron construction

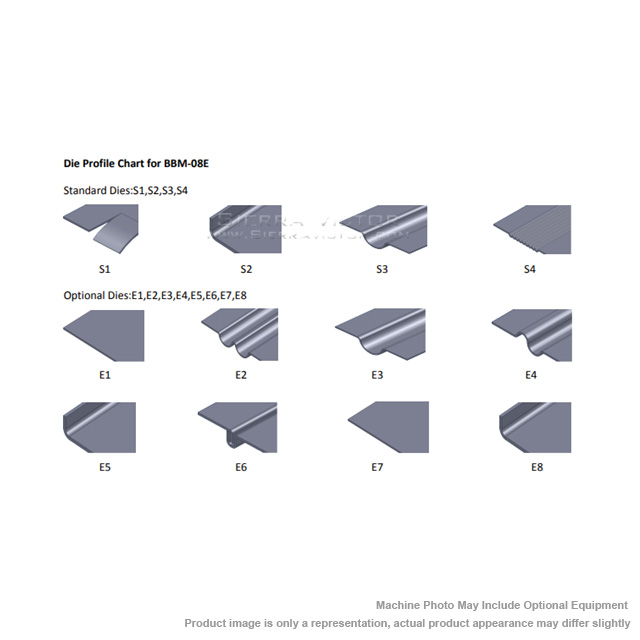

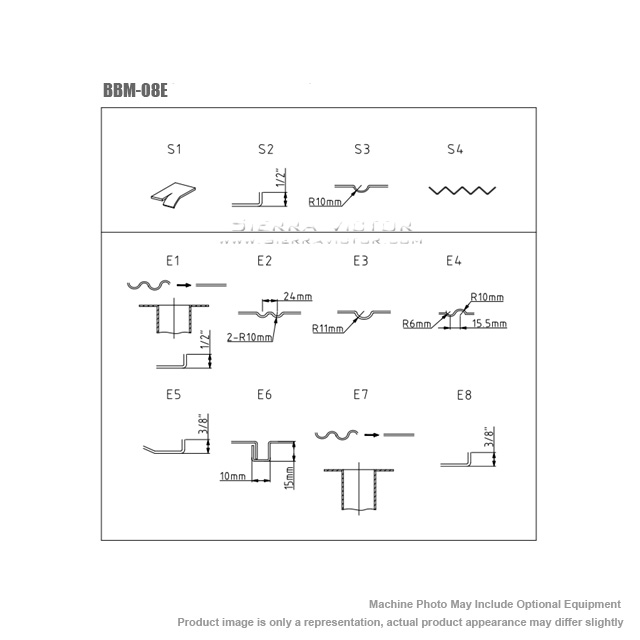

- (4) sets of standard dies
- S1 - Shear die
- S2 - Step die (10mm)
- S3 - Bead die (R6mm)
- S4 - Step die (8mm)
- Easy adjustment and operation
- Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset.
- **This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
- **Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
- Manufacturer
- Specifications
- Options/Accessories
- Optional die set (extra) …………$475.00
- Custom profile die set …………..$575.00
- Video

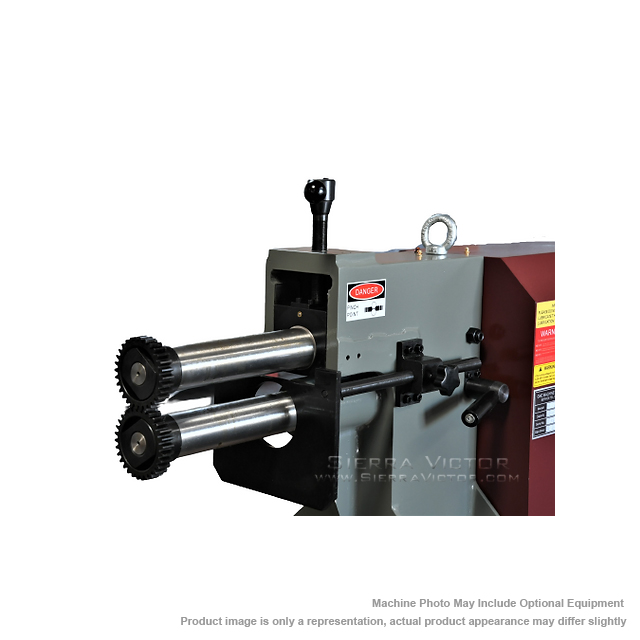

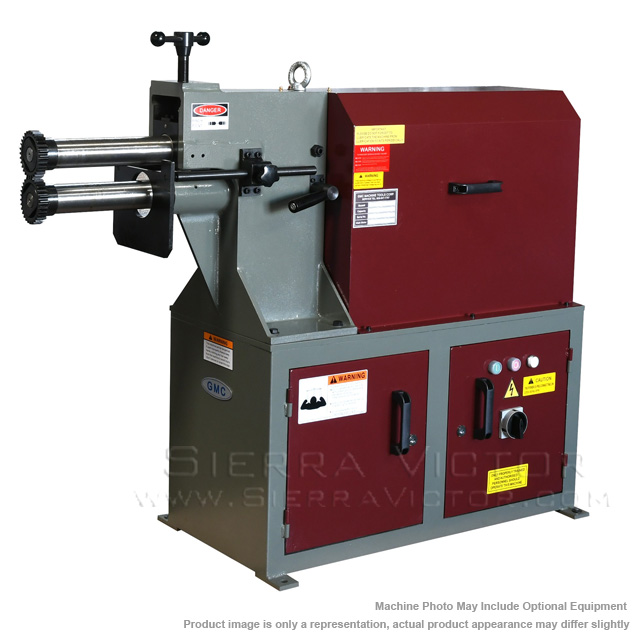

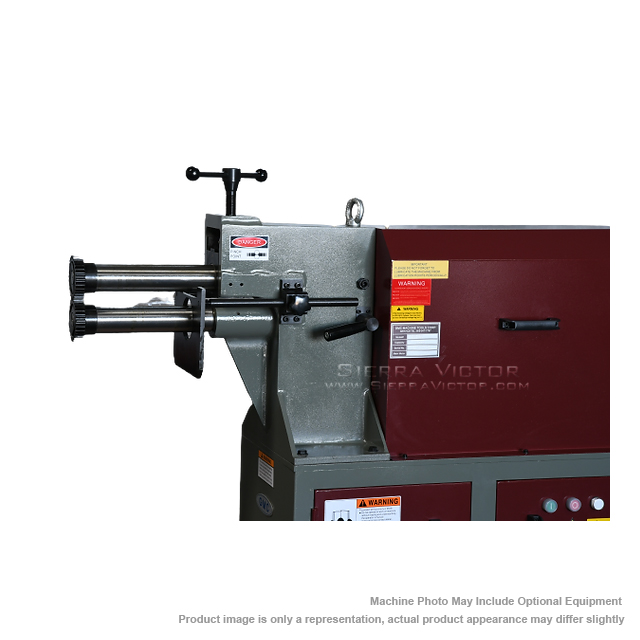

GMC 8 ga. Power Beading Machine BBM-08E
ITEM: 8 ga. Power Beading Machine
MANUFACTURER: GMC
MODEL: BBM-08E
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Beader/Crimper
Control:
Power
Metalworking
Mild Steel Capacity:
8 ga
|
Max. Capacity: Mild Steel |
8 ga. |
|
Max. Capacity: Stainless Steel |
12 ga. |
Throat Depth |
12 in. |
Cylinder length |
9 in. |
Cylinder speed |
15 RPM |
Main motor |
3 HP 3 Phase Prewired: 220VAC Optional: 440VAC |
Overall dimensions: (L x W x H) |
61 x 20 x 50 in. |
Machine Weight: |
770 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
