- Description
- ISO 9001 certified
- Heavy Duty cast iron construction

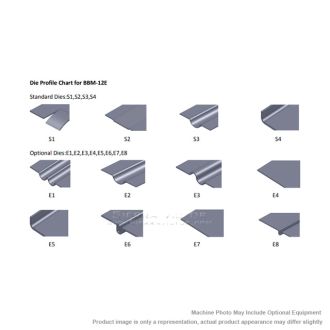

- (4) sets of standard dies
- S1 - Shear die
- S2 - Crimp die (RD)
- S3 - Bead die (R0.25")
- S4 - Step die (10mm)
- Easy adjustment and operation
- Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset
- **This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
- **Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
- Manufacturer
- Specifications
- Options/Accessories
- Video

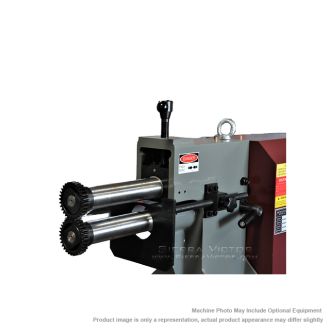

GMC 12 ga. Power Bead Roller BBM-12E
ITEM: 12 ga. Power Bead Roller
MANUFACTURER: GMC
MODEL: BBM-12E
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Beader/Crimper
Control:
Power
Metalworking
Mild Steel Capacity:
12 ga
|
Max. Capacity: Mild Steel |
12 ga. |
|
Max. Capacity: Stainless Steel |
16 ga. |
Throat Depth |
11 in. |
Cylinder length |
8 in. |
Cylinder speed |
20 RPM |
Main motor |
2 HP, 3 Phase Prewired: 220VAC Optional: 440VAC |
Overall dimensions: (L x W x H) |
55” x 20” x 47” |
Machine Weight: |
530 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
|
PART#
|
ITEM
|
OUR PRICE
|
|
—
|
Optional die set, E1/E2/E3/E4/E5/E6/E7/E8
|
$475.00
|
|
—
|
Custom profile die set
|
$575.00
|
