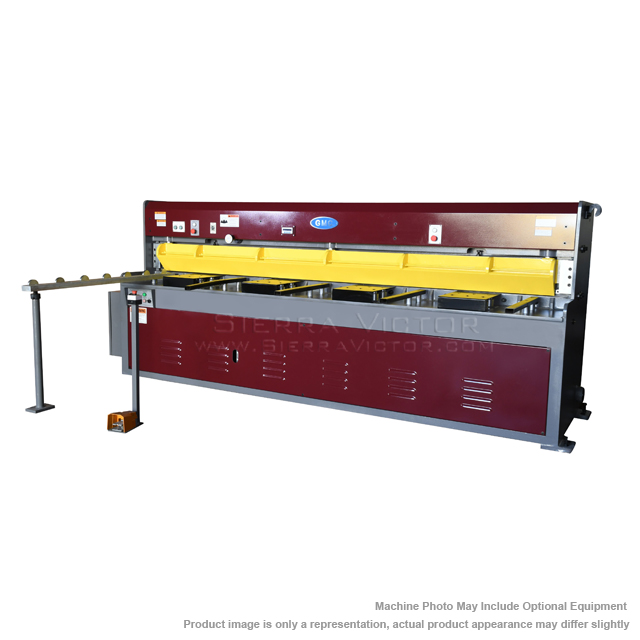

GMC 10 ft x 10 gauge Hydraulic Metal Shear w/Electric Backgauge HS-1010E

• ISO 9001 certified
• Taiwan machines

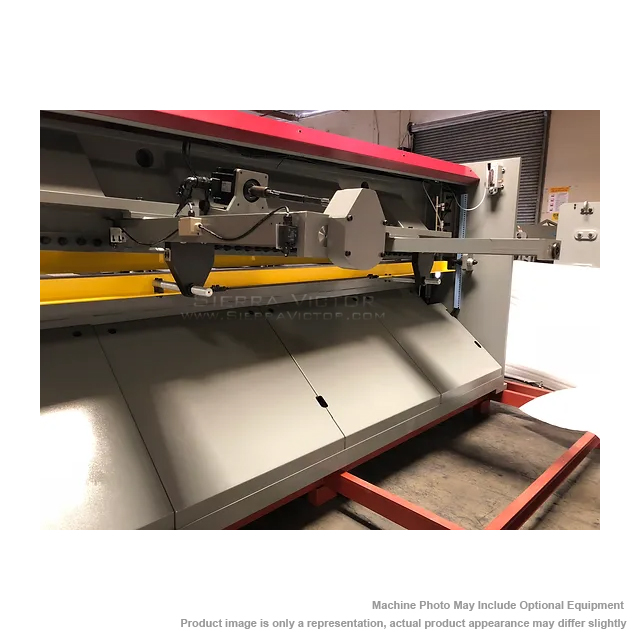

• HS-1010E comes with 36 in. German SIKO Front Operated power back gauge w/micro adjustment 0.004 in., inch/mm digital display
• Quick Change Blade Gap Adjustment (BGA), with gap dial
• Shadow line for accurate straight cutting

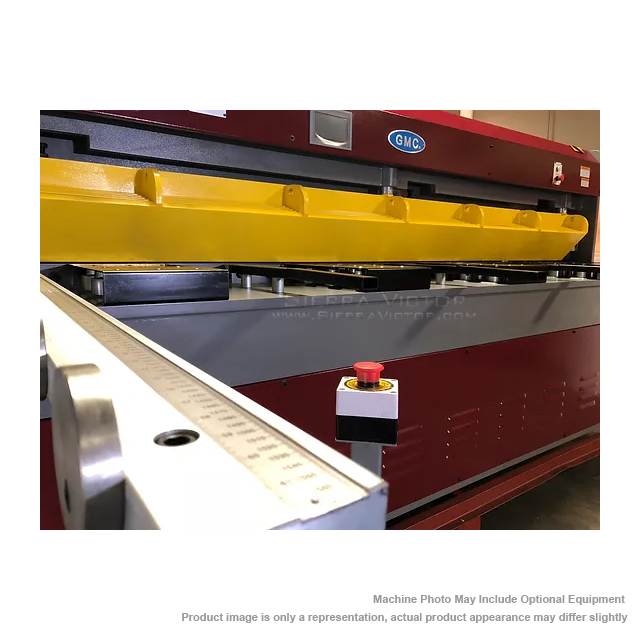

• 60 in. squaring arm with inlaid inch/metric dual scale
• CE standard “OMERO” electric control system
• Meet OSHA safety standard code
• Adjustable cutting length and stroke
• Ball transfer plates on worktable for easy loading workpiece
• Well balanced and sturdy all steel machine frame
• German made Hydraulic logic system centrally located and quiet
• Hydraulic hold-downs with anti-mar neoprene
• Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length viewable safety finger guard to protect operator from cutting hazard
• Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
• Hydraulic, electrical overload protection
• Compact operator control panel
• All motors are overload protected & low voltage control system
• Jog or continuous auto cycle cutting operation modes
• One year industrial warranty for parts
• DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
• This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

STANDARD EQUIPMENT:

• HS-1010E comes with 36 in. German SIKO Front Operated power back gauge w/micro adjustment 0.004 in., inch/mm digital display
• 1 each 60” squaring arm with inlaid inch/metric dual scale
• Quick change blade gap adjustment (BGA)
• Shadow line for accurate straight cutting
• Material support and drop back chuter
• Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
• 2 each 24 in. front support arms
• Hydraulic hold-downs with anti-mar neoprene
• Full length viewable finger guard
• Removable safety foot pedal
• Tool box
