- Description
- ISO 9001 certified
- Taiwan machines
- 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke

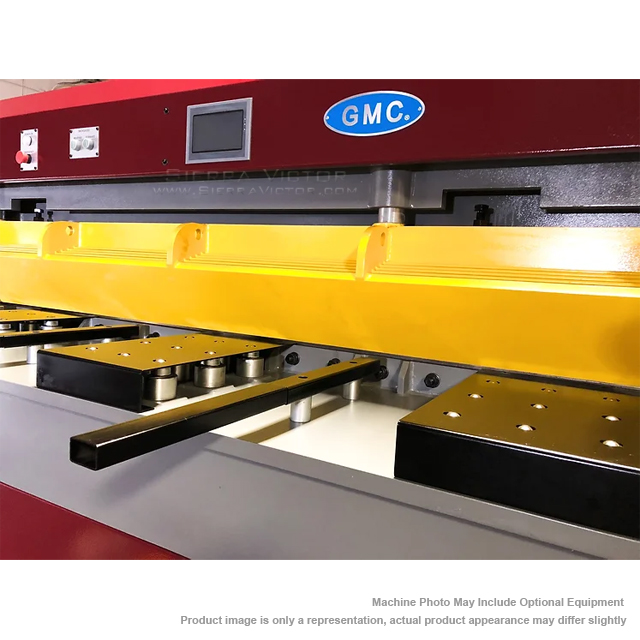

- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes

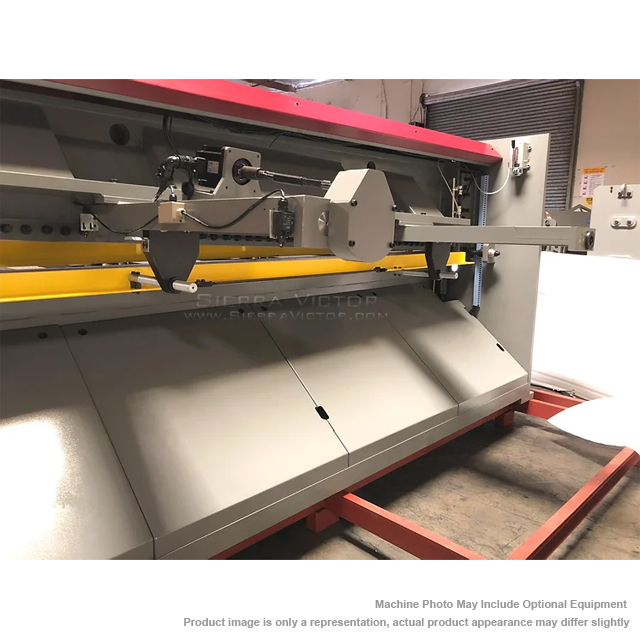

- 36” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display.

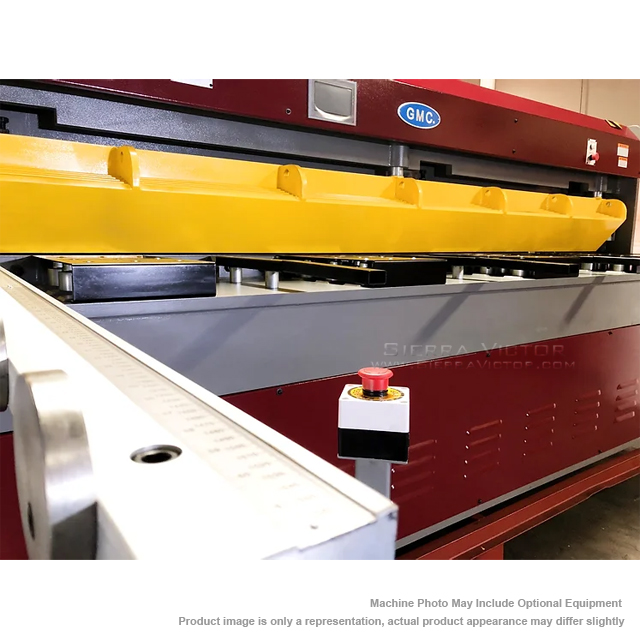

- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with gap dial
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper

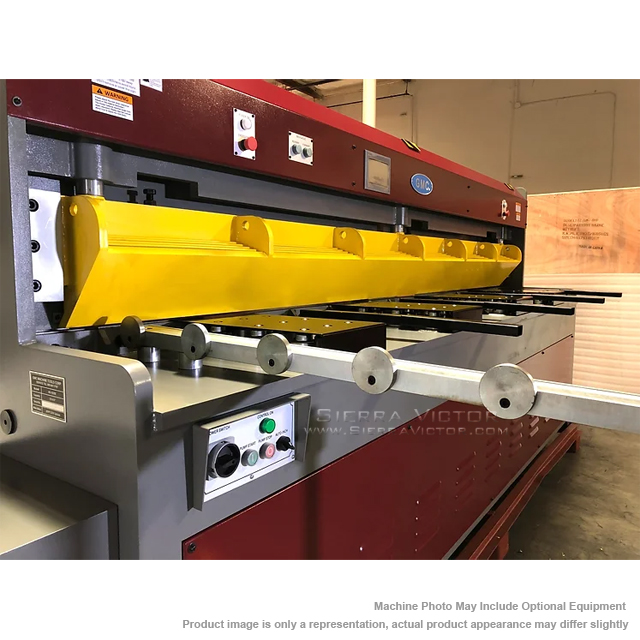

- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
- Manufacturer
- Specifications
- Options/Accessories
- Safety fence for enclosure of the back side of the machine.... $CALL
- Video
GMC 8 ft x 1/4 inch Heavy Duty Hydraulic Shear HS-0825E
STANDARD EQUIPMENT
ITEM: 8 ft x 1/4 inch Heavy Duty Hydraulic Shear
MANUFACTURER: GMC
MODEL: HS-0825E
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Metalworking
Material Length:
8 ft (96 in.+)
Mild Steel Capacity:
1/4"
Stainless Steel Capacity:
14 ga
MODEL |
HS-0825E |
Cutting capacity: Mild steel
|
8 x 1/4" |
Cutting capacity: Stainless steel |
8' x 10 ga. |
Blade length |
8' 2" = 98" |
Strokes per minute |
10-15
|
Throat depth |
18" |
Worktable height |
34-1/2"
|
Front support arm |
24" |
Back gauge |
36” SIKO Power Back gauge |
Blade rake angle |
2 degree |
Oil tank cap. |
32 Gal. |
Main motor |
20HP, 220V / 440V , 3 phase |
Motor for power back gauge |
1HP, 220V/440V, 3 phase |
Machine weight |
12,850 lbs |
Machine dimensions |
157” x 99” x 65” |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
