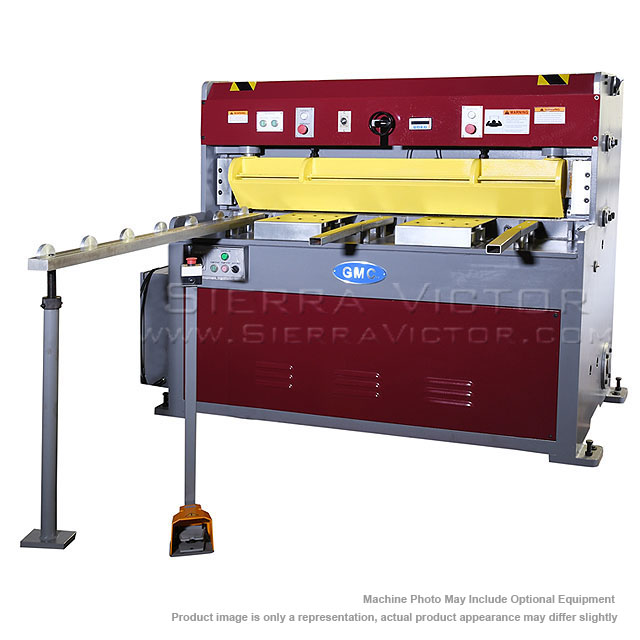

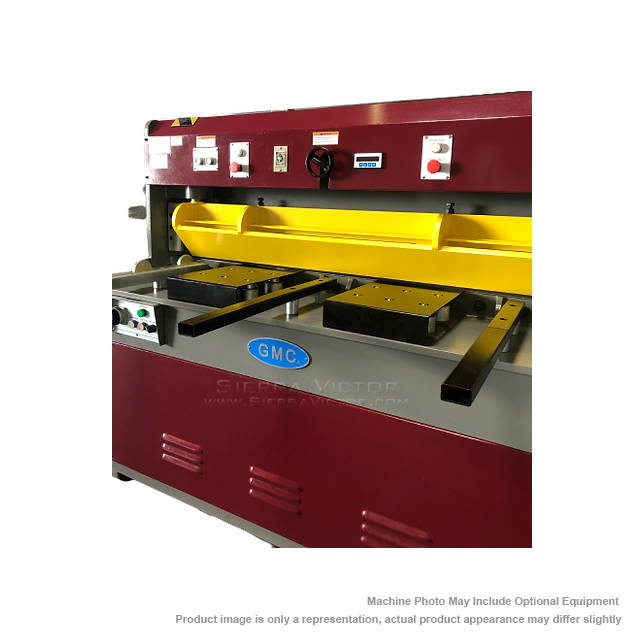

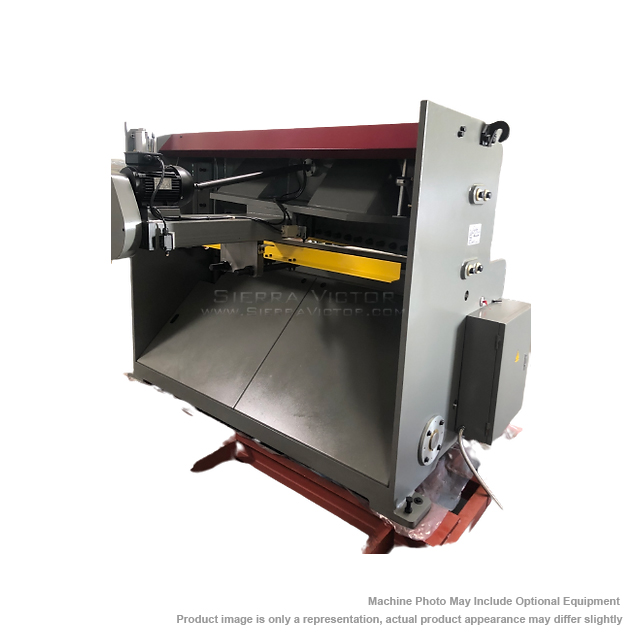

GMC 4 ft x 10 ga. Heavy Duty Hydraulic Shear HS-0410E

• ISO 9001 certified
• Taiwan machines
• 24” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
• Quick Change Blade Gap Adjustment (BGA), with gap dial
• CE standard “OMERO” electric control system
• Meet OSHA safety standard code
• Shadow line for accurate straight cutting
• Adjustable cutting length and stroke
• Ball transfer plates on worktable for easy loading workpiece
• Well balanced and sturdy all steel machine frame
• German made Hydraulic logic system centrally located and quiet
• Hydraulic hold-downs with anti-mar neoprene
• Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length viewable safety finger guard to protect operator from cutting hazard
• Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
• Hydraulic, electrical overload protection
• Compact operator control panel
• All motors are overload protected & low voltage control system
• Jog or continuous auto cycle cutting operation modes
• One year industrial warranty for parts
• Experience exceptional cutting precision and power with the HS-0410E Heavy-Duty Hydraulic Shears. With its impressive cutting capacity, advanced features, and robust construction, this machine is designed to meet your metal cutting needs with efficiency and accuracy.
• DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
• This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported

STANDARD EQUIPMENT:

• 24" German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display.
• 1 each 60" squaring arm with inlaid inch/metric dual scale
• Quick change blade gap adjustment (BGA) with gap dial
• Shadow line for accurate straight cutting
• Material support and drop back chuter
• Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
• 2 each 24" front support arms
• Hydraulic hold-downs with anti-mar neoprene
• Full length viewable finger guard
• Removable safety foot pedal
• Tool box
