- Description
- Taiwan machines
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet Rexroth hydraulic system
- Adjustable stroke from 16-20 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
- *This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
- 26" manual back gauge with inch/metric dual scale & one side operated hand wheel
- 60" long squaring arm with inch / mm scale
- 2 each 24" front support arms
- 2 each 14" Side gauges with inlaid inch/metric dual scale
- Spring independent hold-downs
- Full length finger guard
- Removable safety foot pedal control
- One set of blades
- Manufacturer
- Specifications
- Options/Accessories
- Video

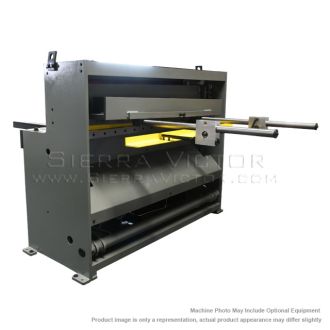

GMC 4 ft x 10 ga. Hydraulic Metal Shear HS-0410MD
EQUIPPED WITH:
ITEM: 4 ft x 10 ga. Hydraulic Metal Shear
MANUFACTURER: GMC
MODEL: HS-0410MD
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Material Type:
Metal
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
10 ga
Stainless Steel Capacity:
14 ga
|
Cutting Capacity: Mild Steel
|
(4 ft) 52 in. x 10 Ga.
|
|
Cutting Capacity: Stainless Steel
|
(4 ft) 52 in. x 14 Ga.
|
|
Minimum Capacity
|
24 ga.
|
|
Blade length
|
52 in.
|
|
Strokes per minute adjustable
|
16-20
|
|
Throat depth
|
16 in.
|
|
Worktable height
|
30-1/2 in.
|
|
Front support arm length
|
24 in.
|
|
Manual Back Gauge
|
26 in.
|
|
Blade Rake Angle
|
1.5 degree
|
|
Oil Tank Capacity
|
10 Gal
|
|
Main motor
|
5-1/2 HP
Prewired: 20A/220V/3-Phase Optional: 10A/440V 3-Phase |
|
Machine dimensions
|
68 x 35 x 52 in.
|
|
Net Weight
|
3,050 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM |
PRICE
|
— |
Safety fence for enclosure of the back side of the machine |
$CALL |
— |
Special blade set for stainless steel |
$CALL |
— |
Special blade set for stainless steel for HS-0810MD/1010MD |
$CALL |
