- Description

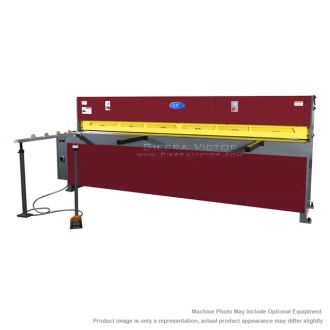

- Our 6 Ft Mechanical Shearing Machine - EPS-0610M mechanical metal shearing machine is rated to shear up to 72" metal steel sheets at up to 30 strokes per minute. With an array of features, quickly adjust your backgauge, precision driven gear box, all electric low maintenance design, will add value to any fabrication machinery shop.
- ISO 9001 certified
- American design and Taiwan quality machine
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 30 strokes per minute
- 60” long squaring arm with inch / mm scale
- spring hold-downs
- high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

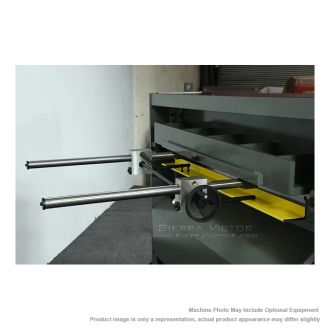

- 26" manual back gauge with one side handwheel
- 60" long squaring arm with inch / mm scale, mounted on right side of the table

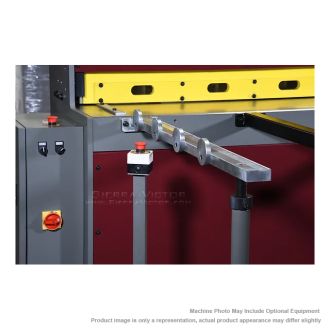

- 2 each 24” front support arms
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
- Manufacturer
- Specifications
- Options/Accessories
- Safety fence for enclosure of the back side of the machine: $CALL
- Video
GMC 6 ft x 10 ga. Mechanical Shearing Machine EPS-0610M
STANDARD EQUIPMENT:
ITEM: 6 ft x 10 ga. Mechanical Shearing Machine
MANUFACTURER: GMC
MODEL: EPS-0610M
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Shears
Machine Sub-Category:
Mechanical
Material Type:
Metal
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
10 ga
Stainless Steel Capacity:
14 ga
Cutting Capacity |
Mild Steel (hot roll) Tensile 60,000PSI |
6 ft x 10 Ga. |
Stainless Steel Tensile 85,000PSI |
6 ft x 14 Ga. |
|
Soft aluminum Tensile 28,000PSI |
6 ft x 1/4 in. |
|
Min Thickness |
22 Ga. |
|
Blade Length |
80 in. |
|
Strokes per minute |
28 |
|
Worktable height |
32 in. |
|
Front support arm |
36 in. |
|
Back gauge |
26 in. Manual back gauge |
|
Blade rake angle |
2.5 degree |
|
Main Motor |
7-1/2HP, 3 Phase 25A Prewired: 220VAC (15A/440VAC optional) |
|
Machine Weight |
5,550 lbs. |
|
Shipping Weight |
5,650 lbs. |
|
Machine Dimensions |
100 x 43 x 68 in. |
|
Shipping Dimensions |
100 x 43 x 68 in. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
