- Description
- ISO 9001 certified
- American design and Taiwan quality machine
- With material front out tray
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 26 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- NOTE: THESE MACHINES CANNOT RUN ON PHASE CONVERTERS.
- 26” manual back gauge with one side operated handwheel.
- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
- Manufacturer
- Specifications
- Options/Accessories
- Safety fence for enclosure of the back side of the machine: $CALL
- Custom Freight
- Video

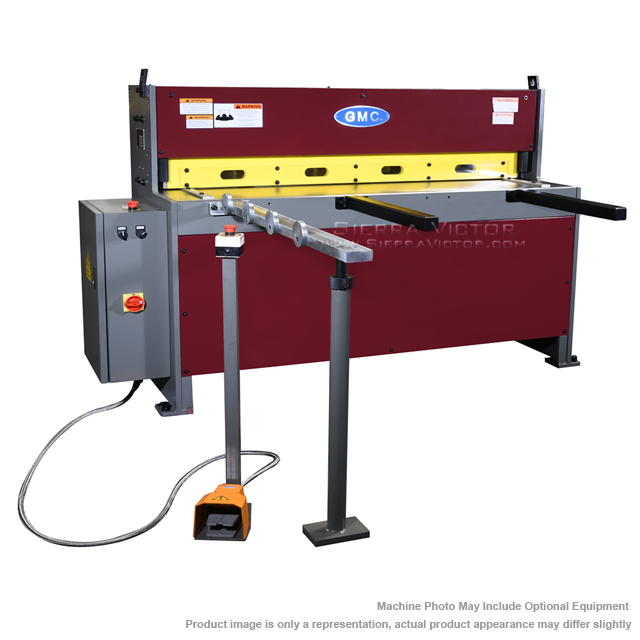

GMC 4 ft x 12 ga. Electrical Power Shear EPS-0412M
STANDARD EQUIPMENT:
ITEM: 4' x 12 ga. Electrical Power Shear
MANUFACTURER: GMC
MODEL: EPS-0412M
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Shears
Control:
Electrical
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
12 ga
Stainless Steel Capacity:
16 ga
Cutting Capacity |
Mild Steel |
4' x 12 Ga. |
Stainless Steel |
4' x 16 Ga. |
|
Blade Length |
52" |
|
Strokes per minute |
35 |
|
Worktable height |
32" |
|
Front support arm |
36" |
|
Back gauge Material front out tray |
26" Power back gauge |
|
Blade rake angle |
2 degree |
|
Main Motor |
4 HP, 220V/440V, 3ph |
|
Machine Weight |
3,350 lbs. |
|
Machine dimensions |
72" x 42" x 67" |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
