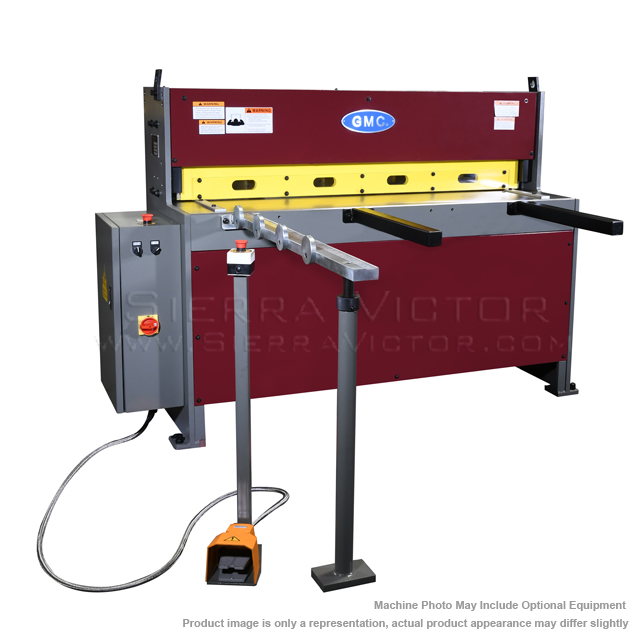

GMC 4 ft x 10 ga. Mechanical Shearing Machine EPS-0410M

• Shop our 4 FT Mechanical Shearing Machine that are capable of cutting up to 10 gauge mild steel and 14 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
• ISO 9001 certified
• American design and Taiwan quality machine
• HD all steel construction for maximum rigidity
• Precision driven gearbox
• Full length 30 strokes per minute
• 60” long squaring arm with inch / mm scale
• spring hold-downs
• high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
• 2-edge indexable upper blade and 4-edge indexable bottom blade
• Full length with full view finger guard
• Front supports and (2) side gauges
• Safety type foot pedal control
• Jog, single continuous auto operation modes
• One year warranty for parts
• DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
• This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

STANDARD EQUIPMENT:

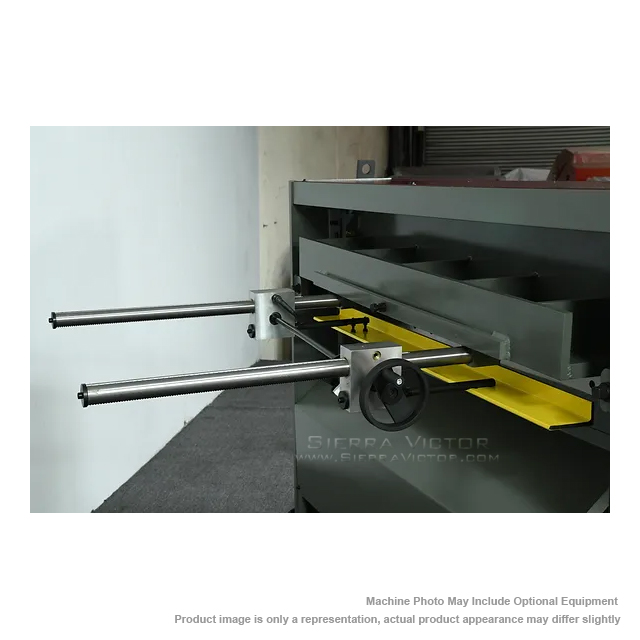

• 26" manual back gauge with one side handwheel

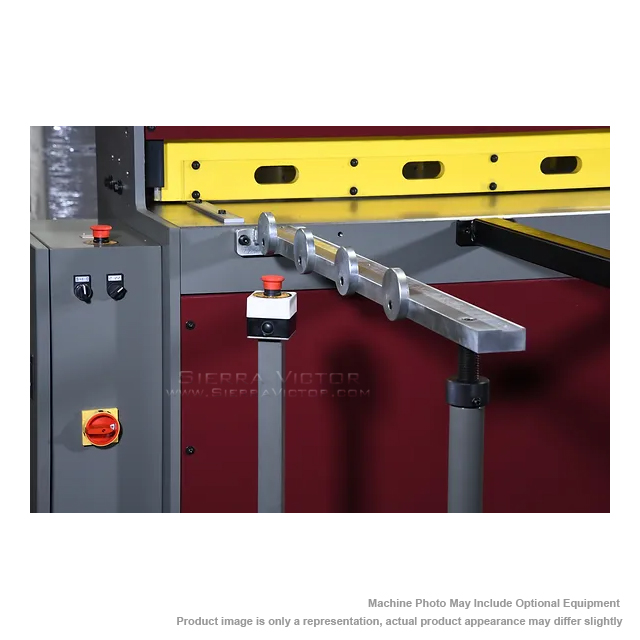

• 60" long squaring arm with inch / mm scale, mounted on right side of the table
• 2 each 24" front support arms
• full length finger guard
• Removable safety foot pedal control
• One set of upper & lower blades
