- Description
- ISO 9001 certified

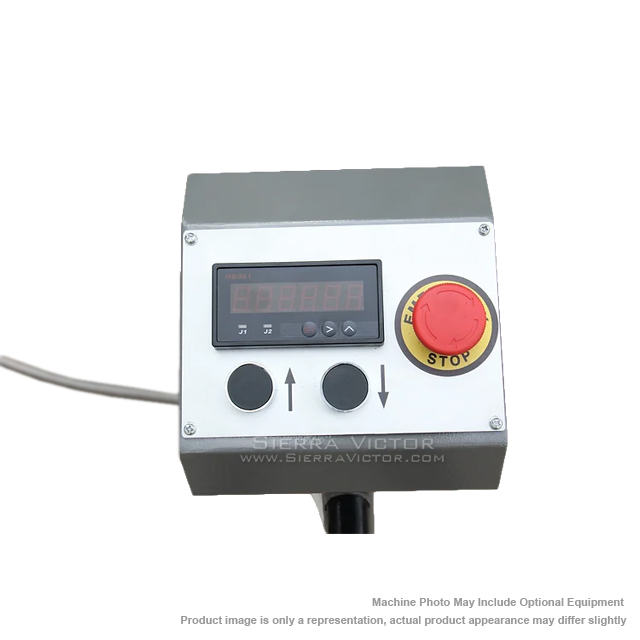

- Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts.
- One handle to control pinch roll up/down, more convenient and efficiency
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor

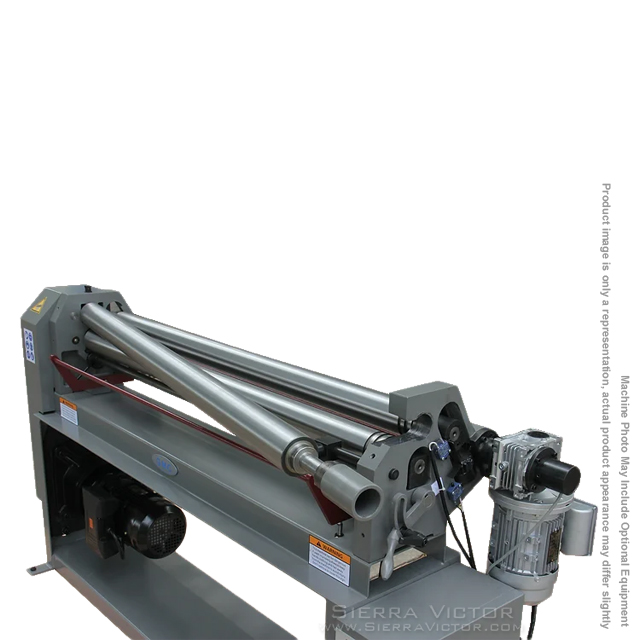

- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1/4" roll opening
- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- All rolls run forward and reverse
- Safety type removable foot pedal

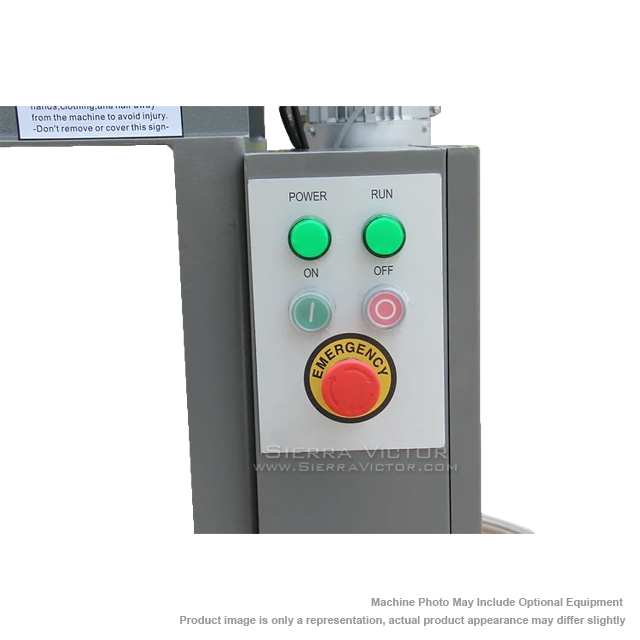

- Overload protection and disconnect switch
- One year warranty for parts
- Cone attachment
- Electrical cabinet
- Removable safety foot pedal
- Manufacturer
- Specifications

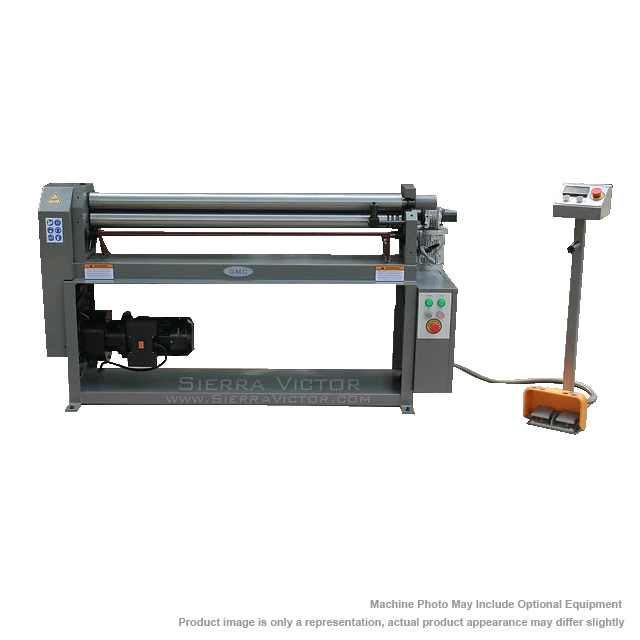

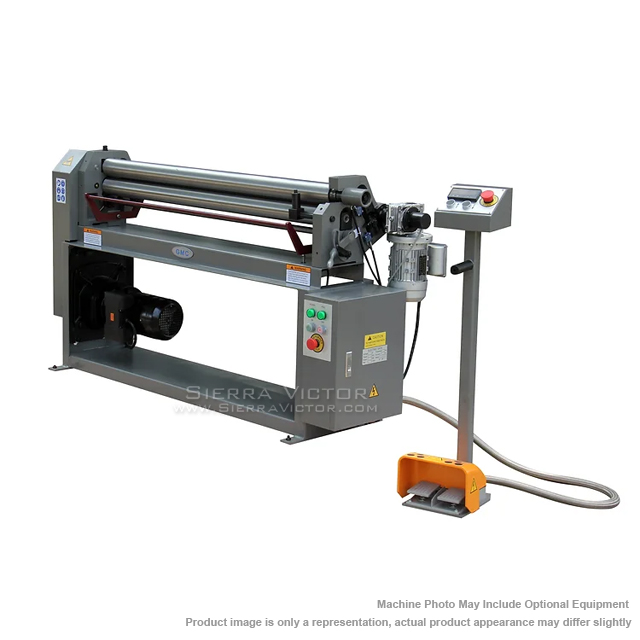

GMC Phase 4 ft x 14 ga. Power Slip Roll Machine | 1-Phase PSR-5014E-1PH
STANDARD EQUIPMENT:
ITEM: 4 ft (50 in.) x 14 ga. Power Slip Roll Machine | 1-Phase
MANUFACTURER: GMC
MODEL: PSR-5014E-1PH
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Slip Rolls
Control:
Power
Material Type:
Metal
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
14 ga
Stainless Steel Capacity:
18 ga
MODEL |
PSR-5014E-1PH |
Rolling Capacity: Mild steel |
50 in. x 14 Ga. |
Rolling Capacity: Stainless Steel |
50 in. x 18 Ga. |
Rolling Capacity: Soft aluminum |
50 in. x 10 Ga. |
Min. thickness capacity |
50 in. x 26 Ga. |
Rolls size, length x diameter |
50 x 3 in. |
Min. roll bending diameter capacity |
3-1/2 in. |
Roll Speed |
201 in. / min |
Rolls opening |
1/4 in. |
(3) Grooves size |
5/16 in., 3/8 in., 1/2 in. |
Main Motor |
2 HP, 220V,
1 phase |
Machine Dimensions |
68 x 32 x 49 in. |
Net Weight |
985 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
