- Description
- ISO 9001 certified
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1” roll opening
- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- All rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
- Electrical cabinet
- Removable safety foot pedal
- Manufacturer
- Specifications
GMC 4 ft (50 inch) x 16 ga. Powered Slip Roll (1 Phase) PSR-5016-1PH
STANDARD ITEMS:
ITEM: 4 ft (50 inch) x 16 ga. Powered Slip Roll (1 Phase)
MANUFACTURER: GMC
MODEL: PSR-5016-1PH
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Slip Rolls
Control:
Power
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
MODEL |
PSR-5016-1ph |
Rolling Capacity: Mild steel |
50” x 16 Ga. |
Rolling Capacity: Stainless Steel |
50” x 20 Ga. |
Min. thickness capacity |
50” x 26 Ga. |
Rolls size, length x diameter |
50” x 3” |
Min. roll bending diameter capacity |
3-1/2" |
Roll Speed |
201” / min |
Rolls opening |
1/4" |

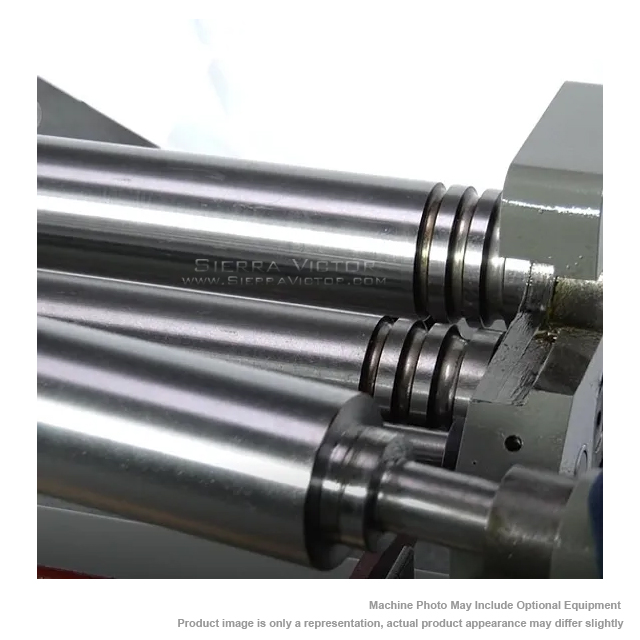

(3) Grooves size |
5/16”, 3/8”, 1/2” |
Main Motor |
1-1/2 HP, 220V, 1PH |
Machine Dimensions |
68" x 28" x 47" |
Net Weight |
828 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
