GMC 10 ft x 10 ga Power Bending Rolls PBR-1010E

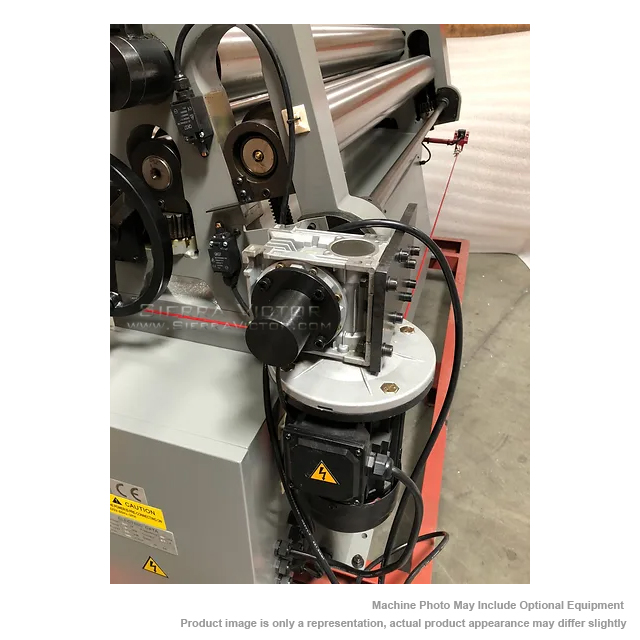

• This machine has a 7-1/2 HP Motor, rated at 220V three phase.Power bending roll up/down with push button & display. 6.70" Rolls.
• SO 9001 certified
• Taiwan machines
• All (3) rolls are hardened rolls, up to 50-52 HRC
• 3-rollers are driven to perform high accuracy
• Adjustable cone attachment included

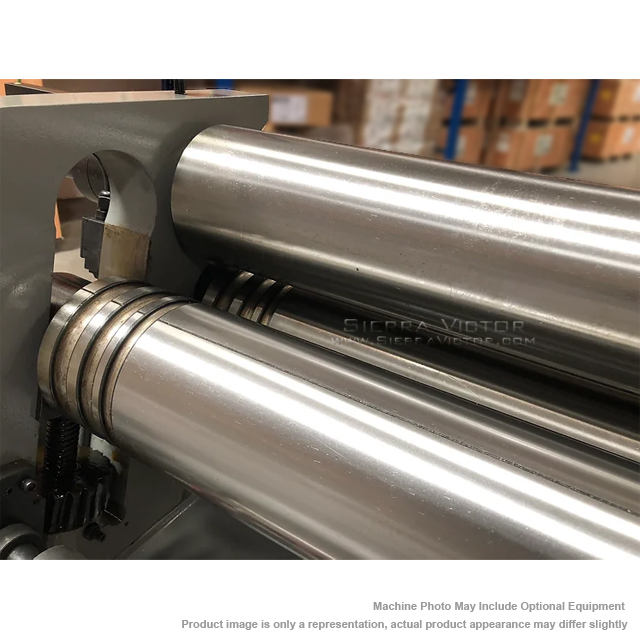

• 3/8", ½" and 5/8" grooves on rollers
• One wheel one-side operated for bending roll
• One wheel one-site operated for pinch roll (E model is powered)
• Heavy duty casting frame
• Heavy duty all steel welded construction
• 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
• Quiet running operation
• Easy swing-out top roller
• Safety line all around the machine for emergency stop
• All rolls run forward and reverse
• Safety type forward/reverse foot pedal
• Power source 220V, (option: 440V, 3 phase)
• One year industrial warranty for parts
• *This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
• *Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us

STANDARD ITEMS:

• Adjustable cone attachment
• 3/8", ½" and 5/8" grooves on rollers
• All (3) hardened rolls
• Removable safety foot pedal
• Operation & parts manual
• Orange color front cover is optional.
• E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
