- Description
- ISO 9001 certified
- Taiwan machines
- All (3) rolls are hardened rolls as standard feature
- 3-rollers are driven to perform high accuracy
- Adjustable cone attachment included

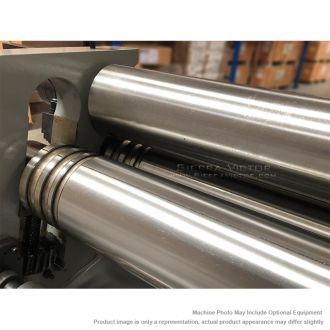

- 3/8”, 1/2” and 5/8” grooves on rollers

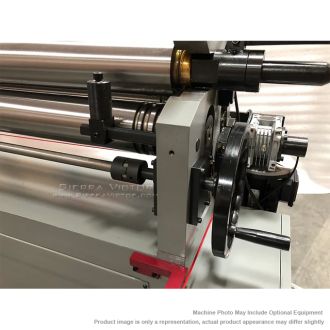

- One wheel one-side operated for bending roll
- One wheel one-site operated for pinch roll ( E model is powered )
- Heavy duty casting frame
- Heavy duty all steel welded construction
- 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
- Quiet running operation
- Easy swing-out top roller
- Safety line all around the machine for emergency stop
- All rolls run forward and reverse
- Safety type forward/reverse foot pedal
- Power source 220V, ( option: 440V, 3 phase )
- One year industrial warranty for parts
- Adjustable cone attachment
- 3/8”, 1/2” and 5/8” grooves on rollers
- All (3) hardened rolls
- Removable safety foot pedal
- Operation & parts manual

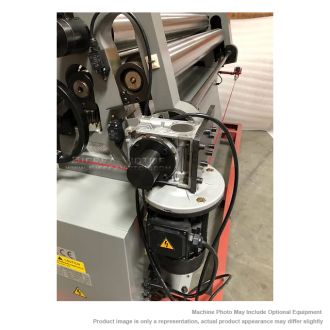

- E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
- Manufacturer
- Specifications
- Video
GMC 8 ft x 10 gauge Heavy Duty Power Bending Roll PBR-0810E
STANDARD ITEMS:
ITEM: 8 ft x 10 gauge Heavy Duty Power Bending Roll
MANUFACTURER: GMC
MODEL: PBR-0810E
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Plate Bending Rolls
Control:
Power
Metalworking
Material Length:
8 ft (96 in.+)
Mild Steel Capacity:
10 ga
Stainless Steel Capacity:
14 ga
|
MODEL
|
PBR-0810E
|
|
Capacity: Mild Steel
|
8’2” x 10 Ga
|
|
Capacity: Stainless Steel
|
8’2” x 14 Ga
|
|
Roll Diameter
|
6"
|
|
Min. Bending Dia.
|
8"
|
|
Pre-Bend
|
0.12"
|
|
Rolls Speed (ft. / min)
|
17
|
|
Rolls Opening
|
1/2"
|
|
Main Motor
|
5 HP, 220V or 440V, 3-phase
|
|
Overall Dimensions (LxWxH)
|
132" x 35" x 56"
|
|
Approx. Weight
|
4,550 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
