- Description
- Our 70 ton press brake are equipped with a two axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
- ISO 9001 certified
- Meet OSHA and CE safety standard

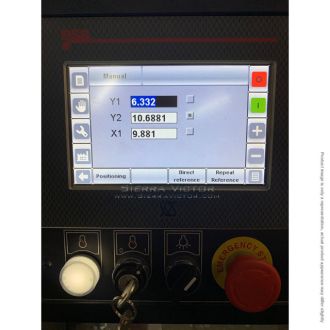

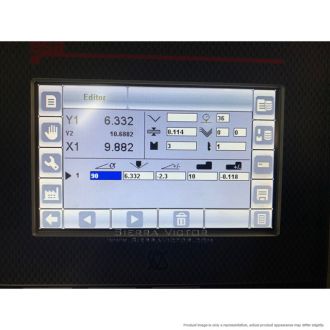

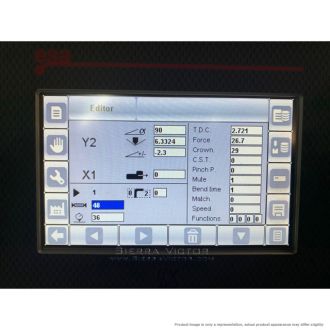

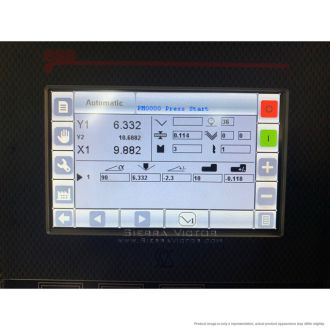

- ESA (Italy) Model 625, 2 Axis CNC Controller
- Die library, offline programming, stores thousands of programs
- Programmable Angle/ Angle Correct
- Germany Rexroth hydraulic system
- Yaskawa Servo motor and Drives
- Schneider electrical components
- Hydraulic crowning
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
- ESA (Italy) Model 625, 2 Axis CNC Controller
- (2) 24" front support arms, Quick Release for easy positioning

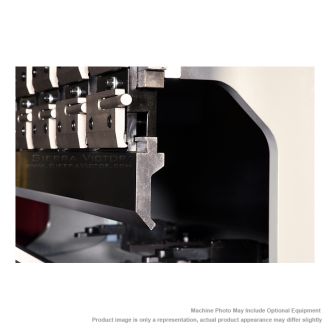

- Quick release segmented (American Style Tooling) punch holder
- Full Length Gooseneck Punch HRC 50 (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)

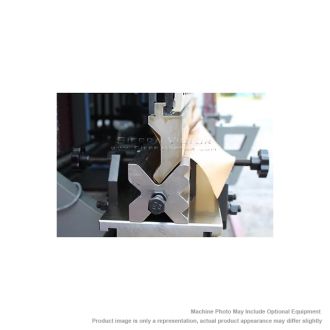

- Full Length Vee Die with 6 assorted sizes HRC 50
- Lntech Light Curtain System

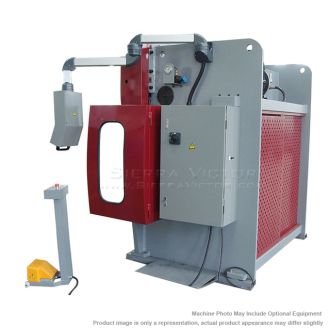

- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard
- For ¼" tooling: Need single V die holder.........call for pricing
- 4' of punch and 2.5” single V Die , Flame hardened with safety tang....call for pricing
- On-site training, one day…………………………….. call for pricing
- Manufacturer
- Specifications
- Options/Accessories
- For ¼" tooling: Need single V die holder.........call for pricing
- 4' of punch and 2.5” single V Die , Flame hardened with safety tang....call for pricing
- On-site training, one day…………………………….. call for pricing
- Video

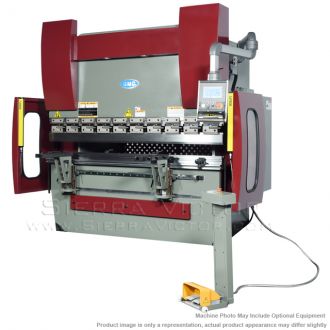

GMC 70 Ton x 6 ft CNC Press Brake with 2-Axis ESA S625 CNC Controller HPB-7006CNC
STANDARD EQUIPMENT:
OPTIONAL ITEMS:
ITEM: 70 Ton x 6 ft CNC Press Brake with 2-Axis ESA S625 CNC Controller
MANUFACTURER: GMC
MODEL: HPB-7006CNC
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Press Brakes
Power Source:
Hydraulic
Metalworking
Pressure:
70+ Tons
Material Length:
6 ft (72 in.+)
Maximum pressure |
70 Tons |
Bending length capacity |
80" (6' 8")
|
Distance between uprights (housing) |
63" |
Ram Stroke travel |
6" |
Cylinder travel adjustment, max |
3-1/8" |
Table width |
6" |
Distance between table and ram |
15-1/4" |
Max Stacked Tooling Height |
8-1/2" |
Throat Depth |
10" |
Back Gauge Distance |
24" |
Back Gauge Repeatability |
.0039" |
Y Axis Repeatability |
.0039" |
Approach speed, inch / second |
3.14" |
Working speed , inch / second |
0.35" |
Return speed , inch / second |
2.36" |
Main motor |
7-1/2 HP, 3-Phase, 30 AMP Prewired: 220VAC (+/- 10%) |
Servo motor for back gauge |
1 HP, 3 Phase
220VAC (+/- 10%) |
Servo motor for bending angle setting |
1/2HP, 3 Phase
220VAC (+/- 10%) |
Hydraulic oil tank capacity |
52 Gal. |
Recommended Oil |
Hydraulic Oil Shell #68HD |
Machine weight |
8,650 lbs. |
Machine size, L x W x H |
103 x 63 x 87 in. |
Shipping Dimensions |
109 x 66 x 98 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
