- Description
- Our 70 ton press brake are equipped with a three axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
- ISO 9001 certified
- Meet OSHA and CE safety standard

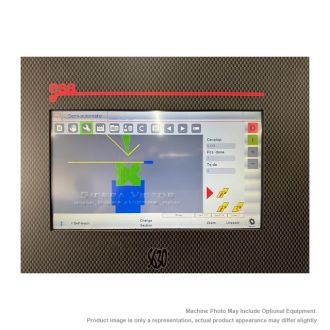

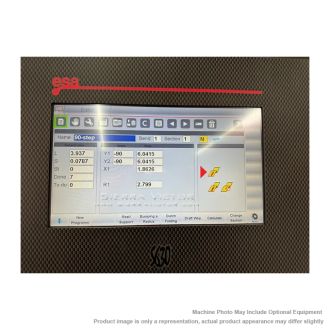

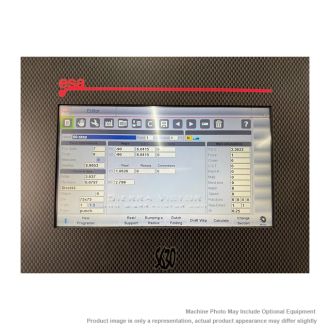

- ESA (Italy) Model 630, 3 Axis CNC Controller
- Die library, offline programming, stores thousands of programs
- Programmable Angle/ Angle Correct
- 10” Touch screen
- 3 Axis CNC Graphic Controller
- Y axis Ram with high precision linear encoder
- X servo Back gauge
- R programmable Back gauge height
- Line by line coding

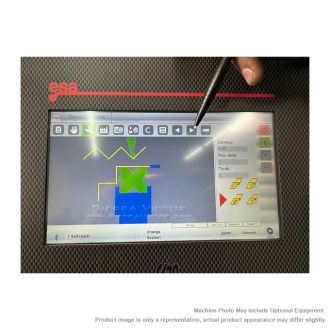

- 2D Graphic Drawing Mode
- Bend Sequence Optimization for collision detection
- Spread Length Calculation
- Germany Rexroth hydraulic system
- Yaskawa Servo motor and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
- ESA (Italy) Model 630, 3 Axis CNC Controller
- (2) 24" front support arms, Quick Release for easy positioning
- Quick release segmented (American Style Tooling) punch holder

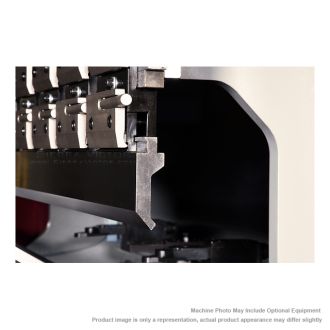

- Full Length Gooseneck Punch HRC 50 (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)

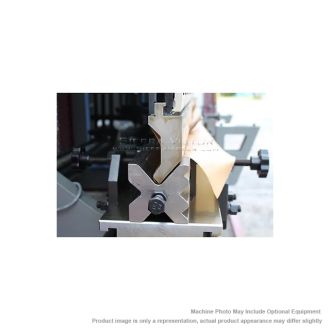

- Full Length Vee Die with 6 assorted sizes HRC 50
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard
- For ¼" tooling: Need single V die holder ...........call for pricing
- 4’ of punch and 2.5” single V Die , Flame hardened with safety tang..... call for pricing
- On-site training, one day………….. call for pricing
- Manufacturer
- Specifications
- Options/Accessories
- For ¼" tooling: Need single V die holder ...........call for pricing
- 4’ of punch and 2.5” single V Die , Flame hardened with safety tang..... call for pricing
- On-site training, one day………….. call for pricing
- Video
GMC 70 Ton x 6 ft 3-Axis CNC Press Brake HPB-7006CNC-3R
STANDARD EQUIPMENT:
OPTIONAL ITEMS:
ITEM: 70 Ton x 6 ft CNC Press Brake with 3-Axis
MANUFACTURER: GMC
MODEL: HPB-7006CNC-3R
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Press Brakes
Control:
CNC
Power Source:
Hydraulic
Metalworking
Pressure:
70+ Tons
Material Length:
6 ft (72 in.+)
Maximum pressure |
70 Tons |
Bending length capacity |
80" (6' 8")
|
Distance between uprights (housing) |
63" |
Ram Stroke travel |
6" |
Cylinder travel adjustment, max |
3-1/8" |
Table width |
6" |
Distance between table and ram |
15-1/4" |
Max stacked tooling height |
8-1/2" |
Throat Depth |
10" |
Back Gauge Distance |
24" |
Back Gauge Repeatability |
.0039" |
Y Axis Repeatability |
.0039" |
Approach speed, inch / second |
3.14" |
Working speed , inch / second |
0.35" |
Return speed , inch / second |
2.36" |
Main motor |
7-1/2 HP, 3-phase 208V or 220V (please specify) |
Servo motor for back gauge |
1 HP, 220V or 208V, 3-phase
|
Servo motor for bending angle setting |
1/2 HP, 220V or 208V, 3-phase
|
Amperage draw |
30 Amp |
Hydraulic oil tank capacity |
52 Gal. |
Recommended Oil |
Hydraulic oil Shell# 68HD |
Machine weight |
8,650 lbs. |
Machine size, L x W x H |
103 x 63 x 87 in. |
Machine shipping dimensions |
109 x 66 x 98 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
