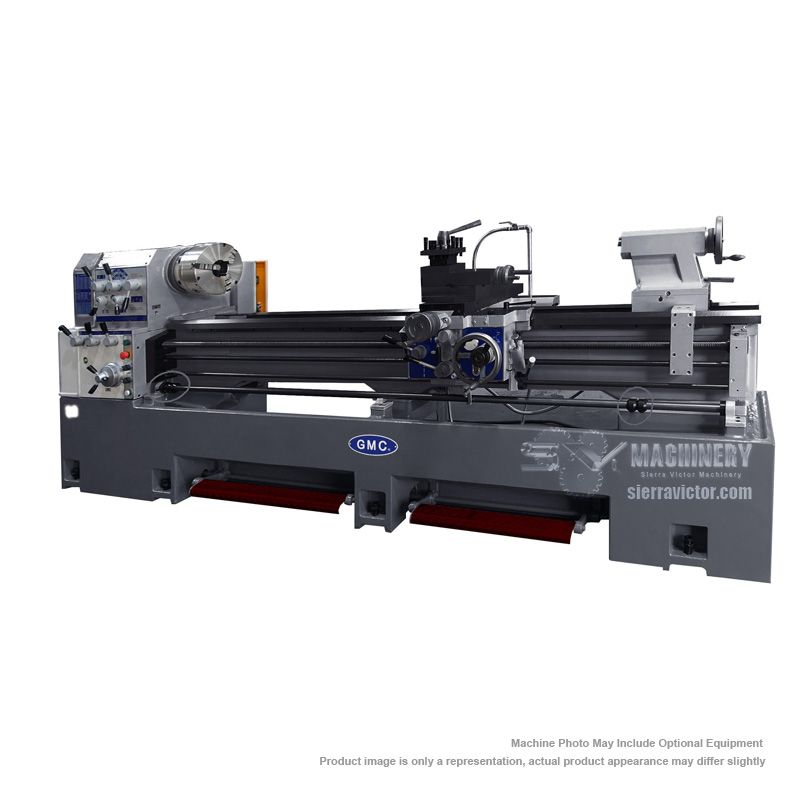

GMC 26 x 120 inch Heavy Duty Precision Gap Bed Lathe GML-26120T

• Made in Taiwan
• Meehanite casting – high performance cast iron
• ISO 9001 certified
• Large spindle bore 4-3/4” (120mm)
• Heavy Duty spindle D1-11
• Heavy Duty main motor 15HP
• 16 spindle speeds from 10-1,000 rpm, 12 speeds
• 2-speed tailstock
• 54 kinds of inch threads, and 54 kinds of metric threads
• Threading and feeding rate change without changing gears
• Spindle is balanced, hardened and precision ground
• Spindle is supported at 3-point by high precision bearings
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feed box
• One year industrial warranty for parts
• *Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
• **This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

STANDARD EQUIPMENT:

• Free CARMAR DRO, installed
• Rapid traverse on carriage on Longitudinal way
• Automatic kick-out longitudinal carriage stop system
• 2-speed tailstock
• 12” 3-jaw chuck with top reversible jaws, direct mount
• 20” Face plate
• 12” steady rest with roller jaws
• 5” follow rest with roller jaws
• Removeable gap
• 4-way tools post
• Foot brake
• Halogen Work light and coolant system
• Splash guard on carriage
• Dead center
• Thread chasing dial
• Reducing sleeve MT7/MT5 for spindle
• Tool box and leveling pads
