- Description
- ISO 9001 certified
- Large spindle bore 4-1/8”
- Heavy Duty spindle D1-8
- Heavy Duty guideway width 16”
- Heavy Duty main motor 10HP
- 16 spindle speeds from 25-1,600 rpm, 16 speeds
- 54 kinds of inch threads, and 54 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
- Taper turning attachment

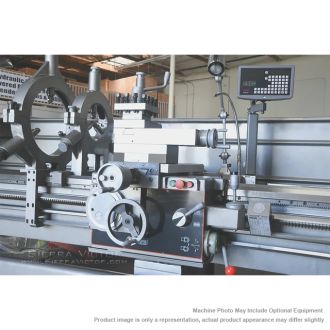

- SINO DRO + Glass Scales
- Carriage Stop

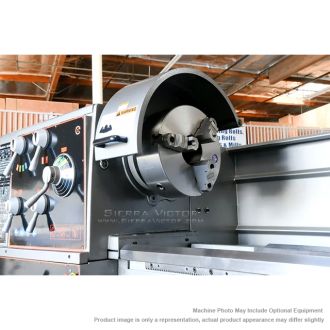

- 12” 3-jaw chuck with top reversible jaws, direct mount
- 16” 4-jaw chuck, direct mount
- 18” Face plate
- 7-1/2” large steady rest with roller jaws
- 3” follow rest
- Removeable gap
- 4-way tools post
- Foot brake
- Halogen Work light and coolant system
- Full length splash guard
- Dead centers
- Thread chasing dial
- Tool box and leveling pads
- Manufacturer
- Specifications
- Options/Accessories
- Video

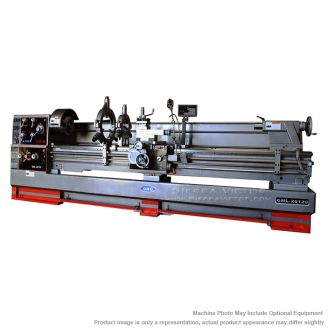

GMC 26x120 in. Metal Lathe with 2-Axis DRO GML-26120
STANDARD ACCESSORIES:
ITEM: 26 x 120 inch Metal Lathe with 2-Axis DRO
MANUFACTURER: GMC
MODEL: GML-26120
Manufacturer:
GMC Machine Tools
Lathes
Lathe Size:
26" x 120"+
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Material Type:
Metal
MODEL
|
GML-26120
|
Max. swing over bed |
26" |
Max. length of workpiece |
120" |
Max. swing over cross slide |
17-1/4" |
Max. Swing in gap |
35-3/8" |
Width of Bed |
16" |
Effective length in gap to spindle |
9" |
Effective length in gap to chuck jaws |
4-1/2" |
Spindle bore |
4-1/8", D1-8 |
Taper of spindle center |
M.T. #5 |
Spindle speeds |
25-1,600 rpm / 16 steps |
Longitudinal feeds |
0.0016-0.055 IPR, 25 kinds |
Cross feeds |
0.0008-0.027 IPR, 25 kinds |
Inch threads |
80-7/16 TPI, 54 kinds |
Metric threads |
0.45-120 mm , 54 kinds |
Diametral pitch threads |
7/8-160 DP , 42 kinds |
Max. travel of top slide |
9" |
Max. travel of cross slide |
14-1/2" |
Spindle length w/o chuck |
20-1/2" |
Leadscrew length X TPI |
1-1/4” x 4 TPI |
Diameter of tailstock quill |
3-1/2" |
Max. travel of tailstock quill |
9-1/4" |
Taper of quill center |
MT 5 |
Main Motor |
10HP, 220V/40A or 440V/20A, 3 phase |
Rapid traverse motor |
1HP, 220V or 440V, 3 phase |
Coolant pump motor |
1/8 HP, 220V or 440V, 3 phase |
Net Weight, approx. |
9,850 lbs |
Overall Dimensions |
187 x 46 x 72 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
OUR PRICE |
3900-5160 |
ALORIS type QC tool post set, 6 pcs |
$CALL |
— |
15" large steady rest with roller jaws |
$CALL |
3900-5005 |
Live Center |
$CALL |
— |
Extra 7-1/2" large steady rest with roller jaws |
$CALL |
— |
Chuck guard with safety shut off |
$CALL |
