- Description
- ISO 9001 certified
- Meet OSHA and CE safety standard
- 48” NC table back gauge with fingers
- Max. 16 bends per program
- Upto 100 Program Storage

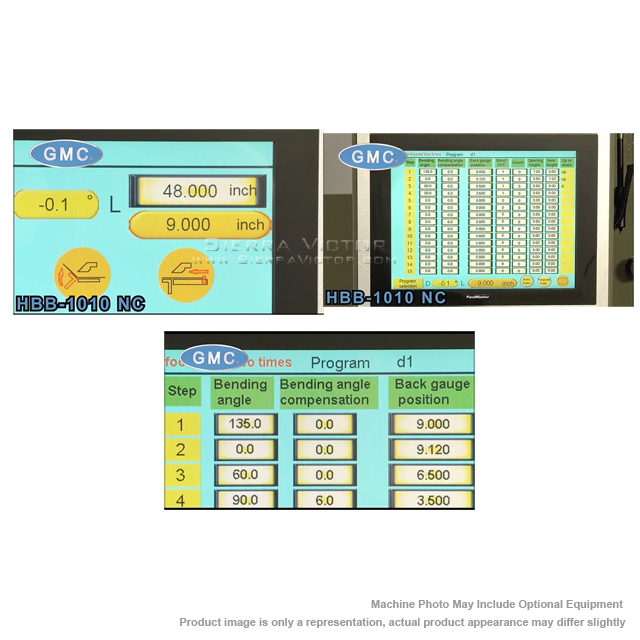

- Programmable Angle/ Angle Correct
- NC ram height control for open hemming

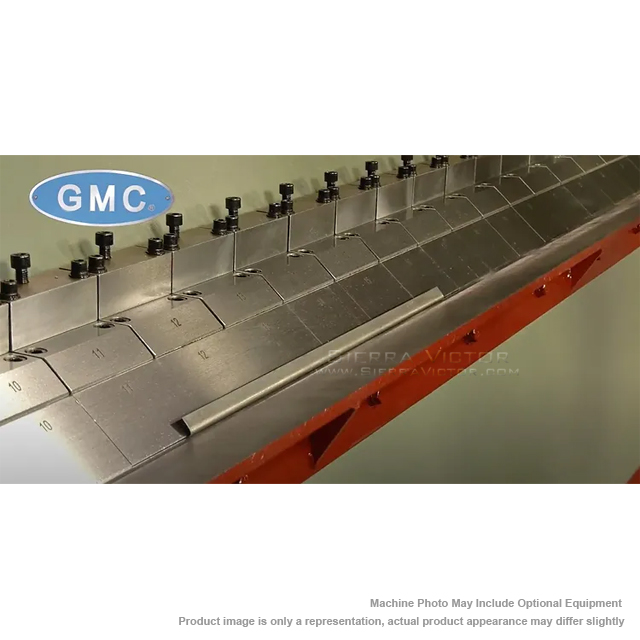

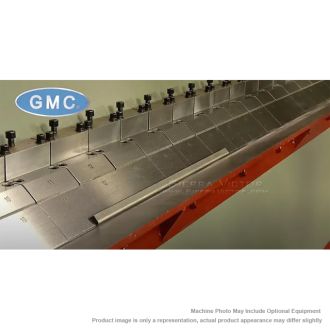

- Hardened fingers and table
- Germany Rexroth hydraulic system
- Yaskawa Servo motors and Drives

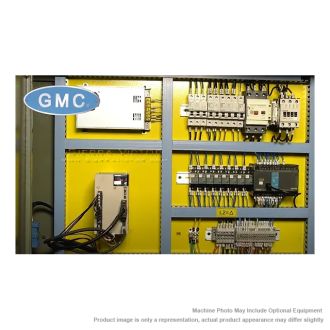

- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
- Manufacturer
- Specifications
- Options/Accessories
- One piece 10 ft straight finger -Call for pricing
- One day on-site training - Call for pricing
- Video

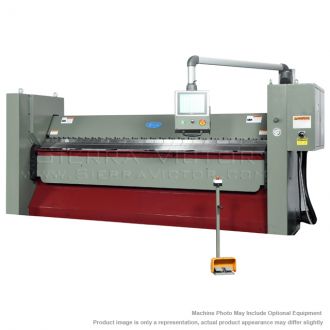

GMC 10 ft. x 10 ga. Hydraulic Box and Pan Brake with NC Controller HBB-1010NC
ITEM: 10 ft. x 10 ga. Hydraulic Box and Pan Brake with NC Controller
MANUFACTURER: GMC
MODEL: HBB-1010NC
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Brakes - Box & Pan
Control:
NC
Power Source:
Hydraulic
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
10 ga
Stainless Steel Capacity:
14 ga
Capacity |
Mild Steel (hot roll) 60K PSI |
10 ga. |
Stainless Steel 85 K PSI |
14 ga. |
|
Soft aluminum 28K PSI |
1/4 in. |
|
Hemming max thickness |
22 ga. |
|
Bending length capacity |
10 ft. |
|
Bend Angel Degree, programmable |
135 degree |
|
Max. Box Depth |
153mm = 6.02 in. |
|
Large Beam Opening/Clamping Opening |
3 in. |
|
Beam front/back adjustment |
1 in. |
|
Min. Reverse Bend |
1 in. |
|
Max. Table Back Gauge Distance |
48-3/8 in. |
|
Min. Table Back Gauge Distance |
1/4 in. |
|
Back Gauge Repeatability |
0.0039" |
|
Back Gauge Table Height |
35-3/4 in. |
|
Assorted fingers |
3 in. 4 in. 5 in. 6 in. |
|
Main Motor |
10HP, 220V/208V, 3ph (35amps) |
|
Servo Motor for back gauge |
1 HP |
|
Hydraulic Oil Tank Capacity |
32 Gal. |
|
Recommended hydraulic oil |
Shell #68 or equivalent |
|
Machine Weight |
11,550 lbs. |
|
Shipping Weight |
11,850 lbs. |
|
Machine Dimensions |
175 x 93 x 76 in. |
|
Shipping Dimensions |
163 x 85 x 78 in. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
