- Description
- Taiwan Machines
- ISO 9001 certified

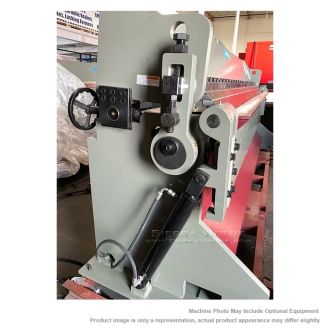

- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 24” Manual Rear-operated backgauge
- 1 manual beam adjustment ( front and back )
- Min. reverse bend is 3/4 (20mm)
- Heavy welded all steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
- Total pieces fingers assortment:
- HBB-1010 & 1014: 3/6pcs, 4/4pcs, 5/10pcs, 6/6pcs
- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch

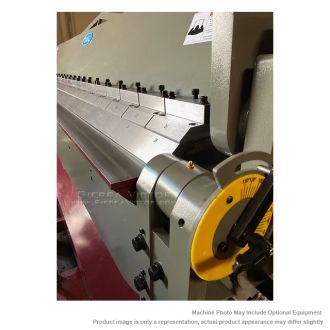

- Assorted fingers
- 24” Manual Rear-operated backgauge

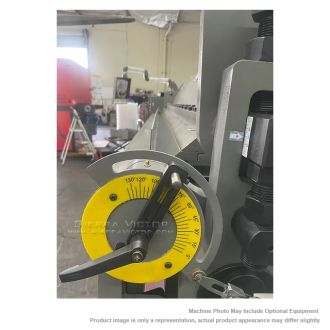

- Angle set up dial
- Hydraulic clamping system

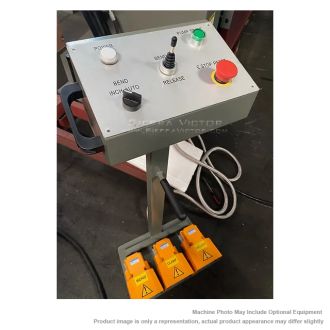

- Foot pedal control for hydraulic clamping & auto mode
- Manufacturer
- Specifications
- Options/Accessories
- Optional Full Length Straight Finger
- Safety fence for enclosure of the front side of the machine
- Video

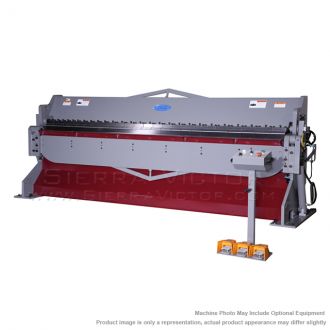

GMC Hydraulic Box & Pan Brake HBB-1010
STANDARD ITEMS:
Manufacturer:
GMC Machine Tools
|
Max. Bending Length
|
10'
|
|
Capacity Mild Steel
|
10 Ga.
|
|
Capacity Stainless Steel
|
12 Ga.
|
|
Bend Angle
|
135
|
|
Max Box Depth
|
6"
|
|
Large Beam Opening
|
3"
|
|
Oil Tank Gal.
|
25
|
|
Main Motor
|
10 HP, 220V/440V, 3PH
|
|
Overall Dimensions
|
157" x 46" x 69"
|
|
Mach Weight
|
8,150 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
