- Description
- Two Rolls are Powered
- Rolls are Hardened
- Rolls Shafts are Special Steel, Hardened and Ground
- Standard Rolls Handle Many Shapes
- Lateral Guide Rolls
- Two-Speed Motor, Two Rolling Speeds
- Horizontal and Vertical Working Positions
- Dual Foot Control
- Manufacturer
- Specifications
- Options/Accessories
- Pipe/Tube/Shape Bending Rolls
- Electronic Digital Readout (LED)
- Leg-In Guide Rolls
- Custom Freight

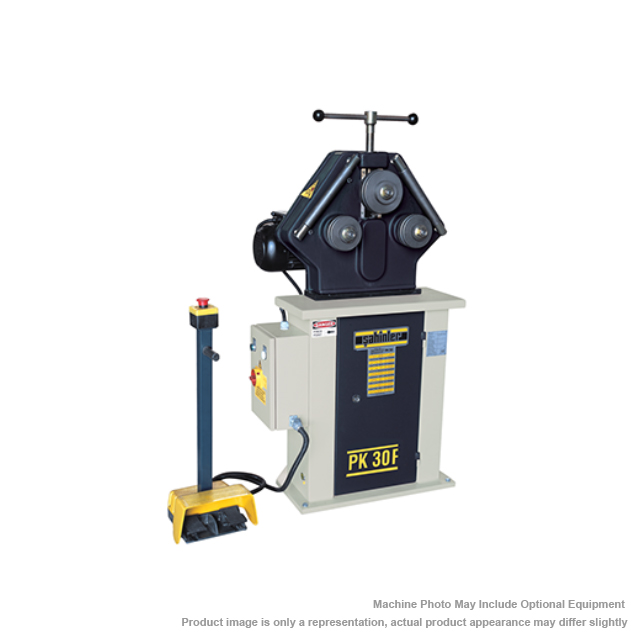

COLE-TUVE 1-1/2" x 1-1/2" x 3/16" Pyramid Angle, Pipe & Shape Bending Roll PK-30F
ITEM: 1-1/2" x 1-1/2" x 3/16", 1-1/2" Pipe Pyramid Angle, Pipe & Shape Bending Roll
MANUFACTURER: COLE-TUVE
MODEL: PK-30F
Manufacturer:
Cole-Tuve
Machine Type
Machine Category:
Benders - Angle Roll
|
Shaft Diameter
|
1.18"
|
|
Dia. Rolls, Upper/Lower
|
5.83" / 4.65"
|
|
Driven Rolls
|
2
|
|
Rolling Speed, FPM
|
6-1/2 & 13
|
|
Rolls Adjustment
|
Manual
|
|
Working Plane
|
Horizontal / Vertical
|
|
Motor HP
|
1 & 1-1/4 (Please Specify)
|
|
Approx. Weight - lbs.
|
570
|
|
Apporx. Overall Size
|
24" x 32" x 57"
|
The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
