- Description
- Heavily proportioned steel welded frame for rigidity and stability
- 2 - roll direct gear drive with brake-motor
- Dual rolling speed
- Shafts and gears are hardened and ground and rotate on amply-sized bearings
- Standard rolls handle many shapes
- Can be used for rolling either horizontally or vertically
- CE Certified
- Additionally, on this machine, cap rail can be rolled
- Various other materials can be rolled into spirals
- Can be twisted for pickets
- The machine can be equipped with an electronic digital readout for the positions of the adjustable roll
- Any or all with available options
- Standard rolls for some of the shapes listed above; others require special rolls, details on request
- 2 - lateral guide rolls
- Two rolling speeds
- Electric motor with brake
- Electrics for 3/60/220 or 3/60/220 operation.
- Low Voltage at the controls
- Emergency stop control
- Movable foot control
- Scale for positions of adjustable roll
- Manufacturer
- Specifications
- Options/Accessories
- This machine is also available for operation on single phase (variable speed).
- Video

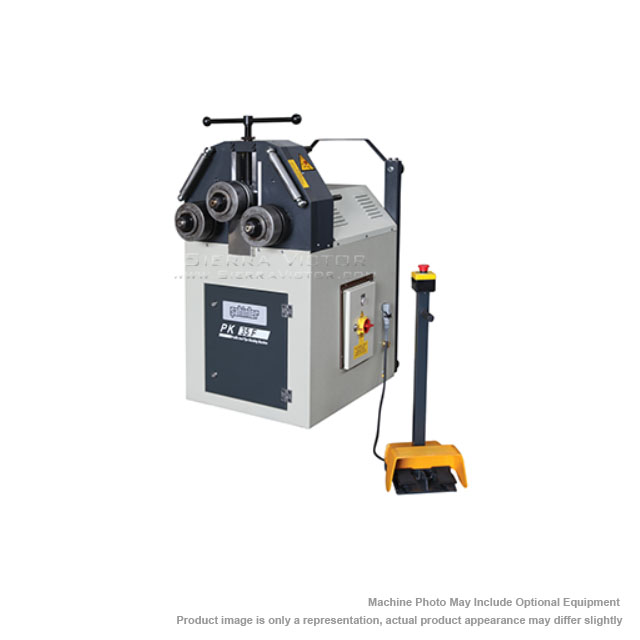

COLE-TUVE 2" x 2" x 1/4" Angle and Shape Bending Roll PK-35
STANDARD EQUIPMENT:
ITEM: 2" x 2" x 1/4" Angle and Shape Bending Roll
MANUFACTURER: COLE-TUVE
MODEL: PK-35
Manufacturer:
Cole-Tuve
Machine Type
Machine Category:
Benders - Angle Roll
Angle iron, leg-out
|
2" x 2" x 1/4"
|
||
Angle iron, leg-in
|
2" x 2" x 1/4" (SP)
|
||
Flat bar on flat
|
4" x 9/16"
|
||
Flat bar on edge
|
2-3/8" x 3/8"
|
||
"T" iron, leg out or leg in
|
2-3/8" x 1/4"
|
||
Square bar
|
1-3/8"
|
||
Round Bar
|
1-3/8" (SP)
|
||
Channel iron, leg out and leg in
|
3-1/8"
|
||
Pipe
|
2" Schedule 40 (SP)
|
||
Round Tubing
|
2-3/4" x 14 ga. (SP)
|
||
Cap Rail
|
up to and including 2-1/2" (SP)
|
||
Square Tubing
|
2" x 2" x 11 ga.
|
||
Rectangular Tubing, hard way
|
2-3/4" x 1-3/16" x 14 ga.
|
||
Diameter of the standard rolls
|
6.10"
|
||
Diameter of the hardened and ground roll shafts
|
1.97"
|
||
Rolling Speed
|
7-1/2 & 15 FPM
|
||
Adjustment of upper roll
|
Manual
|
||
Motor HP
|
2
|
||
Working plane
|
horizontal/vertical
|
||
Dimensions (approx.) Across, front to back, height includes top roll adjustment
|
30" x 40" 56"
|
||
Weight (approx.)
|
880 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
