- Description
- Made in Taiwan
- All rolls are made of polished, turned, and ground high grade carbon steel
- Gear-driven rolls
- Ridgid construction for long life and precision operation.
- Front mounted handle to life upper toll for easy workpiece removal.
- Standard three wire grooves.
- Removable foot pedal control
- Manufacturer
- Specifications
- Custom Freight

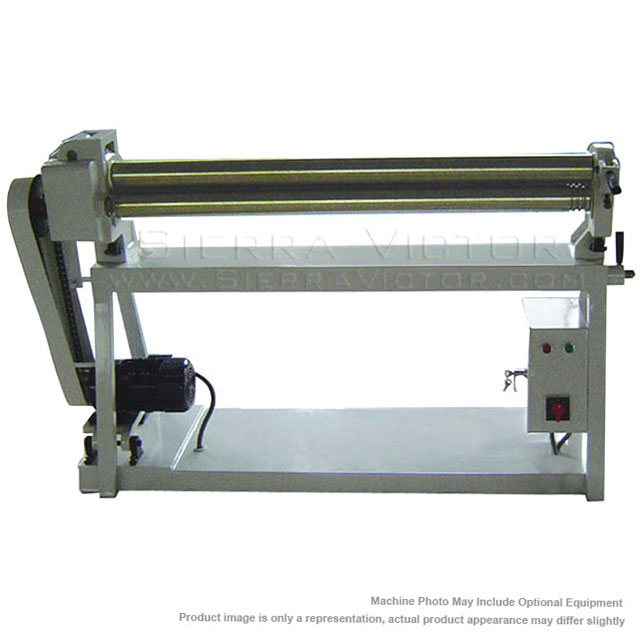

BIRMINGHAM 50" x 16 ga. Power Slip Roll X-5016E
ITEM: 50" x 16 ga. Power Slip Roll
MANUFACTURER: BIRMINGHAM
MODEL: X-5016E
Manufacturer:
Birmingham
Machine Type
Machine Category:
Slip Rolls
Control:
Power
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
|
Forming Width
|
50"
|
|
Capacity Mild Steel
|
16 ga.
|
|
Diameter of Roll
|
3"
|
|
3 Wire Grooves
|
5/16", 3/8", 1/2"
|
|
Forming Radius Min.
|
1-1/2"
|
|
Roll Speed
|
16 RPM
|
|
Motor
|
1 HP, 3Ø
|
|
Overall Dimensions (L x W x H)
|
67" x 26" x 45"
|
|
Net Weight (lbs.)
|
780
|
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
