- Description
- All rolls are made of polished, turned, and ground high grade carbon steel
- Gear-driven rolls
- Rigid construction for long life and precision operation.
- Front mounted handle to life upper toll for easy workpiece removal.
- Standard three wire grooves.
- Manufacturer
- Specifications
- Custom Freight

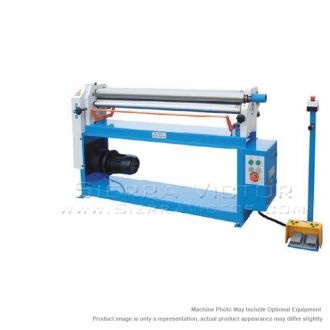

BIRMINGHAM Power Slip Roll X-5016E-C
ITEM: 50" x 16 ga. Power Slip Roll
MANUFACTURER: BIRMINGHAM
MODEL: X-5016E-C
Manufacturer:
Birmingham
Machine Type
Machine Category:
Slip Rolls
Control:
Power
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
Forming Width |
50"
|
Capacity Mild Steel |
16 ga.
|
Diameter of Roll |
3"
|
3 Wire Grooves |
5/16", 3/8", 1/2"
|
Forming Radius Min. |
1-1/2"
|
Roll Speed |
18 RPM
|
Motor |
1 HP |
Overall Dimensions (L x W x H) |
69" x 24" x 50"
|
Net Weight (lbs.) |
617 |
Gross Weight |
750 |
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
