- Description
- 3 HP Main motor
- No change gears required
- 16 speeds from 45-1,800 RPM
- D1-4 Spindle with 1-1/2" bore
- 40 Kinds of inch threads from 4-112 TPI
- Removable gap bed for large diameter work
- Magnetic controls and spindle foot brake
- T-slotted compound and front pull-out chip tray
- Main spindle hardened and precision ground
- Bed made of fine grain high tensile cast iron
- Bedways induction hardened and precision ground
- All gears and shafts hardened and precision ground
- Main spindle supported at 3-point by precision bearings
- 6" 3 JAW CHUCK
- 8" 4 JAW CHUCK
- 10" FACE PLATE
- 3-3/4" STEADY REST
- FOLLOW REST
- GAP
- 4 WAY TOOL POST
- STANDS
- THREAD CHASING DIAL
- ( 2 ) DEAD CENTERS
- REDUCING SLEEVE
- FULL LENGTH SPLASH GUARD
- CHIP TRAY
- FOOT BRAKE
- HALOGEN WORKLIGHT
- COOLANT SYSTEM
- Manufacturer
- Specifications
- Options/Accessories
- Quick Tool Changer
- Halogen Work Light
- Taper Turning Attachment
- 5-C Lever Type Collet Closer
- Custom Freight

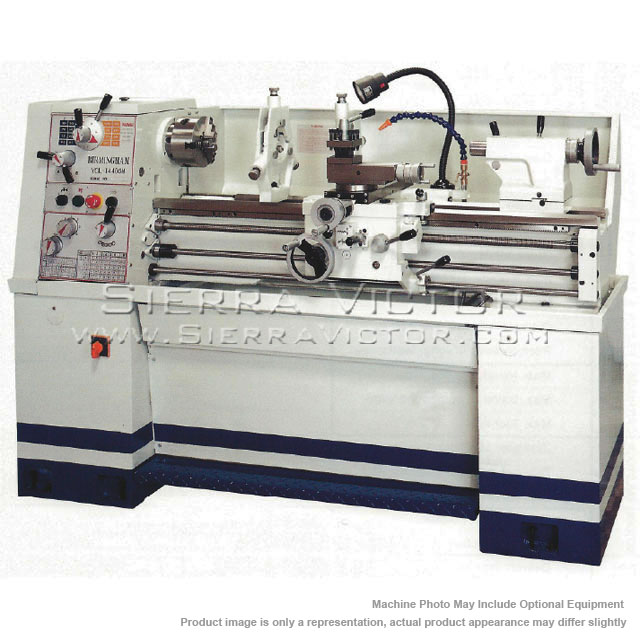

BIRMINGHAM 14" x 40" BIRMINGHAM High Speed Precision Gap Bed Lathe YCL-1440GH
STANDARD EQUIPMENT:
ITEM: 14" x 40" High Speed Precision Gap Bed Lathe
MANUFACTURER: BIRMINGHAM
MODEL: YCL-1440GH
Manufacturer:
Birmingham
Lathes
Lathe Size:
14" x 40"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Gap Bed
CAPACITIES |
Max. Swing Over Bed |
14" |
Distance between Centers |
40" |
|
Max. Swing Over Carriage |
8-5/8" |
|
Max. Swing in Gap |
20" |
|
Effective length in gap |
6-1/4" |
|
Width of Bed |
8-1/8" |
|
HEADSTOCK |
Spindle Nose |
D1-4 |
Diameter of Spindle thru Bore |
1-1/2" |
|
Spindle Table (with sleeve) |
M.T. #5 ( M.T.#3) |
|
Spindle Speeds |
45-1800 RPM, 16 steps - 45, 70, 90, 108, 140, 165, 215, 255, 330, 385, 510, 585, 770, 900, 1170, 1800 RPM |
|
FEEDS & THREADS |
Longitudinal feeds |
0.0012" - 0.0294" / REV., 40 Kinds |
Cross feeds |
0.0003" - 0.01" / REV., 40 Kinds |
|
Metric Threads |
0.45 - 7.5 mm (22 kinds) |
|
Inch Threads |
112 - 4 4 - 112 TPI (40 kinds) |
|
Diameter of long. leadscrew |
7/8" |
|
Pitch threads of long. leadscrew |
8 TPI |
|
CARRIAGE |
Max. Travel of Cross Slide |
7" |
Max. Travel of compound slide |
4" |
|
Max. tool size |
5/8" x 5/8" |
|
TAILSTOCK |
Diameter of Tailstock Quill |
2-3/4" |
Taper of Tailstock Quill Center |
M.T. #3 |
|
Max. Travel of Tailstock Quill |
4-3/4" |
|
WEIGHT & MOTOR |
Power of Main Motor |
3 HP, 220V, 3 Phase, 2-speed |
Power of coolant pump |
1/8 HP, 220V, 3 phase |
|
Overall Dimensions |
72" W x 31" L x 49" H |
|
Net weight (approx) |
2,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
