- Description
- Floor Stands are included
- 2 HP, 220V, 1 Phase Main Motor
- D1-4 Spindle With 1-1/2 inch Thru Bore
- 9 Spindle Speeds From 70-1400 RPM
- 40 Kinds of Inch Threads From 112-4 TPI
- Automatic Longitudinal and Cross Feeding
- Main Spindle Hardened and Precision Ground
- Bed Made of Fine Grain High Tensile Cast Iron
- Bedways Induction Hardened and Precision Ground
- Splined Shafts In Headstock Hardened and Precision Ground
- Jog Button For Easy Gear Engagement and Inching Spindle
- Emergency Stop Button Located on The Front Of Headstock
- ***No removable gap and inch dial only***
- 6" 3 JAW CHUCK
- 8" 4 JAW CHUCK
- 10" FACE PLATE (OPTIONAL FOR # CT-1440G)
- 3-3/4" STEADY REST
- FOLLOW REST
- 4 WAY TOOL POST
- STANDS
- THREAD CHASING DIAL
- ( 2 ) DEAD CENTERS
- REDUCING SLEEVE
- FULL LENGTH SPLASH GUARD
- CHIP TRAY
- Manufacturer
- Specifications
- Options/Accessories
- Quick Tool Changer
- Halogen Work Light
- Taper Turning Attachment
- 5-C Lever Type Collet Closer
- Custom Freight

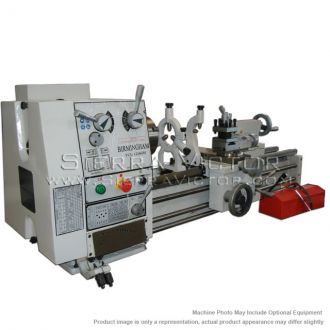

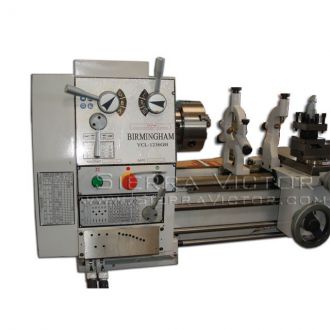

BIRMINGHAM 12" x 36" Precision Geared Head Gap Bed Bench Lathe YCL-1236GH
STANDARD EQUIPMENT:
ITEM: 12" x 36" Precision Geared Head Bench Lathe
MANUFACTURER: BIRMINGHAM
MODEL: YCL-1236GH
Manufacturer:
Birmingham
|
CAPACITIES
|
Max. Swing Over Bed
|
12"
|
|
Distance between Centers
|
36"
|
|
|
Max. Swing Over Carriage
|
7"
|
|
|
Max. Swing in Gap
|
17"
|
|
|
Effective length in gap
|
5"
|
|
|
Width of Bed
|
7-1/4"
|
|
|
HEADSTOCK
|
Spindle Nose
|
D1-4
|
|
Diameter of Spindle thru Bore
|
1-1/2"
|
|
|
Taper of Spindle Center
|
M.T. #5
(reducing sleeve M.T.#5 / M.T.#3) |
|
|
Spindle Speeds, 9 Steps
|
70-1400 RPM, 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM
|
|
|
FEEDS & THREADS
|
Longitudinal feeds
|
.0011" - .0311" / REV., 40 Kinds
|
|
Cross feeds
|
.0004" - .0105" / REV., 40 Kinds
|
|
|
Metric Threads
|
0.2 - 4.5mm, 30 Kinds
|
|
|
Inch Threads
|
112 - 4 TPI, 40 Kinds
|
|
|
CARRIAGE
|
Max. Travel of Cross Slide
|
6-7/8"
|
|
Max. Travel of Top Slide
|
3-3/4"
|
|
|
4 Way Tool Post Capacity
|
3/4" x 3/4"
|
|
|
TAILSTOCK
|
Diameter of Tailstock Quill
|
1-1/4"
|
|
Taper of Tailstock Quill Center
|
M.T. #3
|
|
|
Max. Travel of Tailstock Quill
|
4"
|
|
|
WEIGHT & MOTOR
|
Power of Main Motor
|
2 HP, 220V, 1 Phase
|
|
Overall Dimensions with Stand
|
61" W x 28" L x 50" H
|
|
|
Overall Dimensions without Stand
|
61" W x 28" L x 24" H
|
|
|
Net weight
|
1,250 lbs.
(without stands 1,000 lbs.) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
