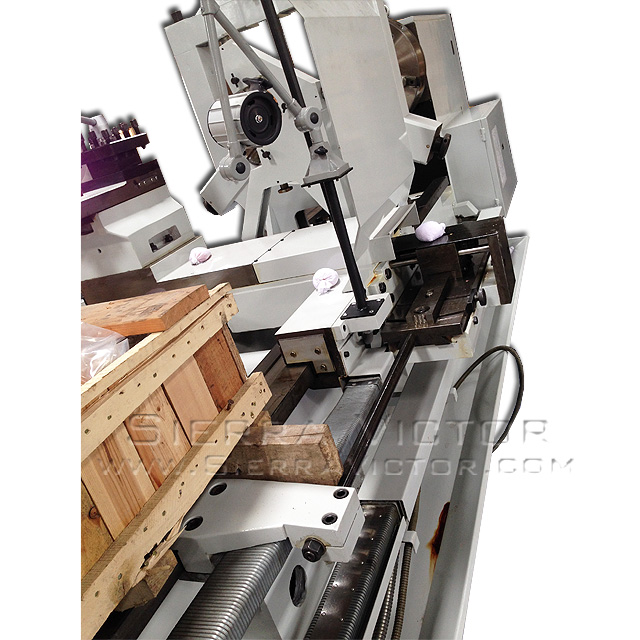

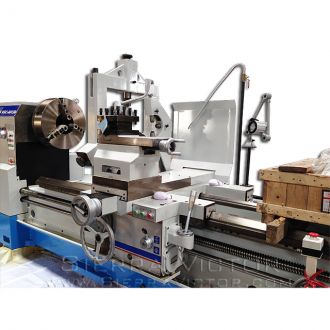

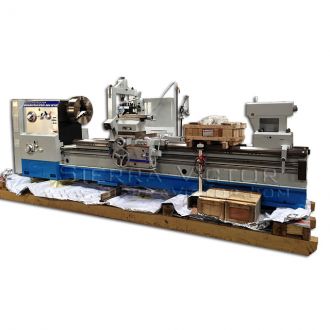

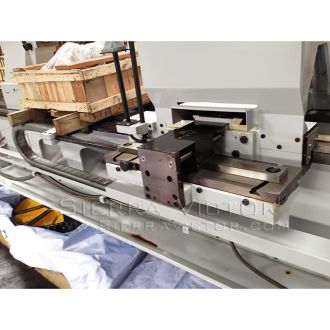

BIRMINGHAM KGC-40120 40" x 120" Horizontal Lathe

40" x 60"+

Availability: Call for Availability

Prices and Inventory are subject to change without notice.
Call or email us to verify prior to order.

* Interest rates based on credit approval and are subject to change.

MODEL	KGC-40120
Max.swing diameter over bed	1030mm (40-1/2")
Max.swing in gap	1200mm (47-1/4")
Swing over cross slide	700mm (27-1/2")
Distance between centers	3000mm (120")
Length in gap from face plate	380 (15")
Spindle nose	C11 or D11
Spindle bore	105mm (4-1/8") or 130mm (5-1/8")
Taper of spindle bore	Metric NO.120 or Metric NO.140
Spindle speeds	10-800rpm
No of spindle speeds	18 steps
Cross slide travel	615mm (24-1/5")
Top rest travel	225mm (8-7/8")
Rapid traverse	Z :3200 (126"/min), X :1400 (55"/min)
Quill diameter	120mm (4-3/4")
Quill travel	270mm (10-5/8")
Quill taper	MT6
Bed width	610mm (24")
Metric threads	1-240mm, 53 kinds
Inch threads	30-2t pi, 31 kinds
Modul threads	0.25-60mm, 46 kinds
Diametral pitch threads	60-1/2 lpi, 47 kinds
Longitudinal feed range	0.07-16.72mm (0.00276"/rev.-0.658"/rev.)
Cross feed range	0.04-9.6mm (0.00157"/rev.-0.378"/rev.)
Main motor power	11kw (15 hp)
Packing size	5310 x 1400 x 2000mm (209" x 55" x 79")
Gross weight/Net weight (Approx)	6400/6900kg (14,110/15,212 lbs)
