- Description
- In 2002, Baileigh broke new ground for Hydraulic Benders with the RDB-150—and we didn’t stop there! Made in the USA, this Pipe Bender model improves on the original with an added auto-stop feature, for even more exacting standards. Why choose the RDB-150-AS over comparable machines? It’s the best buy in hydraulic pipe benders today, designed to make your fabrication shop more efficient. Comes standard with auto-stop to save time and cut down on errors. Accepts quality “drop-on” tooling from Baileigh, providing thousands of options for your application—many more than “sandwiched” tooling could offer. Limitless after-sale support and advice on projects are just a phone call away.

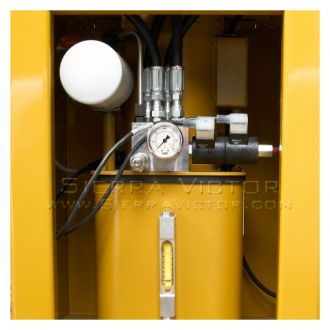

- Powerful low-pressure hydraulic system operates on only 110 volts
- Tackles a maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel
- Executes consistent 180° bends in one fluid motion
- Auto-stop programmer lets you set the desired bend angle for convenient precision and repeatability

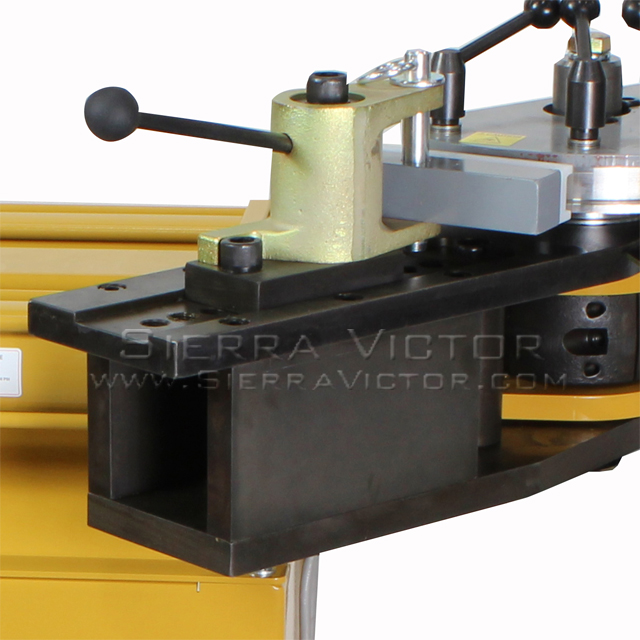

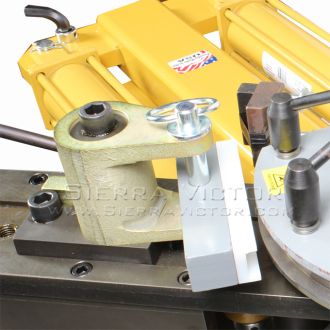

- Quick-release counter die makes for fast loading and unloading

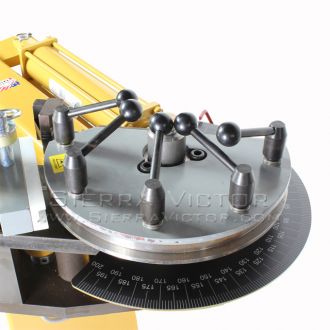

- Easy-to-read degree indicator shows a bend’s progress
- Compact machine includes wheels on the base for convenient storage in small shops
- Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.
- Includes lifetime technical support form from our experienced team of representatives
- Manufacturer
- Specifications

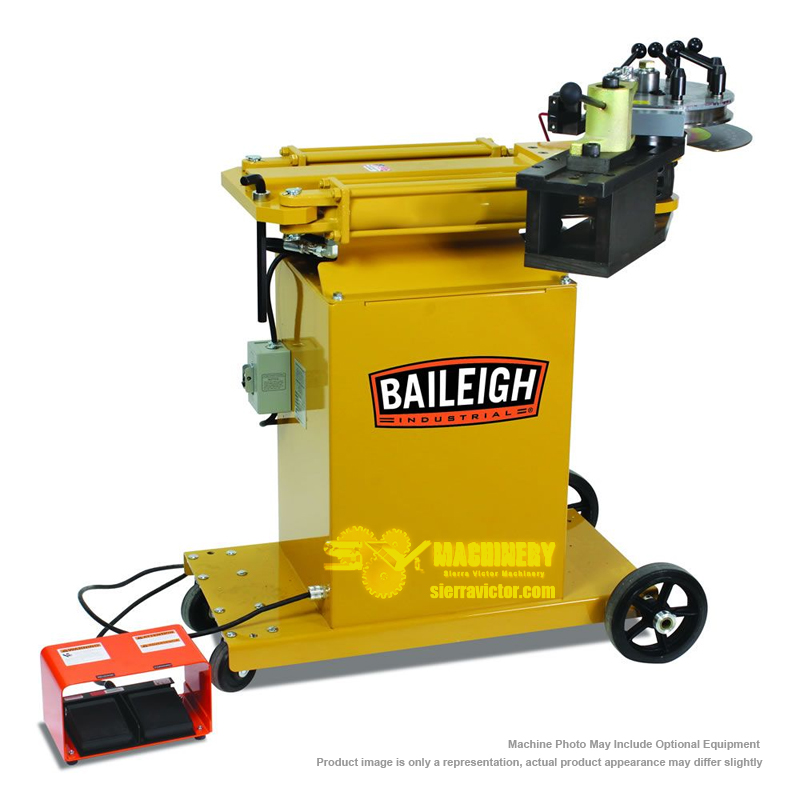

BAILEIGH 2.5 in. Tube and Pipe Bender with Auto-Stop Programmer RDB-150-AS
ITEM: 2.5 in. Tube and Pipe Bender with Auto Stop Programmer
MANUFACTURER: BAILEIGH
MODEL: RDB-150-AS
PART# BA9-RDB150ASB
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Benders
Machine Sub-Category:
Tube & Pipe
Power Source:
Hydraulic
Pipe Sch. 40 Capacity |
2 in. |
Round Tube Capacity |
2.5 in. (.125) |
Chromoly Round Tube |
2 in. (.125) |
Square Tube Capacity |
2 in. (.125) |
Maximum CLR |
8 in. |
Minimum OD |
0.25 in. |
Power |
110v |
Shipping Weight |
610 lbs. |
Shipping Dimensions |
60 x 44 x 77 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
