- Description
- This American-made machine set a new standard in 2002 as the first hydraulic tube bender to bend tube and pipe 180° in one shot. Now we have thousands of RDB-150s in the field—working as well today as they did the day they were made.
- Runs on just 110 volts of power and will work at most fabrication sites in North America.

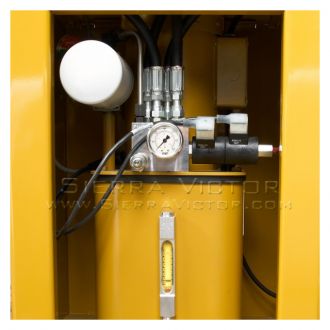

- Rotary draw powered by low-pressure, industrial-grade hydraulic system.
- 8” centerline radius maximum, depending on the outside diameter of the material.
- Bends with a capacity of 2" schedule 40 pipe and up to 2.5" tubing with a wall thickness of .120" mild steel.

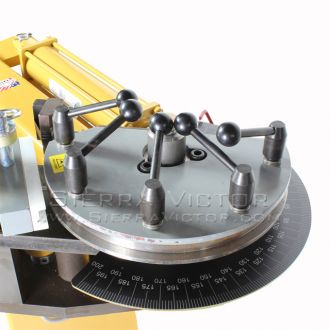

- Easy-to-read degree indicator and adjustable stop to help you achieve correct bend degrees.

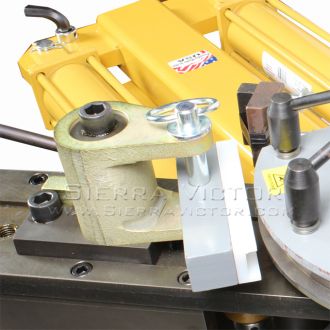

- Quick-release counter die system for hassle-free loading and unloading.
- Includes wheels on the base for smooth movement, helpful for storage in small shops.
- Covered by a 1-year parts warranty and lifetime technical support.
- Why choose the RDB-150 over similar machines?
- Our original, much-imitated twin-cylinder design remains unequaled.
- Small- to medium-sized fabrication shops will save time and money by investing in this hydraulic bender.
- Accepts simple-to-add drop-on tooling from Baileigh—including custom sets on request—giving you thousands of possibilities.
- Our limitless after-sale support means that free advice on projects and applications is always just a call away.
- Manufacturer
- Specifications
- Custom Freight
- Baileigh Sales Tax

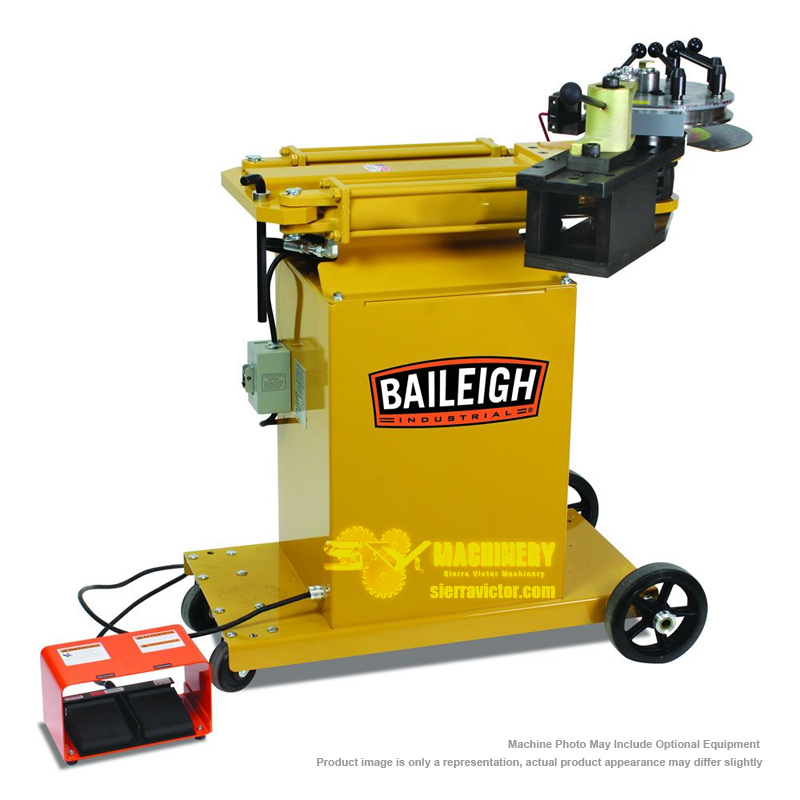

BAILEIGH Tube Bender RDB-150
ITEM: 2-1/2" Hydraulic Rotary Draw Bender
MANUFACTURER: BAILEIGH
MODEL: RDB-150
Manufacturer:
Baileigh Industrial
Country of Manufacture |
United States |
Minimum CLR |
.5" |
Minimum OD |
.25" |
Mild Steel Solid Rod |
1.25" |
Mild Steel Pipe Schedule 40 |
2" |
Mild Steel Round Tube Wall |
2.5" (.125) |
Mild Steel Square Tube (Wall) |
2" (.125) |
Stainless Steel Pipe Schedule 40 |
1.5" |
Stainless Steel Round Tube Wall |
2.375" (.125) |
Chromolly Round Tube Wall |
2" (.125) |
Aluminum Round Tube Wall |
2.5" (.156) |
Maximum Center Line Radius Clr |
9.5" |
Power |
110V |
Special Notes |
tooling not included, contact Sierra Victor Industries 386-304-3720 for correct sizing. |
Shipping Dimensions |
60" x 44" x 68" |
Shipping Weight |
600 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
