- Description
- Built with a welded plate steel frame, this power bead roller can tackle up to 12 gauge mild steel. Equipped with foot pedals, it’s easy to operate and perfect for heavy industrial applications.
- 2 hp motor runs on 220-volt single-phase power.
- Industrial-grade gearbox comes with a brake to maintain accuracy.
- 10” throat depth is suitable for working on the edges of material.
- Foot pedal controls leave your hands free to guide the material. You only need one operator.
- Forward and reverse pedals help with delicate patterns that you want to go over.
- Movable steel plate depth stop provides a solid surface to guide you and produce straight beads.
- Top handle moves the top shaft vertically so that you can easily open it up and get the material in there.

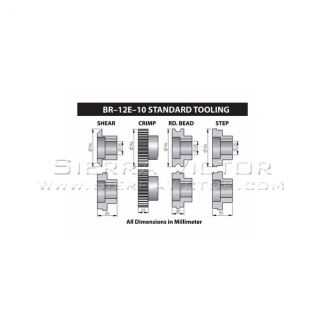

- Includes 4 tooling profiles: round, shear, step, crimp rolls.
- Cabinet built into the base offers convenient storage for tooling.
- Adjustable depth on the bottom lets you get a custom profile by offsetting your rolls.
- Disengage the black handle to push the shaft back and forth and get your offset.
- Robust, fully welded steel frame ensures many years of accurate, reliable metal forming even at maximum capacity.
- Covered by a 1-year parts warranty.
- This industrial bead roller includes lifetime technical support by phone from a team of reps with hands-on metalforming experience.
- Tooling and replacement parts are usually in stock, so we can shop them to you quickly.
- Manufacturer
- Specifications
- Video

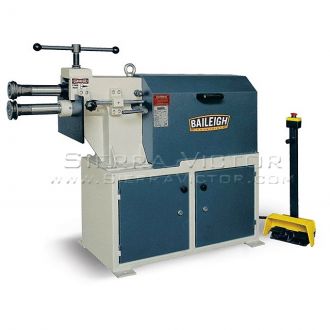

BAILEIGH 12 gauge Heavy Duty Bead Rolling Machine BR-12E-10
ITEM: 12 ga. Heavy Duty Bead Rolling Machine
MANUFACTURER: BAILEIGH
MODEL: BR-12E-10
PART# BA9-1012430
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Beader/Crimper
Metalworking
Mild Steel Capacity:
12 ga
Motor
|
2 HP
|
Max. Thickness (Mild Steel)
|
12 ga.
|
Roll Diameter
|
3.77"
|
Throat Depth
|
11"
|
Stand
|
Included
|
Adjustable Depth Stop
|
Included
|
Power
|
220 Volt, Single Phase
|
Shipping Weight
|
770 lbs.
|
Shipping Dimensions
|
56" x 22" x 45"
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
