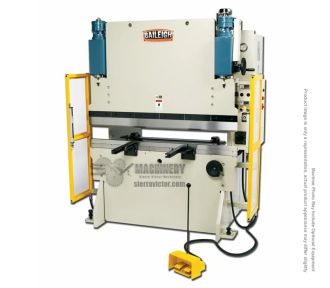

BAILEIGH 50 Ton x 5 ft Hydraulic Sheet Metal Press Brake BP-5060NC

• With its 6,000-pound steel frame, this hydraulic press brake makes crisp bends across its full 61” width. The stroke and back gauge are tied to encoders with DROs for precision.
• Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production
• 2 encoder-controlled hydraulic cylinders move the top beam
• Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time
• It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel)
• You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape
• 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam
• Foot pedal brings the stroke up and down, leaving your hands free to position the material
• Motorized back gauge rides on a solid ball screw trolley mechanism
• Back gauge encoder shows its position on its own DRO
• Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine
• Rigid Structure and Low Maintenance
  • Heavy electro welded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.
  • Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
  • Includes a set of hardened single-Vee American tooling.
  • Accepts standard press brake tooling, giving you a wide variety of options.
  • Comes with front material rests (or support arms), which some competing machines do not include.
  • 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.
  • 4 grease zerks let you add oil every few months.
  • Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.
• Fast Shipping and Lifetime Service
  • Typically, in stock and usually ships in 72 hours.
  • Most replacement parts are in stock at our Wisconsin headquarters, so we can get them to you without delay.
  • Comes covered by a 1-year parts warranty.
  • We provide lifetime technical support by phone. All of our reps have hands-on machine experience. Call us whenever you need help and advice on a project.
• Recommended for: Small industrial shops, maintenance and R&D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake’s width.
