- Description
- Produces up to 33 tons of pressure.
- Bends sheet metal up to 61” wide.
- Maximum capacity of .078” thick sheet metal across the machine’s full width.
- 3 hp main motor requires 220-volt 3-phase power.
- Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
- 2 encoder-controlled hydraulic cylinders move the top beam.
- Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
- It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).
- You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape.
- 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.
- Foot pedal brings the stroke up and down, leaving your hands free to position the material.
- Motorized back gauge rides on a solid ball screw trolley mechanism.
- Back gauge encoder shows its position on its own DRO.
- Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine.
- Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.
- Rugged 3,300-pound construction supports the hydraulic pressure, so the machine stays strong at full capacity.
- Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
- Includes a set of hardened single-Vee American tooling.
- Accepts standard press brake tooling, giving you a wide variety of options.
- Comes with front material rests (or support arms), which some competing machines do not include.
- 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.
- 4 grease zerks let you add oil every few months.
- Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.
- Typically in stock and usually ships in 72 hours.
- Most replacement parts are in stock at our Wisconsin headquarters, so we can get them to you without delay.
- Comes covered by a 1-year parts warranty.
- We provide lifetime technical support by phone. All of our reps have hands-on machine experience. Call us whenever you need help and advice on a project.
- Manufacturer
- Specifications
- Required products

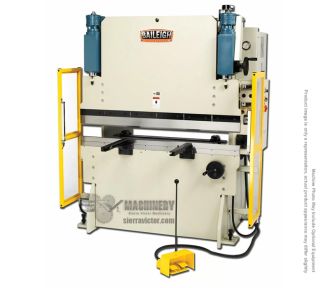

BAILEIGH 33 Ton x 5 ft Press Brake BP-3360NC
Built with a steel frame, this hydraulic press brake runs smoothly in production and makes crisp bends. We designed this machine for simplicity. You can learn to use it in 5 minutes.
Powerful, Easy-to-Use Hydraulic System
Rigid Structure and Low Maintenance
Fast Shipping and Lifetime Service
Recommended for: Small industrial shops, maintenance and R&D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake’s width.
ITEM: 5' (60") 33 Ton Hydraulic Press Brake
MANUFACTURER: BAILEIGH
MODEL: BP-3360 NC
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Press Brakes
Power Source:
Hydraulic
Metalworking
Pressure:
30+ Tons
Material Length:
5 ft (60 in.+)
Maximum Pressure
|
33 Tons
|
Bending Length
|
61”
|
Bending Thickness
|
|
Distance Between Housings
|
49.21”
|
Distance From Table to Ram
|
9.84”
|
Throat Depth (to housing)
|
7.87”
|
Stroke Distance
|
5.9"
|
Approach Speed
|
3.14” / sec.
|
Bending Speed
|
.275” / sec.
|
Return Speed
|
2.36” / sec.
|
Power Back Gauge Length
|
23.62”
|
Main Motor
|
3 hp
|
Back Gauge Motor
|
1/2 hp
|
Voltage
|
220 volt / 3 phase
|
Oil Capacity
|
24 gal
|
Shipping Dimensions (L/W/H)
|
67” / 47.5” / 80.75”
|
Weight
|
3,300 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
