- Description
- Designed with crowning compensation, the BB-9610H Hydraulic Sheet Metal Brake adjusts to fit the gauge you’re bending and produces uniform bends.
- 10-gauge mild steel sheet metal maximum capacity and 1” beam adjustment
- Bends across its full 8-foot (96”) working width
- Maximum bend angle of 135° and maximum 6” box depth
- Industrial-grade hydraulics will make precise and efficient bends, day in, day out, for decades
- 5 hp motor runs on 220-volt 3 phase power
- Hydraulic system clamps the material via dual hydraulic motors, then lifts the bending leaf with industrial hydraulic cylinders
- Adjustable bend auto-stop simplifies production runs - just dial in your desired degree
- Foot pedal and toggle joystick controls let you operate this hydraulic sheet metal brake in manual or semi-automatic mode
- Includes 22 hardened 3-piece fingers (6 of 3", 4 of 4", 10 of 5" and 2 of 6" ) to create many different size boxes
- Fully-welded steel beam and bending leaf, supported with truss rods, prevent twisting and deflection—important when you’re bending heavy 10-gauge mild steel
- Manufacturer
- Specifications

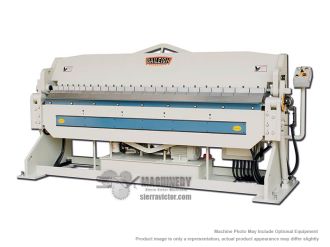

BAILEIGH 8ft x 10 gauge Heavy Duty Hydraulic Box and Pan (Finger) Brake BB-9610H
ITEM: 8ft x 10 ga Heavy Duty Hydraulic Box and Pan (Finger) Brake
MANUFACTURER: BAILEIGH
MODEL: BB-9610H
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Brakes - Box & Pan
Power Source:
Hydraulic
Metalworking
Material Length:
8 ft (96 in.+)
Mild Steel Capacity:
10 ga
Bending Length |
96 in. (8ft) |
Mild Steel Capacity (Gauge) |
10 ga |
Max. Bend (Deg.) |
0 – 135° |
Finger Sizes |
22 hardened 3-piece fingers
(6 of 3", 4 of 4", 10 of 5" and 2 of 6") |
Beam Adjustment (Front to Rear) (In.) |
1 |
Maximum Box Depth (In.) |
6 |
Motor |
5 HP |
Input Power |
220V / 3-phase |
Shipping Dimensions (L/W/H) |
135 x 44 x 71 in. |
Weight |
5,640 lbs. |
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
