- Description
- Maximum bend angle of 135°.
- 1” beam adjustment.
- Made with top-quality industrial-grade hydraulics for reliability over many years of use.
- You can operate the hydraulic system in manual or semi-automatic mode to lift the leaf.
- Programmable-stop bend adjustment makes production runs more efficient and ensures repeatability.
- 3 hp motor controls all hydraulic functions and runs on 220-volt 3-phase power.
- Electric motor attached to a cam lifts and clamps the beam to deliver the extreme pressure required to bend 10 gauge mild steel.
- Includes 17 hardened 3-piece fingers (6 of 3", 3 of 4", 6 of 5", and 2 of 6") to adjust for just about any size box or pan.
- 6” maximum box depth.
- Removable bending apron lets you get closer between bends.
- Fully-welded top beam and bending leaf, stabilized with solid steel support rods, keep deflection and twisting to a minimum when you’re bending at full capacity.
- Baileigh covers this sheet metal finger brake 1-year parts warranty.
- Comes with lifetime technical support by phone. You can call our knowledgeable team of reps for machine help and project advice anytime.
- This metal brake and its replacement parts are always in stock for fast deliveries.
- Manufacturer
- Specifications
- Custom Freight
- Baileigh Sales Tax

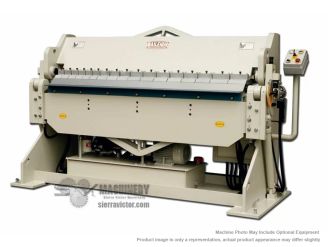

BAILEIGH Hydraulic Box and Pan Brake BB-7210H
The BB-7210H hydraulic sheet metal brake can bend 10 gauge mild steel sheet metal across its full 6-foot (72”) length. It also handles smaller gauges just as easily.
ITEM: 6' x 10 ga Hydraulic Box & Pan Brake
MANUFACTURER: BAILEIGH
MODEL: BB-7210H
Manufacturer:
Baileigh Industrial
Length
|
72"
|
Thickness (SS)
|
10 ga (12 ga)
|
Bend Angle
|
0 – 135 deg.
|
Finger Sizes
|
3" / 4" / 5" / 6"
|
Beam Adjustment
|
1"
|
Min Reverse Bend
|
.984"
|
Box Depth
|
6"
|
Motor
|
5 hp
|
Power Requirement
|
220V / 3-phase
|
Shipping Dimensions (L/W/H)
|
110" / 44" / 69"
|
Shipping Weight
|
5,280 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
