- Description
- Working with thicker materials? This Finger Brake can bend 10 gauge mild steel across its 48" (4-foot) length. A welded steel frame prevents misalignment and ensures accuracy.
- Runs on 220-volt 3-phase power with a powerful 3 hp motor that controls all the hydraulic functions
- 1” beam adjustment
- Maximum bend angle of 135°
- Includes 11 fingers (3 fingers of 3”, 2 of 4”, 5 of 5”, 1 of 6”), allowing you to adjust for different size boxes and pans you want to make
- Industrial-grade hydraulics lift the leaf for clean, precise motion
- You can operate this hydraulic brake in manual or semi-automatic mode
- Hydraulic motor turns a cam to lift and clamp the beam when bending 10-gauge mild steel
- Adjustable bend auto-stop makes it easy to produce repeatable bends
- Removable bending support lets you get closer between bends
- Fully welded beam and bending leaf, stabilized with truss rods, minimizes any deflection when bending at full capacity
- Manufacturer
- Specifications

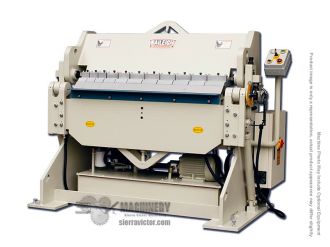

BAILEIGH 48 in. x 10 gauge Hydraulic Box and Pan Finger Brake BB-4810H
ITEM: 48" x 10 ga Hydraulic Box & Pan Finger Brake
MANUFACTURER: BAILEIGH
MODEL: BB-4810H
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Brakes - Box & Pan
Power Source:
Hydraulic
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
10 ga
Bending Length |
48 in. (4ft) |
Mild Steel Capacity (Gauge) |
10 ga |
Max. Bend (Deg.) |
0 – 135° |
Beam Adjustment (in.) |
1 |
Maximum Box Depth (In.) |
6 |
Finger Sizes |
11 fingers
(3 fingers of 3”, 2 of 4”, 5 of 5”, 1 of 6”) |
Motor |
3 HP |
Input Power |
220V / 3-phase |
Shipping Dimensions (L/W/H) |
86 x 50 x 69 in. |
Weight |
3,850 lbs. |
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
