- This versatile ring roller makes a strong starter machine for any fabricator looking to dive into profile bending.
- 220-volt single-phase motor can run at almost any site in North America.
- 2" round tube and 1.5" schedule 40 pipe maximum capacity.
- Ratchet-style manual top shaft allows you to adjust forming pressure.
- Variable-speed inverter drives and industrial-grade transmission provide delicate control over material.
- Executes bends in upright or horizontal positions, to accommodate a range of material lengths.
- Sturdy base opens into a storage cabinet for tooling and other options.
- Comes standard with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
- Manufactured from heavy steel plate to extend machine’s lifetime of use.
- Baileigh covers this tubing roller with a 1-year warranty and lifetime technical support by phone.
- Use this machine for: Coiling tubing, hay hoops, metal art, stair railings, and many other applications.
- Why choose the R-M40 over similar machines?
- You won’t find many roll benders built to the same rugged standards as the R-M40. The steel plate construction of this tube roller maintains accuracy and minimizes flex.
- We stock a wide range of optional tooling for tubing and pipe, as well as other profiles.
- You can call Baileigh’s team of knowledgeable reps for troubleshooting and free project advice for as long as you’re using the R-M40.
- Manufacturer
- Specifications
- Video
- Required products

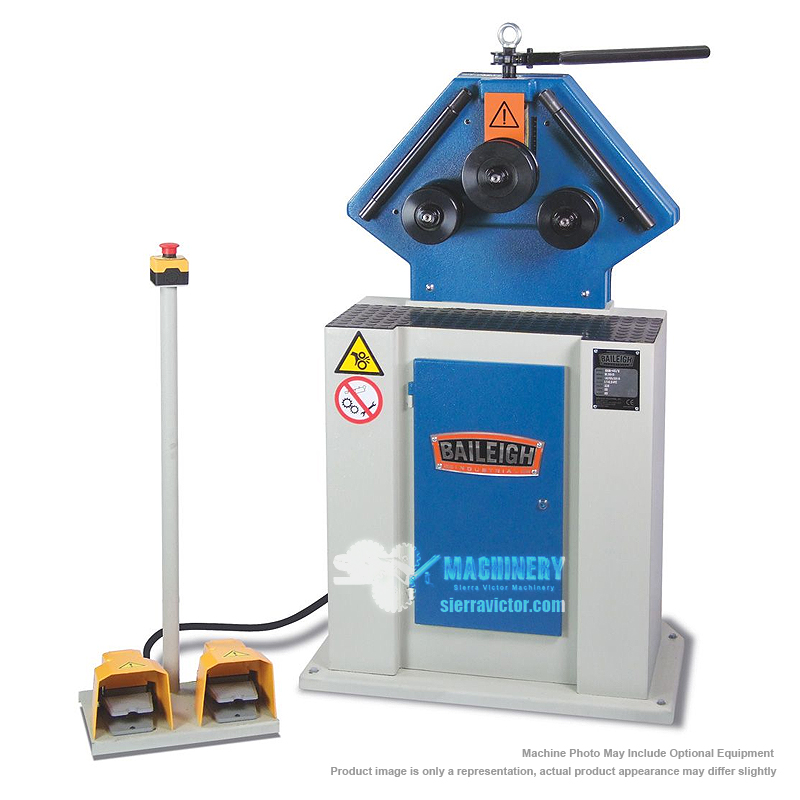

BAILEIGH Ring Roll Machine R-M40
ITEM: Ring Roll Machine
MANUFACTURER: BAILEIGH
MODEL: BA9-1006852
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Benders - Angle Roll
Control:
Manual
|
Roll Adjustment
|
Manual
|
|
Pipe Capacity
|
Size: 1.5" (sch. 40) / Min. Dia.: 28"
|
|
Round Tube Capacity
|
Size: 2" (.078") / Min. Dia.: 27.55"
|
|
Square Tube Capacity
|
Size: 1.5" (.078") / Min. Dia.: 39"
|
|
Solid Round Capacity
|
Size: 1.375" / Min. Dia.: 24"
|
|
Flat Bar Easy Way
|
Size: 3" (.5") / Min. Dia.: 15.75"
|
|
Flat Bar Hard Way
|
Size: 2.25" (.375") / Min. Dia.: 20"
|
|
Angle Iron Capacity
|
Size: 1.5" (.157") / Min. Dia.: 22"
|
|
Shaft Diameter
|
1.181"
|
|
Shaft Center Distance Lower Rolls
|
10.88"
|
|
Lower Roll Dia.
|
5.118"
|
|
Pinch
|
Single
|
|
Material Type
|
All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
|
|
Optional Tooling
|
Some applications may require optional tooling. Please contact Sierra Victor Industries with specific application details.
|
|
Power
|
220 Volt Single Phase
|
|
Shipping Dimensions (L/W/H)
|
60" x 44" x 68"
|
|
Shipping Weight
|
550 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
*All Specs based of 60,000 PSI (42 kg/mm2) Tensile Strength - Mild Steel
**Specs are to be used as a base line for purchase purposes only
