- Description
- When we introduced the R-M55, it redefined quality in roll benders. This tube roller combines efficiency-boosting features with the rugged strength of a steel plate framework.
- Requires just 220 volts of single-phase power and will work in any fabrication shop or even out on job sites.
- Maximum capacity of 2.75" round tubing and 2” schedule 40 pipe.

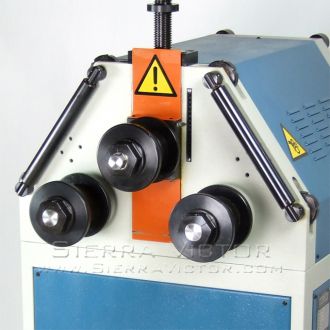

- Manual top-shaft machine with 2 driven rolls (3 rolls total).

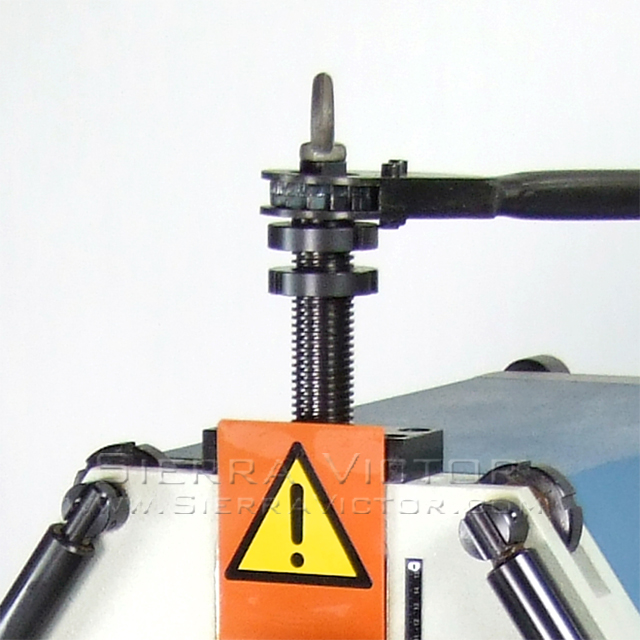

- Large ratchet offers extra leverage for manual control of top roll position.
- You can operate the R-M55 in vertical mode, for small rolling projects, or in horizontal mode, for large rolling projects.
- Variable-speed inverter allows you to finetune the rolling speed for a given material.

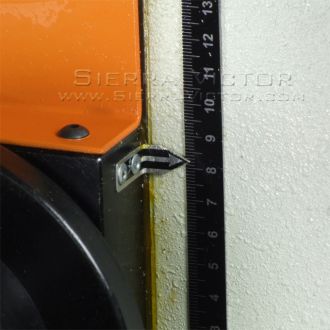

- Easy-to-read scale indicates top roll position, helping you easily make repeatable bends for production runs.
- Includes segment rolls and lateral roll guides to keep material from twisting.

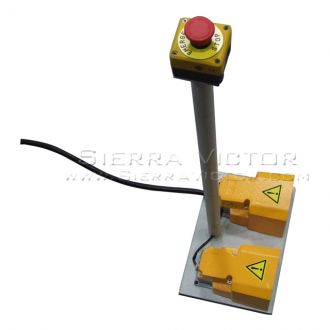

- Foot pedal controls let you conveniently stop and start the bender.
- Accepts optional rolls (available from Baileigh) to bend a variety of profiles like tubing, pipe, angle iron and much more.
- Baileigh backs this tubing roller with a 1-year warranty as well as lifetime technical support by phone.
- Why choose the R-M55 over similar machines?
- Heavy steel construction gives the R-M55 a sturdiness, reliability, and long-wearing accuracy that few competing manual benders can match.
- Inverter protects against overload, prolonging the machine’s lifetime of use.
- You can rely on our team of reps—and their years of direct experience with Baileigh machines—for remote support for as long as you’re using the R-M55. Project advice is always just a phone call away.
- Manufacturer
- Specifications
- Custom Freight
- Video
- Required products
- Baileigh Sales Tax

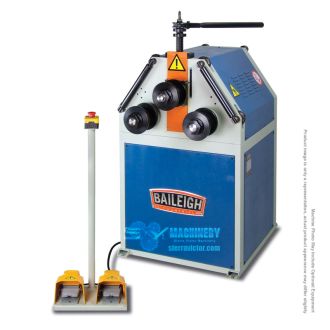

BAILEIGH Ring Roller R-M55
ITEM: Ring Roll Bender
MANUFACTURER: BAILEIGH
MODEL: R-M55
Manufacturer:
Baileigh Industrial
Roll Adjustment |
Manual |
Pipe Capacity |
Size: 2" (sch. 40) / Min. Dia.: 40" |
Round Tube Capacity |
Size: 2.75" (.083") / Min. Dia.: 60" |
Square Tube Capacity |
Size: 2" (.083") / Min. Dia.: 48" |
Solid Round Capacity |
Size: 1.375" / Min. Dia.: 20" |
Flat Bar Easy Way |
Size: 4" (.5") / Min. Dia.: 20" |
Flat Bar Hard Way |
Size: 2.25" (.375") / Min. Dia.: 20" |
Angle Iron Capacity |
Size: 2" (.250") / Min. Dia.: 28" |
Shaft Diameter |
1.968" |
Shaft Center Distance |
13.12" |
Lower Roll Dia. |
5.827" |
Pinch |
Single |
Power |
220V Single Phase |
*Optional Tooling |
Some applications may require optional tooling. Please contact Sierra Victor Industries with specific application details. |
Shipping Dimensions (L/W/H) |
60" x 44" x 68" |
Shipping Weight |
650 lbs. |
Specifications are subject to change without notice.
*All Specs based of 60,000 PSI (42 kg/mm2) Tensile Strength - Mild Steel
**Specs are to be used as a base line for purchase purposes only
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Due to Wayfair ruling from the Supreme Court: Effective 12/1/2018
ALL Baileigh Industrial Distributors are required to collect sales tax on
ALL Baileigh Products in ALL STATES regardless of purchase point
EXCEPT in the following States: AK AZ DE FL KS MO MT NH NY OR VT
If you have a manufacturing tax exemption, please submit with your order.
