- Description
- MADE IN USA
- 1-1/4” Bi-Metal Blade
- Rollers and Carbide Side Blocks
- Vise: Manual, 15”
- Manually Controlled Blade Tension
- Blade Tension Indicator
- Semi-Automatic Operation
- Built-In Coolant System
- 45° Swiveling Vise
- Blade Powered Rotary Cleaning Brush
- TEFC Motors
- Fused Disconnect with Lock-Out
- NFPA-79 Electrics
- Automatic Out-of-Stock Shutdown
- Quick and Easy Blade Speed Change
- Feed Pressure Monitor/Regulator
- All Safety Guards
- Operator Manual and Parts List
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

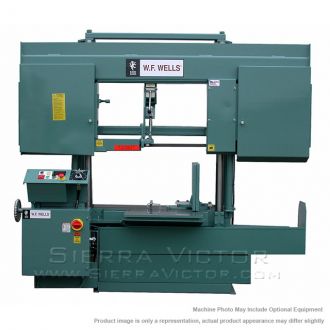

W.F. WELLS 20" Horizontal Cut Off Bandsaw H-2024-1
ITEM: 20" x 24" Horizontal Cut Off Bandsaw
MANUFACTURER: W.F. WELLS
MODEL: H-2024-1
Manufacturer:
WF WELLS
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Chop/Cut-off
Control:
Semi-Automatic
Position:
Horizontal
Metalworking
Saw Capacity:
20"+
Capacity |
90° |
Rectangular |
20” H x 24” W |
Round |
20” Diameter |
||
Weight Capacity |
5,000 lbs |
||
Blade Speed |
60-500 SFPM |
||
Blade Size |
1-1/4” x .042” x 17’-8” |
||
Blade Guide |
Rollers and Carbide Side Blocks |
||
Blade Tension |
Manual with Indicator |
||
Bandwheel Size |
20" |
||
Vise |
Manual, 15" |
||
Blade Drive |
7-1/2 HP, AC Vector Drive |
||
Voltage |
Order Number |
0010815 |
208-60-3 |
0010816 |
230-60-3 |
||
0010817 |
460-60-3 |
||
0010818 |
575-60-3 |
||
Sawing Force |
30-120 lbs |
||
Coolant Capacity |
15 Gallons |
||
Hydraulic Capacity |
3/4 Gallon |
||
Hydraulic Drive |
1/3 HP Motor |
||
Work Height |
26" |
||
Shipping Weight |
2,800 lbs |
||
Electrics |
Wired to NFPA 79 Machine Tool Standards |
||
Ship Dimensions |
101” L x 40” W x 86” H |
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART # |
ITEM |
0056707 |
Automatic Length Stop Assembly |
0056041 |
Discharge Worktable, 20” W x 48” L with Stock Stop |
0056045 |
Discharge Worktable, 24” W x 48” L with Stock Stop |
0052021 |
Work Light, Wired In |
— |
Air Vise, Manual |
— |
Air Holddown, Manual |
0056040 |
Blade Break/Stall Switch |
0056036 |
Electronic Chip Conveyor, Auger Style |
0051045 |
High Speed Drive & Guides (1” Blade) 400-3,000 SFPM |
— |
Free Standing Roller Stock Conveyors, 6” Centers |
0050247 |
21”X 5' X 5,000 lbs Cap. Distributed Weight |
0050250 |
21” X 10' X 10,000 lbs Cap. Distributed Weight |
0056262 |
24” X 5’ X 5,000 lbs Cap. Distributed Weight |
0056263 |
24” X 10’ X 10,000 lbs Cap. Distributed Weight |
0056202 |
Electronic Powered Conveyor 21” X 10' |
— |
24” Powered Conveyor |
