- 1-1/4” Bimetal Blade
- Carbide Guides with Backup Rollers
- Manual Vise Operation
- Manually Controlled Blade Tension
- Blade Tension Indicator
- Semi-automatic Operation
- Built-in Coolant System
- 45° Swiveling Vise
- Blade Powered Rotary Cleaning Brush
- TEFC Motors
- Fused Disconnect with Lockout
- NFPA-79 Electrics
- Automatic End-of-Cut Shut Down
- Quick and Easy Blade Speed Change
- Blade Speed and Work Selector Chart
- Feed Pressure Monitor/Regulator
- All Safety Guards
- Operator Manual and Parts List
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

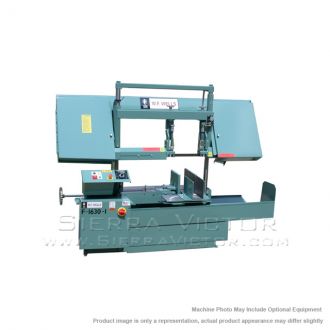

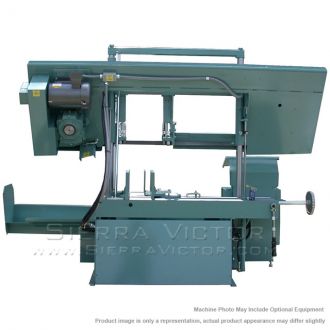

W.F. WELLS 16" Horizontal Cut Off Bandsaw F-1630-1
MADE IN USA
STANDARD EQUIPMENT:
ITEM: 16" x 13" Horizontal Cut Off Bandsaw
MANUFACTURER: W.F. WELLS
MODEL: F-1630-1
Manufacturer:
WF WELLS
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Chop/Cut-off
Control:
Semi-Automatic
Position:
Horizontal
Metalworking
Saw Capacity:
16"+
Capacity |
90° |
Rectangular |
16" High x 30" Wide |
Round |
16" Diameter |
||
Capacity |
45° |
Rectangular |
16" High X 13" Wide |
Round |
13" Diameter |
||
Weight Capacity |
5,000 lbs |
||
Blade Speed Range |
60-500 SFPM |
||
Blade Size |
1-1/4” x .042” x 16' 8" |
||
Sawing Feed |
Variable, Hydraulic |
||
Blade Guides |
Rollers and Carbide Side Blocks |
||
Blade Tension |
Manual with Indicator |
||
Bandwheel Size |
20" |
||
Vise |
Manual, 8-1/2" |
||
Sawing Force |
30-120 lbs. |
||
Voltage |
Order Number |
0010573 |
208-60-3 |
0010574 |
230-60-3 |
||
0010575 |
460-60-3 |
||
0010576 |
575-60-3 (5 HP) |
||
Blade Drive |
7-1/2 HP, 3 PH, AC Vector Drive |
||
Coolant Capacity |
15 Gallons |
||
Hydraulic Capacity |
3/4 Gallon |
||
Hydraulic Drive |
1/3 HP Motor |
||
Work Height |
26" |
||
Shipping Weight |
2,500 lbs |
||
Electrics |
Wired to NFPA 79 Machine Tool Standards |
||
Machine Dimensions |
118" Length x 52" Width x 88" Height |
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
|
PART #
|
ITEM
|
0056704 |
Automatic Length Stop Assembly |
0056025 |
Discharge Worktable, 20" W x 48" L with Stock Stop |
— |
Discharge Worktable, 30" W x 48" L with Stock Stop |
0052016 |
Work Light, Wired In |
0056026 |
Air Vise Manual |
0056037 |
Air Holddown |
0056043 |
Blade Break/Stall Switch |
|
0056023
|
Chip Conveyor, Electric, Auger Style |
0056699 |
High Speed AC Drive (1" Blade) 400-3000 SFPM |
— |
Free Standing Roller Stock Conveyors, 6" Centers |
0050247 |
21" X 5' X 5,000 lbs Cap. Distributed Weight |
0050250 |
21" X 10' X 10,000 lbs Cap. Distributed Weight |
0050258 |
31” x 5’ x 5,000 lbs Cap Distributed Weight |
0050259 |
31” x 10’ x 10,000 lbs Cap Distributed Weight |
0056202 |
21" x 10' Powered Conveyor, Electric |
— |
31” Powered Conveyor |
*Please Call Sierra Victor Industries For Additional Accessories
