- Description
- MADE IN USA
- 2” Bi-Metal Blade
- AC Vector Drive
- Spring Loaded Carbide Guides
- Hydraulic Vise Operation
- Hydraulic Blade Tension
- Semi-Automatic Operation
- Built-In Coolant System
- 45° Swiveling Vise
- Hydraulic Powered Blade Brush
- TEFC Motors
- Fused Disconnect with Lock-Out
- Blade Break/Stall Switch
- Console Controlled Blade Speed
- Feed Pressure Monitor/Regulator
- Low Voltage/Overload Protection
- Electronic Door Safety Interlocks
- Work Lights
- Hydraulic Positioned Guide Arm
- All Safety Guards
- Operator Manual and Parts List
- Blade Tension Indicator
- Blade Break/Stall Switch
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

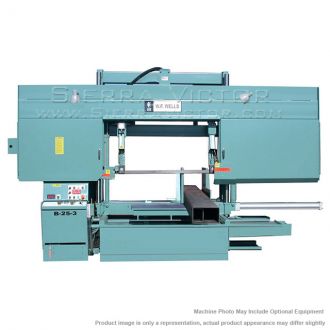

W.F. WELLS 25.5" Semi-Automatic Twin Post Band Saw B-25-3
ITEM: 25" x 40" Semi-Automatic Twin Post Band Saws
MANUFACTURER: W.F. WELLS
MODEL: B-25-3
Manufacturer:
WF WELLS
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Twin Post
Control:
Semi-Automatic
Metalworking
Saw Capacity:
25"+
Capacity |
90° |
Rectangular |
25” High x 40” Wide |
Round |
25.5" |
||
45° |
Rectangular |
25” High x 24” Wide |
|
Round |
— |
||
Weight Capacity |
15,000 lbs |
||
Blade Speed |
60-500 SFPM |
||
Blade Size |
2” x .063” x 26’-6” |
||
Blade Guide |
Spring Loaded Carbide |
||
Blade Tension |
Hydraulic |
||
Bandwheel Size |
26" |
||
Vise |
Hydraulic |
||
Blade Drive |
15 HP, AC Vector Drive |
||
Voltage |
Order Number |
0010706 |
208-60-3 |
0010707 |
230-60-3 |
||
0010708 |
460-60-3 |
||
0010709 |
575-60-3 |
||
Sawing Force |
0-1,000 lbs |
||
Coolant Capacity |
15 Gallons |
||
Hydraulic Capacity |
20 Gallons |
||
Hydraulic Drive |
5 HP Motor |
||
Work Height |
28" |
||
Outfeed Table |
24” x 40” |
||
Vise Jaw Height |
17" |
||
Shipping Weight |
7,000 lbs |
||
Electrics |
Wired to NFPA 79 Machine Tool Standards |
||
Machine Dimensions |
170” Length x 55" Width x 100" Height |
||
Ship Dimensions |
55” L x 156” W x 98” H |
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART # |
ITEM |
0056073 |
Discharge Worktable 40" Wide x 56" Long |
0056081 |
Hydraulic Chip Conveyor, Auger Style |
0056064 |
Hydraulic Holddown, Saw Vise |
0056075 |
Outboard Vise with Hydraulic Holddown |
0056074 |
Outboard Vise |
— |
Free Standing Control Console |
— |
High Speed Drive & Guides (1-1/2” Blade) 500-3000 SFPM |
0056200 |
Hydraulic Powered Conveyor 40" x 10' |
0056198 |
Non-Powered Conveyor 40" x 5' |
0056199 |
Non-Powered Conveyor 40" x 10' |
— |
B-25-3 with Automatic Barfeed see B-25-3A3 CNC |
